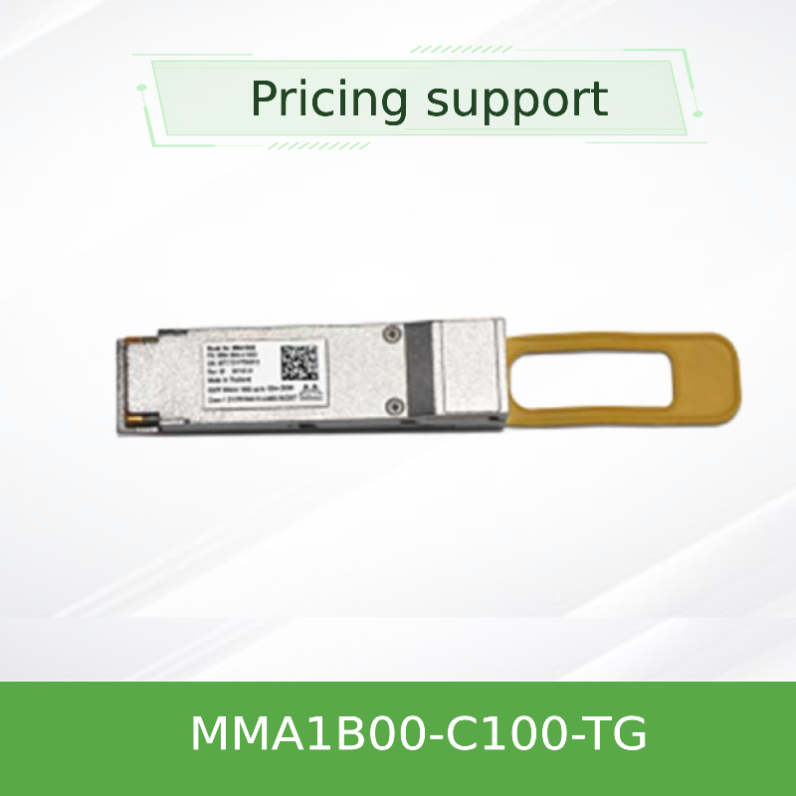

New Original Mellanox Transceiver MMA1b00-C100-Tg 100gbe Qsfp28 up to 100m, Ddmi
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MMA1B00-C100-TG |
| Document: | MMA1B00.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MMA1b00-C100-Tg | Operating Temperature: | 0℃ - 70℃ |
|---|---|---|---|
| Shape: | Cuboid | Technics: | Cmis |
| Technology: | Ib And Eth Support | Trademark: | Mellanox |
| Origin: | India / Israel / China | Specification: | MMA1b00-C100-Tg |
| Highlight: | MMA1b00-C100-Tg 100Gbe,100Gbe Qsfp28 100m |
||
Product Description
Mellanox MMA1B00-C100-TG 40GbE QSFP+ SR4 Optical Transceiver
The Mellanox MMA1B00-C100-TG is a high-performance, 40GbE QSFP+ SR4 optical transceiver designed for reliable and efficient data transmission in high-speed network environments. This advanced fiber optic solution supports distances up to 150 meters over OM4 multi-mode fiber optic cable and features digital diagnostic monitoring (DDM), low power consumption, and hot-pluggability. Ideal for data centers, enterprise networks, and high-performance computing applications requiring robust fiber optic infrastructure.
Key Features:
- 40GbE Ethernet (4x10GbE) over multi-mode fiber optic cable
- Digital Diagnostic Monitoring (DDM) for real-time performance tracking
- Hot-pluggable QSFP+ form factor
- Low power consumption: 1.3W typical
- Compliant with IEEE 802.3ba, SFF-8436, and RoHS standards
Technology
The MMA1B00-C100-TG transceiver utilizes advanced VCSEL (Vertical Cavity Surface Emitting Laser) technology operating at 850nm wavelength. This high-quality fiber optic solution complies with industry standards including IEEE 802.3ba 40GBASE-SR4, SFF-8436, and SFF-8636 for I²C management. The device supports programmable Tx equalization and Rx output control for optimized signal integrity across your fiber optic network infrastructure.
Working Principle
The MMA1B00-C100-TG converts electrical signals into optical signals using four independent 10.3125 Gb/s channels. These signals are transmitted over a parallel multi-mode fiber optic cable via an MPO connector. The receiver side converts the optical signals back to electrical data, ensuring high-speed, low-latency communication with minimal bit error rate (BER < 1E-15). This passive fiber cable technology ensures reliable data transmission in demanding network environments.
Applications
- Data center interconnects and spine-leaf architectures
- High-performance computing (HPC) clusters
- Enterprise network aggregation
- Cloud infrastructure and server farms
- Storage area networks (SANs) and fiber optic backbones
Specifications
| Parameter | Value |
|---|---|
| Model Number | MMA1B00-C100-TG |
| Data Rate | 40 Gb/s (4x10.3125 Gb/s) |
| Wavelength | 850 nm |
| Max Distance | 150m (OM4), 100m (OM3) |
| Fiber Type | Multi-mode Fiber Optic Cable |
| Connector Type | MPO |
| Power Consumption | 1.3W (Typical) |
| Operating Temperature | 0°C to 70°C |
| Diagnostic Monitoring | Digital Diagnostic Monitoring (DDM) |
| Compliance | RoHS, IEEE 802.3ba, SFF-8436 |
Advantages
- Lower power consumption compared to competitive optical transceivers
- Advanced DDM capabilities for proactive network management
- High compatibility with Mellanox switches and industry-standard hardware
- Rigorous testing ensures reliability and long-term performance
- Superior quality fiber optic connectivity for demanding environments
Service & Support
We offer a 1-year warranty on all Mellanox optical transceivers. Our technical team provides 24/7 support for installation, configuration, and troubleshooting of your fiber optic infrastructure. Bulk order discounts and fast shipping available for all fiber optic cable and transceiver needs.
Frequently Asked Questions
Q: What type of fiber optic cable is compatible with the MMA1B00-C100-TG transceiver?
A: It is compatible with OM3 and OM4 multi-mode fiber optic cable solutions.
Q: Is the transceiver hot-pluggable?
A: Yes, this fiber optic transceiver supports hot-plugging for easy installation and maintenance.
Q: Does it support digital diagnostics?
A: Yes, it provides DDM for monitoring voltage, temperature, TX/RX power, and bias current.
Q: What is the maximum distance supported by this transceiver?
A: It supports up to 150m on OM4 fiber optic cable and 100m on OM3 fiber.
Q: Is this compatible with non-Mellanox equipment?
A: While optimized for Mellanox systems, it's designed to work with standard QSFP+ ports across various brands.
Precautions
- Avoid exposing the transceiver to static electricity or physical shock
- Ensure compatible fiber optic cable and connectors are used to prevent damage
- Do not exceed maximum operating temperature or humidity ranges
- Verify compatibility with host equipment before installation
- Always use protective caps when the transceiver is not connected to fiber optic cable
- Follow proper handling procedures for all fiber optic components
