Mellanox Mam1q00A-Qsa28 Nvidia Dynamix Qsa™ Qsa28, Qsfp28 to SFP28 Adapter
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MAM1Q00A-QSA28 |
| Document: | MAM1Q00A-QSA.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MAM1Q00A-QSA28 | Shape: | Cuboid |
|---|---|---|---|
| Power: | Single 3.3V Power | Dynamix Qsa: | Qsfp+ To SFP+ |
| Operating Temperature: | 0℃ - 70℃ | Technics: | Cmis |
| Technology: | Ib And Eth Support | Trademark: | Mellanox |
| Highlight: | Dynamix Mellanox MAM1Q00A-QSA28 |
||
Product Description

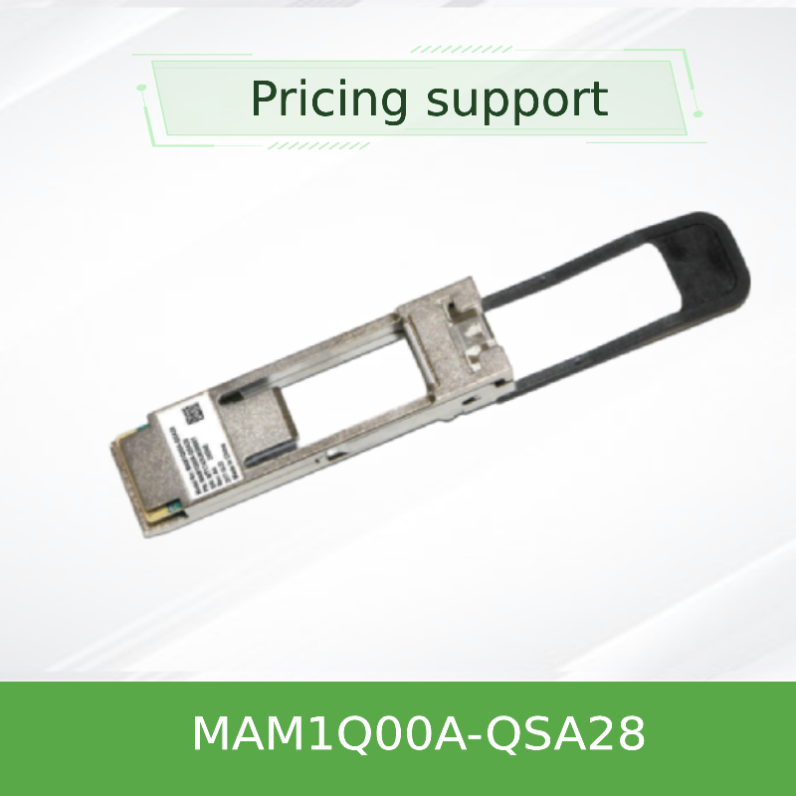

Mellanox DynamiX QSA Adapter - MAM1Q00A-QSA
Universal Connectivity Solution for Hybrid Networks
The Mellanox DynamiX QSA™ adapter enables seamless interoperability between QSFP+ ports and SFP+/SFP transceivers or cables, providing a cost-effective solution for network infrastructure flexibility. This innovative adapter converts quad-lane QSFP+ interfaces to single-lane SFP+ connections, allowing organizations to leverage existing SFP+ equipment while transitioning to higher-density 40GbE infrastructure. With industry-leading signal integrity and vendor-agnostic compatibility, this adapter eliminates the need for costly equipment replacements during network upgrades.
Key Value Propositions:
- Enables connection between QSFP+ ports and SFP+/SFP equipment
- Reduces migration costs by utilizing existing SFP+ infrastructure
- Maintains signal integrity with low insertion loss design
- Vendor-agnostic compatibility with all major optical module manufacturers
- Compliant with SFF-8436, SFF-8418, and SFF-8419 standards
Technical Specifications
| Parameter | Minimum | Typical | Maximum | Units |
|---|---|---|---|---|
| Supply Voltage | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | - | - | 0.1 | W |
| Operating Temperature (Standard) | 0 | - | 70 | °C |
| Operating Temperature (Extended) | -10 | - | 85 | °C |
| Characteristic Impedance | 90 | 100 | 110 | Ω |
Compatibility & Applications
The DynamiX QSA adapter provides essential connectivity solutions for diverse network environments:
- Connecting 40GbE QSFP+ switch ports to 10GbE SFP+ NICs
- Integrating legacy SFP+ equipment into modern QSFP+ infrastructure
- Data center migration and consolidation projects
- Hybrid network environments with mixed vendor equipment
- Test and development labs requiring interface flexibility
Technical Design Features
The adapter incorporates several advanced design elements ensuring reliable performance:
| Feature | Benefit |
|---|---|
| SFF-8636 Compliant I²C Management | Direct access to SFP transceiver memory for monitoring |
| Secure Latching Mechanism | Prevents accidental disconnection in operational environments |
| Impedance Matched Design | Minimizes signal reflection and ensures data integrity |
| Enhanced SFP+ Mating Protection | Prevents damage from incorrect insertion attempts |
Frequently Asked Questions
Q: Which lane of the QSFP+ port does the adapter utilize?
A: The adapter uses lane 1 of the QSFP+ connector, with the remaining three lanes unconnected.
Q: Is this adapter compatible with all SFP+ transceivers?
A: Yes, the adapter works with all MSA-compliant SFP+ and SFP transceivers from major manufacturers.
Q: What is the difference between standard and extended temperature models?
A: The extended temperature model (MAM1000A-QSA_E) operates from -10°C to 85°C, while the standard model operates from 0°C to 70°C.
Q: Does the adapter require external power?
A: No, the adapter operates passively without external power requirements.
Installation Guidelines
- Ensure SFP+ mating paddle card dimension A10 is greater than 6.0mm
- Verify correct orientation before insertion to prevent damage
- Check operating temperature ranges for standard vs. extended models
- Confirm compatibility with specific equipment before deployment
- Follow ESD protection procedures during handling
Warranty & Support
All DynamiX QSA adapters include a 1-year limited hardware warranty covering parts repair or replacement. Technical support is available to assist with integration challenges and compatibility verification.
