Mellnaox Brand New Original Mam1q00A-Qsa Nvidia Dynamix Qsa™ , Qsfp+ to SFP+ Adapter
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MAM1Q00A-QSA |
| Document: | MAM1Q00A-QSA.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MAM1Q00A-QSA | Shape: | Cuboid |
|---|---|---|---|
| Power: | Single 3.3V Power | Dynamix Qsa: | Qsfp+ To SFP+ |
| Operating Temperature: | 0℃ - 70℃ | Technics: | Cmis |
| Technology: | Ib And Eth Support | Trademark: | Mellanox |
| Highlight: | Qsfp+ to SFP+ Adapter,Brand New Mellnaox Qsa™,Mellnaox Mam1q00A-Qsa |
||
Product Description

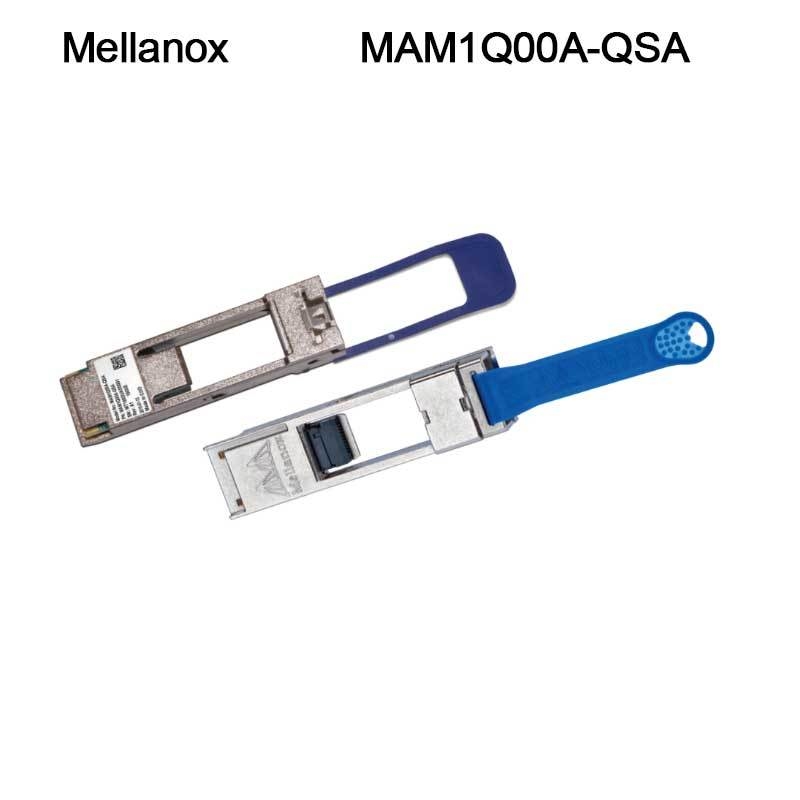

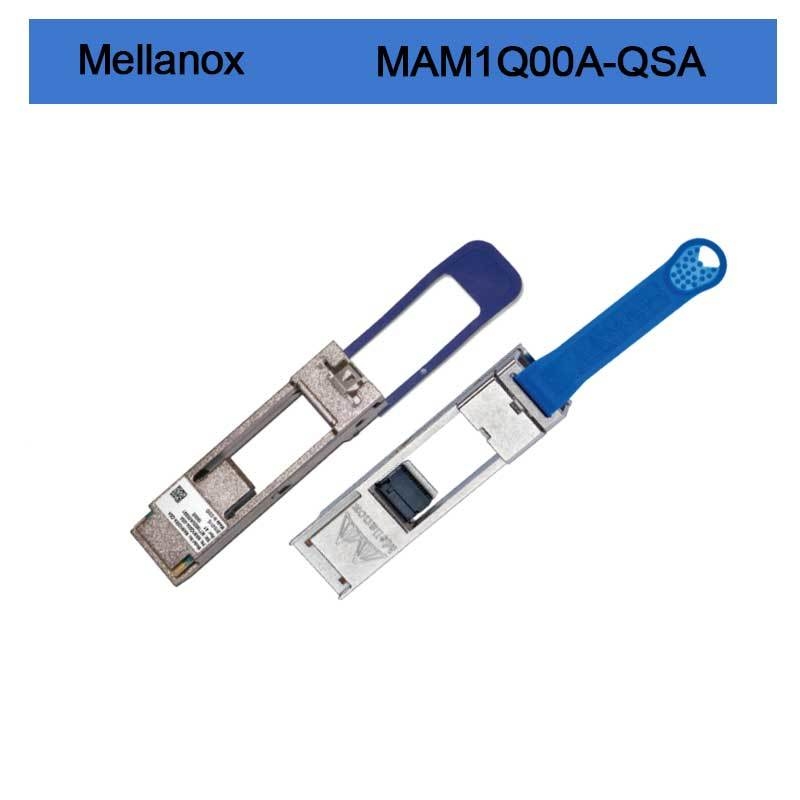

Mellanox DynamiX QSA Adapter - MAM1Q00A-QSA
Universal Interface Converter for Modern Data Centers
The Mellanox DynamiX QSA™ adapter (MAM1Q00A-QSA) provides a sophisticated interoperability solution that bridges QSFP+ ports with SFP+/SFP transceivers and cables. This innovative adapter enables network architects to maximize infrastructure investments by seamlessly integrating legacy 10GbE SFP+ equipment with modern 40GbE QSFP+ infrastructure. Engineered with precision impedance matching and minimal signal loss, this adapter ensures reliable high-speed data transmission while reducing migration costs.
Core Value Propositions:
- Enables seamless connectivity between QSFP+ ports and SFP+ equipment
- Reduces infrastructure costs by extending the lifecycle of existing SFP+ assets
- Maintains signal integrity with precisely matched impedance design
- Vendor-agnostic compatibility with industry-standard optical modules
- Compliant with SFF-8436, SFF-8418, and SFF-8419 specifications
Technical Specifications
| Parameter | Minimum | Typical | Maximum | Units |
|---|---|---|---|---|
| Supply Voltage | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | - | - | 0.1 | W |
| Operating Temperature (Standard) | 0 | - | 70 | °C |
| Characteristic Impedance | 90 | 100 | 110 | Ω |
| Data Rate Support | 1 Gb/s | 10 Gb/s | 10.5 Gb/s | Per Lane |
Applications & Deployment Scenarios
The MAM1Q00A-QSA adapter provides critical interface conversion for diverse networking environments:
- Connecting 40GbE QSFP+ switch ports to 10GbE SFP+ network interface cards
- Integrating legacy SFP+ equipment into modern QSFP+ infrastructure
- Data center migration and infrastructure consolidation projects
- Hybrid network environments with multi-vendor equipment compatibility
- Test and development laboratories requiring interface flexibility
- Telecommunications infrastructure supporting multiple interface standards
Technical Design Features
| Feature | Technical Benefit |
|---|---|
| SFF-8636 Compliant I²C Management Interface | Direct access to SFP transceiver memory for performance monitoring |
| Secure Latching Mechanism | Prevents accidental disconnection in high-vibration environments |
| Precision Impedance Matching | Minimizes signal reflection and ensures data integrity |
| Enhanced SFP+ Insertion Protection | Prevents damage from incorrect insertion attempts |
| Low Insertion Loss Design | Maintains signal strength across the connection interface |
Frequently Asked Questions
Q: Which specific lane of the QSFP+ port does the adapter utilize?
A: The adapter exclusively utilizes lane 1 of the QSFP+ connector, with the remaining three lanes intentionally left unconnected.
Q: Is the MAM1Q00A-QSA compatible with third-party SFP+ transceivers?
A: Yes, the adapter maintains full compatibility with all MSA-compliant SFP+ and SFP transceivers from major manufacturers.
Q: What distinguishes the extended temperature model from the standard version?
A: The extended temperature variant (MAM1000A-QSA_E) supports operation from -10°C to 85°C, compared to the standard model's 0°C to 70°C range.
Q: Does this adapter require external power or configuration?
A: No, the adapter operates completely passively without requiring external power or software configuration.
Q: What is the warranty coverage for this product?
A: The adapter includes a comprehensive 1-year limited hardware warranty covering parts repair or replacement.
Installation Guidelines

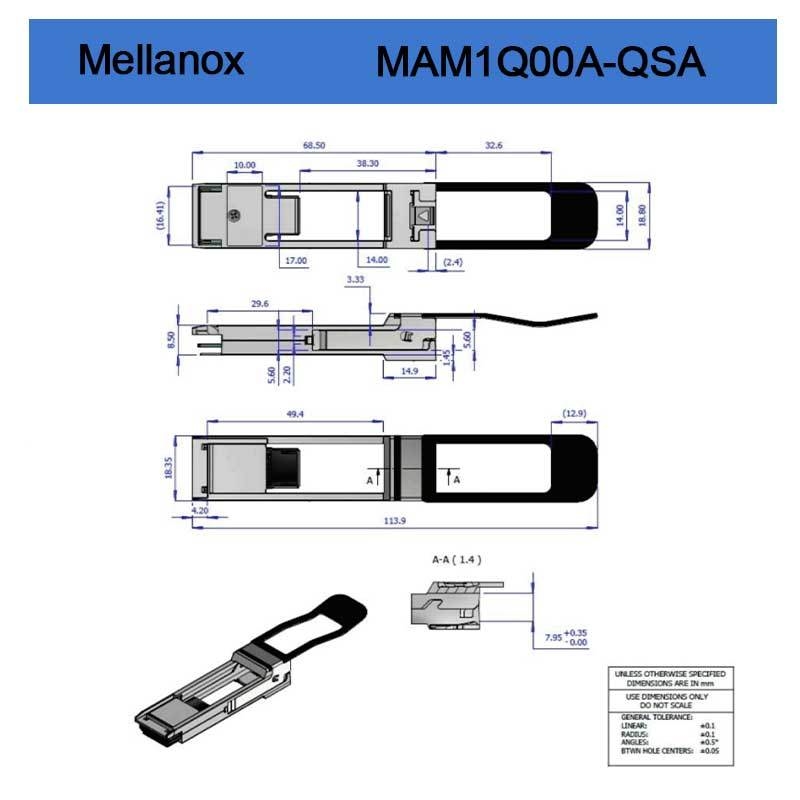

- Verify SFP+ mating paddle card dimension A10 exceeds 6.0mm specification
- Confirm correct orientation before insertion to prevent mechanical damage
- Ensure operating environment remains within specified temperature ranges
- Validate compatibility with specific network equipment before deployment
- Implement proper ESD protection procedures during handling and installation
- Regularly inspect connectors for debris or damage before mating
