Ewp-Wa6522h-Li-Fit Wireless Access Point Advanced H3c Wireless Ap Ewp-Wa6522h-Li-Fit H3c Wireless Solution
Product Details:
| Brand Name: | H3C |
| Document: | WA6522H-EI.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | Ewp-Wa6522h-Li-Fit | WiFi Antenna Type: | Built-in |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 12.95 |
| Antenna Gain: | 21dBm | Color: | White |
| Transport Package: | Carton | Specification: | 86mm× 86mm× 48.2mm |
| Trademark: | H3c | Origin: | China |
| Highlight: | H3C Access Point,H3C Wireless AP Solution,H3C Wireless Access Point |
||
Product Description

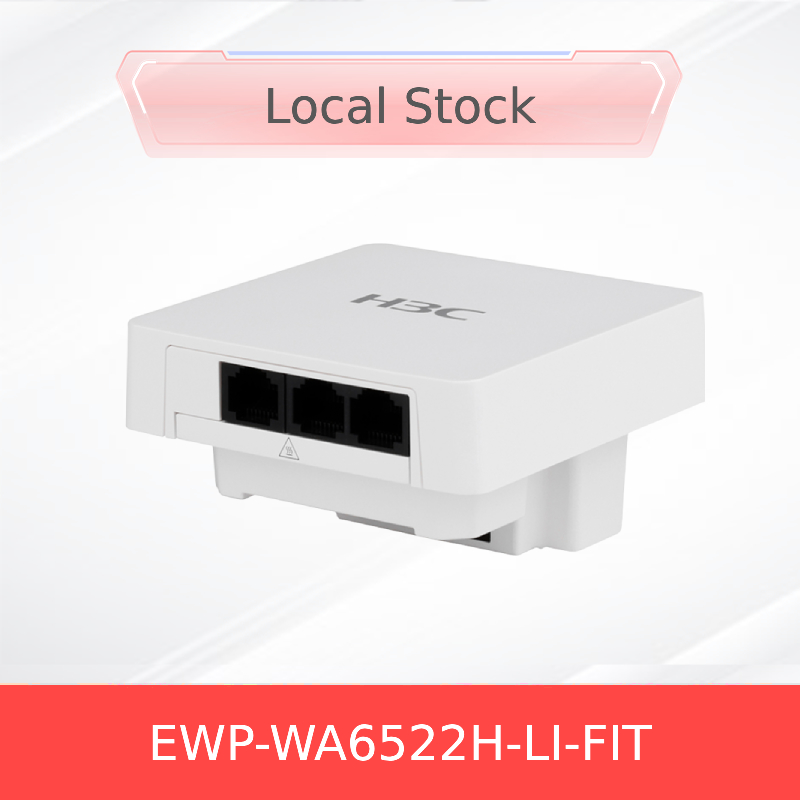

H3C EWP-WA6522H-LI-FIT Enterprise-Grade Wi-Fi 6 Access Point
The H3C EWP-WA6522H-LI-FIT represents the next generation of indoor wireless connectivity, combining Wi-Fi 6 (802.11ax) technology with intelligent management capabilities. This panel-mounted access point delivers exceptional performance with dual-band 2x2:2 MU-MIMO support, achieving combined rates up to 2.975 Gbps. Engineered for high-density environments, it features advanced radio optimization, cloud management compatibility, and robust security protocols including WPA3 encryption.
Distinguishing Characteristics
- Wi-Fi 6 Performance: 2.4 GHz (575 Mbps) and 5 GHz (2.4 Gbps) bands with 2x2:2 MU-MIMO
- Flexible Deployment: Supports Fit, Cloud, and Doctor AP operational modes
- Advanced RF Management: Automatic channel selection, power adjustment, and interference detection
- Enhanced Security: WPA3, MAC authentication, Portal, and 802.1X support with built-in WIPS
- IoT Ready: Integrated BLE 5.1 for location services and IoT expansion
- Simplified Installation: Standard 86mm panel box mounting with PoE support
Technical Architecture
This Wi-Fi 6 access point implements cutting-edge wireless technologies including Orthogonal Frequency Division Multiple Access (OFDMA) for efficient multi-user data transmission, Basic Service Set (BSS) Coloring for interference reduction, and Target Wake Time (TWT) for improved power efficiency. It supports H3C's Intelligent Application Assurance (wIAA) for service prioritization and features comprehensive roaming support through 802.11k/v/r protocols.
Operational Methodology
The EWP-WA6522H-LI-FIT access point operates through sophisticated radio resource management that continuously monitors network conditions. It automatically adjusts transmission parameters including channel selection, bandwidth allocation, and power levels to optimize performance. The device employs application recognition technology to identify and prioritize critical traffic while implementing quality of service policies across multiple SSIDs and user groups.
Implementation Scenarios
This enterprise-grade Wi-Fi 6 access point is ideally suited for:
- Corporate offices and open workspace environments
- Educational institutions and smart classroom deployments
- Healthcare facilities requiring reliable connectivity
- Hospitality venues including hotels and conference centers
- Retail establishments supporting digital customer experiences
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | EWP-WA6522H-LI-FIT |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Aggregate Throughput | Up to 2.975 Gbps |
| MIMO Configuration | 2x2:2 (Dual-band) |
| Ethernet Interfaces | 1x 10/100/1000M uplink, 4x 10/100/1000M LAN |
| Power Method | 802.3af PoE |
| Antenna Type | Internal omnidirectional |
| Bluetooth | Integrated BLE 5.1 |
| Dimensions | 86 × 86 × 48.2 mm |
| Operating Conditions | 0°C to 40°C, 5% to 95% humidity |
Competitive Advantages
- Superior Wi-Fi 6 performance with OFDMA and MU-MIMO technology
- Multiple management options including cloud-based administration
- Comprehensive security suite with WPA3 and wireless intrusion prevention
- Application-aware traffic optimization for quality of service
- Space-saving design with effortless installation in standard electrical boxes
Support Services
We provide complete technical support, warranty coverage, and integration services. Our team offers 24/7 consultation and rapid shipment from extensive inventory stocks. Custom configuration and volume pricing available for enterprise deployments.
Frequently Asked Questions
Q: Can this access point operate without a dedicated wireless controller?
A: Yes, it supports both controller-based (Fit) and standalone (Cloud) deployment modes.
Q: What is the maximum number of concurrent users supported?
A: The capacity varies based on environment and usage patterns, typically supporting 50+ users per radio.
Q: Does the device support Power over Ethernet?
A: Yes, it is compatible with standard 802.3af PoE switches or injectors.
Q: Can it monitor wireless network performance?
A: Yes, the Doctor AP mode enables RF scanning and network diagnostics.
Installation Considerations
- Ensure adequate ventilation around the device during installation
- Verify compatible PoE infrastructure for power requirements
- Complies with FCC Part 15, EN 300 328, and CE regulatory standards
- Perform site survey for optimal placement and coverage planning
