MFS1S00-H020V(980-9I45T-00H020) Mellanox Aoc Cable Ethernet 200GbE QSFP56 Active Optical Cable infiniband cables
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H020V(980-9I45T-00H020) |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 15 Meters |
| Product: | MFS1S00-H020V(980-9I45T-00H020) | ||
| Highlight: | MFS1S00-H020V Mellanox Aoc,200GbE Mellanox Aoc,Mellanox Aoc Network Cable |
||
Product Description

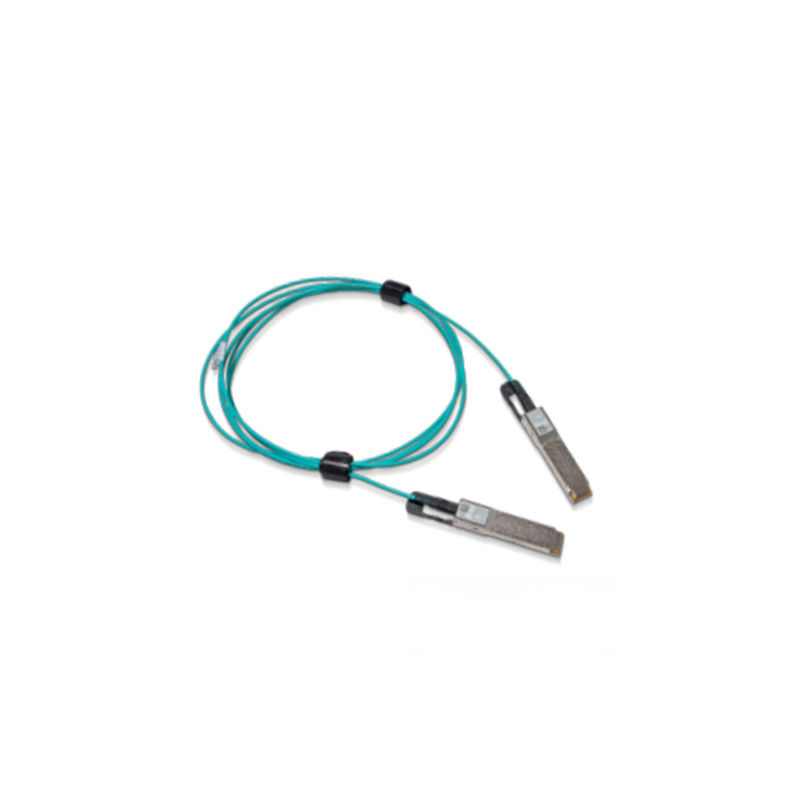

MFS1S00-H020V 200Gb/s QSFP56 Active Optical Cable (AOC)
1. Product Overview
The MFS1S00-H020V is a high-performance 200Gb/s QSFP56 Active Optical Cable (AOC) designed for next-generation data center interconnects. It supports both InfiniBand HDR and 200 Gigabit Ethernet, delivering exceptional bandwidth, low latency, and extended reach up to 100 meters. This Optical Fiber Cable is ideal for high-density server and switch interconnections, offering superior reliability and power efficiency.
2. Key Characteristics
- Supports 200Gb/s InfiniBand HDR and 200GbE
- Hot-pluggable QSFP56 form factor
- Up to 100m reach over multi-mode fiber
- Low power consumption: 5.0W typical per end
- RoHS compliant and SFF-8636 management interface
- Built-in digital diagnostics monitoring (DDM)
3. Technology & Standards
This passive fiber cable alternative leverages VCSEL-based optical technology and complies with industry standards including SFF-8665, SFF-8636, and InfiniBand HDR. It uses PAM4 modulation for high-speed data transmission and supports advanced features like lane-by-lane retiming and programmable equalization.
4. Working Principle
The AOC converts electrical signals into optical signals using integrated VCSEL transceivers at each end. Data is transmitted over four multi-mode fibers, each operating at 50Gb/s. The cable includes built-in signal retiming and conditioning to ensure signal integrity over extended distances.
5. Applications
- InfiniBand HDR clusters
- 200GbE switch interconnects (e.g., SN3700 to SN4600)
- High-performance computing (HPC) environments
- Cloud data center networking
- AI and machine learning infrastructure
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Data Rate | 200Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Length | 20m |
| Power Consumption | 5.0W (typical) |
| Operating Temperature | 0°C to 70°C |
7. Advantages & Selling Points
- Higher bandwidth and longer reach than passive copper cables
- Lower power consumption per port
- Hot-pluggable for easy deployment and maintenance
- Robust diagnostic capabilities for proactive monitoring
- Compatible with major switch and server platforms
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and a comprehensive warranty. Our team provides pre-sales consultation and post-sales troubleshooting to ensure seamless integration and operation.
9. Frequently Asked Questions (FAQ)
Q: What is the maximum distance supported by this AOC?
A: Up to 100 meters using multi-mode fiber.
Q: Is this cable compatible with 100GbE systems?
A: Yes, it supports backward compatibility with 100GbE using rate select features.
Q: Does it require external power?
A: No, it is powered directly through the QSFP56 port.
10. Precautions
- Avoid bending the cable beyond a 30mm radius.
- Ensure ESD precautions during handling and installation.
- Verify compatibility with host system firmware and hardware.
- Do not remove protective caps until ready to install.
