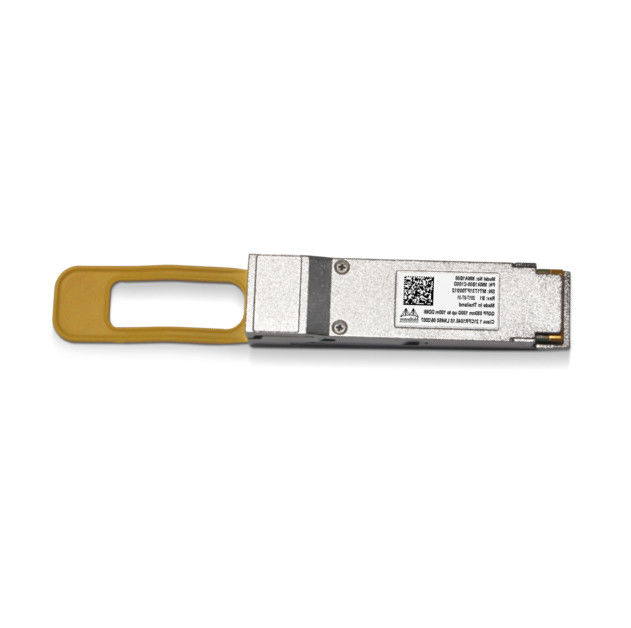

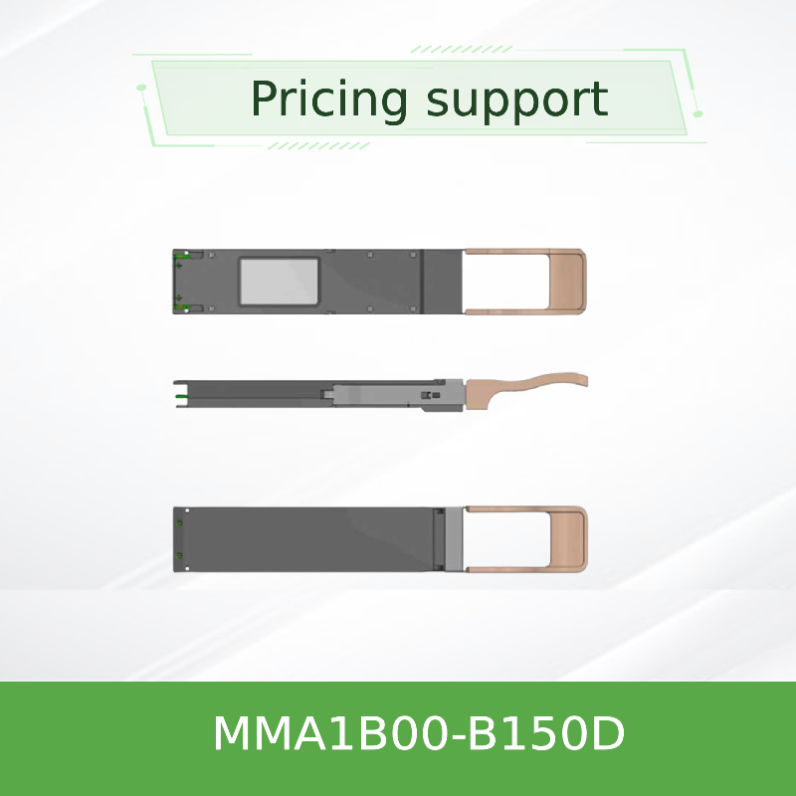

40GbE DDMI Mellanox Optical Transceiver QSFP+ 850nm MMA1B00-B150D MPO SR4 up to 150m

Product Details:

Brand Name: Mellanox
Model Number: MMA1B00-B150D

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton
Payment Terms: Western Union, MoneyGram, T/T, XTransfer
Get Best Price Contact Now

Detail Information
Condition: New And Original Availability: Stock
Technology: Ethernet Max Speed: 40GbE
Connector Type: QSFP+ Transceiver Reach: Up To 150m
Warranty Time: 1 Year
Highlight:

40GbE Mellanox Optical Transceiver

,

DDMI Mellanox Optical Transceiver

,

sfp 850nm Transceiver

Product Description

MMA1B00-B150D 40GbE QSFP+ MMF Transceiver Product Specifications

  •
  •
  •

  • NVIDIA MMA1B00-B150D is a 4-channel, pluggable, QSFP+ VCSEL-based (Vertical Cavity Surface Emitting Laser) optical transceiver, designed for use in 40Gb/s Ethernet (40GbE) networks operating at 4x10.3125Gb/s. This transceiver incorporates Mellanox integrated circuit technology, which combines high performance at low power. The transceiver operates over parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is SFF-8436 compliant.

    The MMA1B00-B150D transceiver has a standard QSFP+ connector on the electrical side towards the host system for power, control/monitoring and high-speed data. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. The transceiver can operate 10.3125Gb/s without retiming.

    MMA1B00-B150D transceiver provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and VCSEL bias.

    Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

  • 40GbE (4x10GbE) Ethernet
  • Programmable Tx input equalizer
  • Programmable Rx output amplitude
  • Programmable Rx output emphasis
  • SFF-8436 compliant QSFP+
  • Single 3.3V supply
  • QSFP+ power class 1
  • Class 1 laser safety
  • Up to 150m on OM4 and 100m on OM3 multi-mode fiber
  • Digital diagnostic monitoring (DDM)
  • Hot pluggable
  • RoHS compliant
  • IEEE 802.3 40GBASE-SR4 compliant
  • SFF-8436 compliant I2C management interface
Parameter Min Typ Max Units
Supply voltage 3.135 3.3 3.465 V
Power dissipation --- 1.3 1.5 W
Supply noise tolerance (10 Hz – 10 MHz) 66 --- --- mVpp
Operating case temperature 0 --- 70 °C
Operating relative humidity 5 --- 85 %RH
