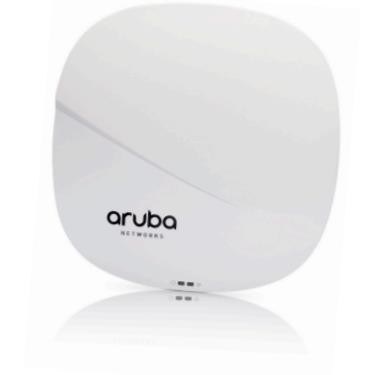

MU-MIMO 320 Series Aruba Wireless Access Points AP 325 802.11n/AC 4x4:4

MU-MIMO 320 Series Aruba Wireless Access Points AP 325 802.11n/AC 4x4:4

AP325 Aruba Wireless Access Points

802.11n Aruba Wireless Access Points

MU-MIMO aruba ap 320

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Wireless WiFi 5
Supported Frequency:
802.11n/ac 4x4:4 MU-MIMO
Indoor Access Point
Transmission Standard:
802.11n/ac Wave 2
315mm(W) X 265mm(D) X 100mm (H)
Product Description
  • AP type: Indoor, dual radio, 802.11n/ac 4x4:4 MU-MIMO Dual Radio
    • AP-325 and IAP-325
    --5 GHz (1,733 Mbps max rate) and 2.4 GHz (600 Mbps
    max rate) radios, each with 4x4 MIMO support
    and a total of eight integrated omni-directional
    downtilt antennas.
    • AP-324 and IAP-324
    --5 GHz (1,733 Mbps max rate) and 2.4 GHz (600 Mbps
    max rate) radios, each with 4x4 MIMO support and a
    total of four combined, diplexed (dual-band) external
    RP-SMA antenna connectors.
    • AP type: Indoor, dual radio, 5 GHz 802.11ac and 2.4 GHz
    802.11n 4x4 MIMO.
    • Software-configurable dual radio supports 5 GHz (Radio 0)
    and 2.4 GHz (Radio 1).
    • Four spatial stream SU-MIMO for up to 1,733 Mbps
    wireless data rate to a single client device.
    • Three spatial stream MU-MIMO for up to 1,300 Mbps
    wireless data rate to up to three MU-MIMO capable client
    devices simultaneously.
    • Support for up to 256 associated client devices per radio,
    and up to 16 BSSIDs per radio.
    • Supported frequency bands (country-specific
    restrictions apply):
    --2.400 to 2.4835 GHz
    --5.150 to 5.250 GHz
    --5.250 to 5.350 GHz
    --5.470 to 5.725 GHz
    --5.725 to 5.850 GHz
    • Available channels: Dependent on configured
    regulatory domain.
    • Dynamic frequency selection (DFS) optimizes the use of
    available RF spectrum.
    • Supported radio technologies:
    --802.11b: Direct-sequence spread-spectrum (DSSS)
    --802.11a/g/n/ac: Orthogonal frequency-division
    multiplexing (OFDM)
    • Supported modulation types:
    --802.11b: BPSK, QPSK, CCK
    --802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM,
    • Transmit power: Configurable in increments of 0.5 dBm
    • Maximum (aggregate, conducted total) transmit power
    (limited by local regulatory requirements):
    --2.4 GHz band: +24 dBm (18 dBm per chain)
    --5 GHz band: +24 dBm (18 dBm per chain)
    --Note: conducted transmit power levels exclude antenna
    gain. For total (EIRP) transmit power, add antenna gain
    • Advanced Cellular Coexistence (ACC) minimizes
    interference from cellular networks.
    • Maximum ratio combining (MRC) for improved
    receiver performance.
    • Cyclic delay/shift diversity (CDD/CSD) for improved
    downlink RF performance.
    • Short guard interval for 20-MHz, 40-MHz and
    80-MHz channels.
    • Space-time block coding (STBC) for increased range and
    improved reception.
    • Low-density parity check (LDPC) for high-efficiency error
    correction and increased throughput.
    • Transmit beamforming (TxBF) for increased signal
    reliability and range.
    • Supported data rates (Mbps):
    --802.11b: 1, 2, 5.5, 11
    --802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    --802.11n: 6.5 to 600 (MCS0 to MCS31)
    --802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support: VHT 20/40/80
    • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
    • AP-324/IAP-324: Four RP-SMA connectors for external
    dual band antennas. Internal loss between radio
    interface and external antenna connectors (due to
    diplexing circuitry): 2.5 dB in 2.4 GHz and 1.5 dB in 5 GHz.
    • AP-325/IAP-325: Eight integrated downtilt omni- directional
    antennas for 4x4 MIMO with peak antenna gain of 4.0dBi
    in 2.4 GHz and 4.7dBi in 5 GHz. Built-in antennas are
    optimized for horizontal ceiling- mounted orientation of the
    AP. The downtilt angle for maximum gain is ~ 30 degrees.
    Combining the patterns of each of the antennas of the
    MIMO radios, the peak gain of the effective per-antenna
    pattern is 2.7dBi in 2.4GHz and 2.9dBi in 5GHz.

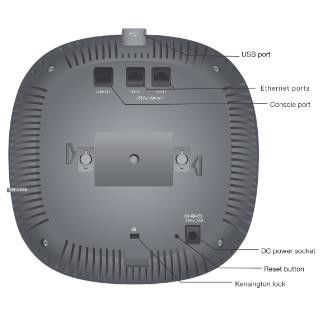

    • Two 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
    --Auto-sensing link speed and MDI/MDX
    --Link Aggregation support to achieve platform throughput
    up to 2 Gbps
    --802.3az Energy Efficient Ethernet (EEE)
    --PoE-PD: 48 Vdc (nominal) 802.3af or 802.3at PoE
    • DC power interface, accepts 2.1/5.5-mm center-positive
    circular plug with 9.5-mm length
    • USB 2.0 host interface (Type A connector)
    • Bluetooth Low Energy (BLE) radio
    --Up to 4dBm transmit power (class 2) and -94dBm
    receive sensitivity
    --Integrated antenna, -5dBi gain (30 degrees downtilt)
    --Can be disabled with configuration
    • Visual indicators (tri-color LEDs): For system and radio status
    • Reset button: Factory reset (during device power up)
    • Serial console interface (RJ-45)
    • Kensington security slot
    • Maximum (worst-case) power consumption: 20W
    (802.3at PoE), 13.5W (802.3af PoE) or 18.5W (DC)
    --Excludes power consumed by external USB device (and
    internal overhead); this could add up to 6W (POE) or
    5.5W (DC) for 5W/1A USB device
    • Maximum (worst-case) power consumption in idle mode:
    8W (PoE) or 7W (DC)
    • Direct DC source: 12 Vdc nominal, +/- 5%
    • Power over Ethernet (PoE): 48 Vdc (nominal)
    802.3af/802.3at compliant source
    --Unrestricted functionality with 802.3at PoE
    --Power-save mode with reduced functionality from
    802.3af PoE
    >>USB port disabled
    >>Second Ethernet port disabled
    >>2.4 GHz radio in 1x1:1 mode
    • Power sources sold separately
    • When both power sources are available, DC power
    takes priority
    • The AP ships with two (black) mounting clips to attach to a
    9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.
    • Several optional mount kits are available to attach the
    AP to a variety of surfaces; see the Ordering Information
    section for details.
    • Dimensions/weight (unit, excluding mount accessories):
    --203mm (W) x 203mm (D) x 57mm (H)
    8.0” (W) x 8.0” (D) x 2.2” (H)
    --950g/34 oz
    • Dimensions/weight (shipping):
    --315mm(W) x 265mm(D) x 100mm (H)
    12.4” (W) x 10.4” (D) x 3.9” (H)
    --1,350g/48 oz
    • Operating:
    --Temperature: 0° C to +50° C (+32° F to +122° F)
    --Humidity: 5% to 93% non-condensing
    • Storage and transportation:
    --Temperature: -40° C to +70° C (-40° F to +158° F)
    • FCC/ISED
    • CE Marked
    • RED Directive 2014/53/EU
    • EMC Directive 2014/30/EU
    • Low Voltage Directive 2014/35/EU
    • UL/IEC/EN 60950
    • EN 60601-1-1 and EN 60601-1-2
    For more country-specific regulatory information and
    approvals, please see your Aruba representative.
    MTBF: 739,935 hrs (84.5yrs) at +25C operating
    temperature (AP-325)
    • AP-324 and IAP-324: APIN0324
    • AP-325 and IAP-325: APIN0325
    • CB Scheme Safety, cTUVus
    • UL2043 plenum rating
    • Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
    • WPA, WPA2 and WPA3 – Enterprise with CNSA option,
    Personal (SAE), Enhanced Open (OWE)
    • Bluetooth SIG interoperability certification
    • Passpoint® (Release 2) with ArubaOS and Instant 8.3+
    • Aruba limited lifetime warranty
    • ArubaOS
    320 Series Access Points are not supported on
    650 Series Mobility Controllers.
    • Aruba InstantOS
      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    802.11b 2.4 GHz
    1Mbps 18.0 -97.0
    11Mbps 18.0 -89.0
    802.11g 2.4 GHz
    6Mbps 18.0 -93.0
    54Mbps 18.0 -75.0
    802.11n HT20 2.4 GHz
    MCS0/8 18.0 -92.0
    MCS/7/15 16.0 -72.0
    802.11n HT40 2.4 GHz
    MCS0/8 18.0 -90.0
    MCS7/15 16.0 -70.0
    802.11a 5 GHz
    6Mbps 18.0 -93.0
    54Mbps 16.5 -75.0
    802.11n HT20 5 GHz
    MCS0/8/16/24 18.0 -92.0
    MCS7/15/23/31 16.0 -72.0
    802.11n HT40 5 GHz
    MCS0/8/16/24 18.0 -89.0
    MCS7/15/23/31 16.0 -69.0
    802.11AC VHT20 5 GHz
    MCS0 18.0 -92.0
    MCS8 14.0 -65.0
    802.11AC VHT40 5 GHz
    MCS0 18.0 -89.0
    MCS9 14.0 -62.0
    802.11AC VHT80 5 GHz
    MCS0 18.0 -86.0
    MCS9 14.0 -59.0
