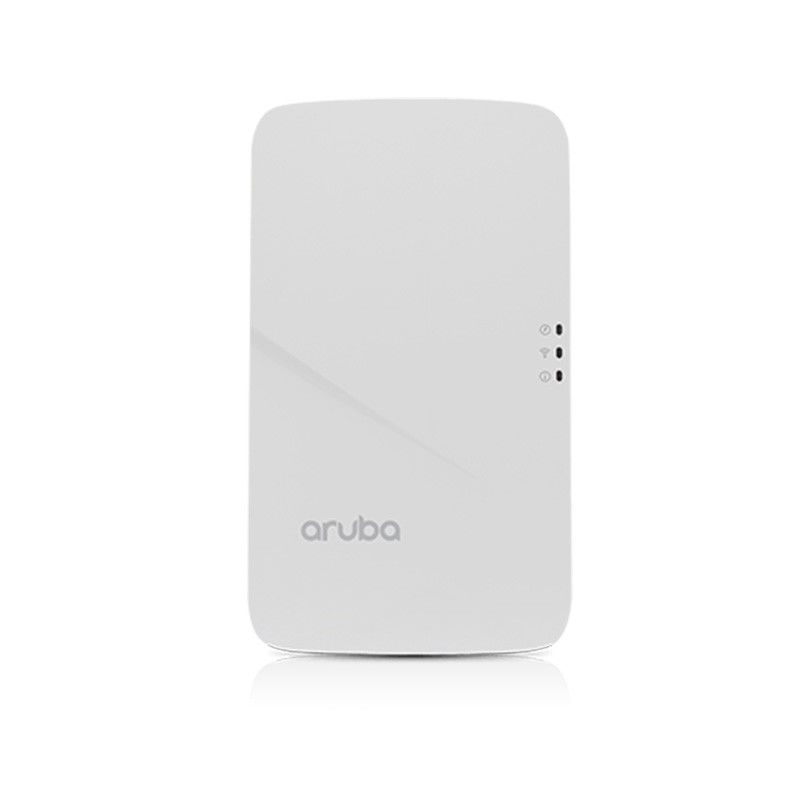

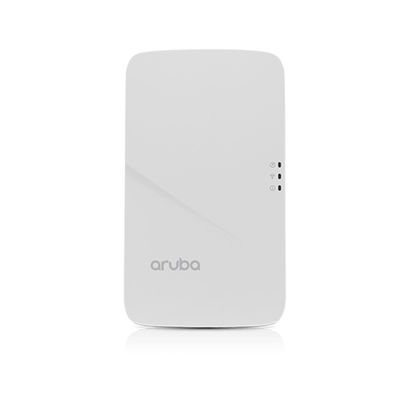

AP 303H (RW) Networks Aruba Wireless Access Points With Internal Antennas

AP 303H (RW) Networks Aruba Wireless Access Points With Internal Antennas

AP 303H Aruba Wireless Access Points

Antennas Aruba Wireless Access Points

AP 303H aruba networks wireless access point

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Wi-Fi 5
Supported Frequency:
5GHz And 2.4GHz
Hospitality Access Points
Transmission Standard:
802.11 Ac Wave 2
128mm (W) X 63mm (D) X 168mm (H)
Product Description
  • AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ac Wave 2 2x2 MIMO
    • Unified dual-radio 802.11ac Wave 2 2x2:2 hospitality and
    branch AP with internal antennas, three local Gigabit
    Ethernet ports, PoE out and USB host interface
    • Supports wall-box and desk mount deployments
    • AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and
    2.4GHz 802.11n 2x2 MIMO1
    • Software-configurable dual radio supports 5GHz (Radio 0)
    and 2.4GHz (Radio 1)
    • 5GHz: Two spatial stream Multi User (MU) MIMO for up
    to 867Mbps wireless data rate to up to two (1x1 VHT80)
    MU-MIMO capable client devices simultaneously
    • 5GHz: Two spatial stream Single User (SU) MIMO for up
    to 867Mbps wireless data rate to individual 2x2 VHT80
    client devices
    • 2.4GHz: Two spatial stream Single User (SU) MIMO for
    up to 300Mbps wireless data rate to individual 2x2 HT40
    client devices
    • Support for up to 256 associated client devices per radio,
    Supported frequency bands (country-specific
    restrictions apply):
    - 2.400 to 2.4835GHz
    - 5.150 to 5.250GHz
    - 5.250 to 5.350GHz
    - 5.470 to 5.725GHz
    - 5.725 to 5.850GHz
    • Available channels: Dependent on configured
    regulatory domain
    • Dynamic frequency selection (DFS) optimizes the use of
    available RF spectrum
    • Supported radio technologies:
    - 802.11b: Direct-sequence spread-spectrum (DSSS)
    - 802.11a/g/n/ac: Orthogonal frequency-division
    multiplexing (OFDM)
    • Supported modulation types:
    - 802.11b: BPSK, QPSK, CCK
    - 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM,
    • Transmit power: Configurable in increments of 0.5 dBm
    • Maximum (conducted) transmit power (limited by local
    regulatory requirements):
    - 2.4GHz band: +18 dBm per chain, +21 dBm
    aggregate (2x2)
    - 5GHz band: +18 dBm per chain, +21 dBm
    aggregate (2x2)
    - Note: conducted transmit power levels exclude antenna
    gain. For total (EIRP) transmit power, add antenna gain
    • Advanced Cellular Coexistence (ACC) minimizes
    interference from cellular networks
    • Maximum ratio combining (MRC) for improved
    receiver performance
    • Cyclic delay/shift diversity (CDD/CSD) for improved
    downlink RF performance
    • Short guard interval for 20MHz, 40MHz and
    80MHz channels
    • Space-time block coding (STBC) for increased range and
    improved reception
    • Low-density parity check (LDPC) for high-efficiency error
    correction and increased throughput
    • Transmit beam-forming (TxBF) for increased signal
    reliability and range
    • Supported data rates (Mbps):
    - 802.11b: 1, 2, 5.5, 11
    - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    - 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
    - 802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23)
    - 02.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2
    for VHT20/40/80)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support:
    VHT 20/40/80
    • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
    • Two integrated dual-band moderately directional
    antennas for 2x2 MIMO with maximum individual antenna
    gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz. Built-in
    antennas are optimized for vertical orientation of the AP.
    - The horizontal beamwidth is roughly 120 degrees.
    Combining the patterns of each of the antennas of the
    MIMO radios, the peak gain of the effective per-antenna
    pattern is 3.2dBi in 2.4GHz and 4.6dBi in 5GHz.

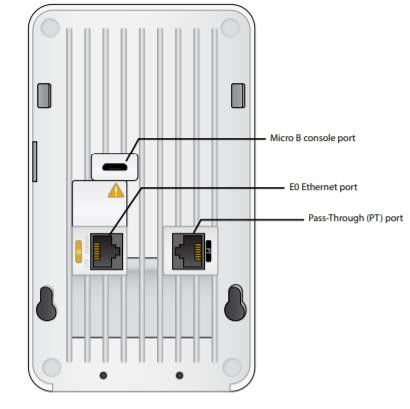

    • Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
    - Auto-sensing link speed and MDI/MDX
    - 802.3az Energy Efficient Ethernet (EEE)
    - PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE
    • Local: Three 10/100/1000BASE-T Ethernet (RJ-45, bottom)
    - Auto-sensing link speed and MDI/MDX
    - 802.3az Energy Efficient Ethernet (EEE)
    - One port: PoE-PSE (output): 48 Vdc (nominal)
    802.3af PoE
    • Passive pass-through interface (two RJ-45, back
    and bottom)
    - Bluetooth Low Energy (BLE) radio
    > Up to 4dBm transmit power (class 2) and -93dBm
    receive sensitivity
    > Integrated antenna with moderately directional
    pattern and peak gain of 0.9dBi
    • USB 2.0 host interface (Type A connector)
    - 3G/4G cellular modems
    - Device battery charging port
    - Capable of supplying up to 1A/5 watts of power to an
    attached device
    • DC power interface, accepts 1.35/3.5-mm center-positive
    circular plug with 9.5-mm length

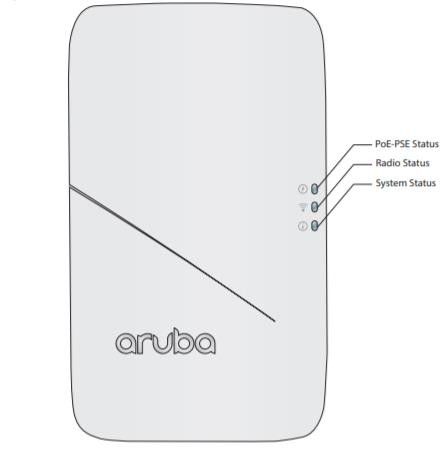

    • Visual indicators (LEDs):
    - Power/system status
    - Radio status
    - PoE-PSE status
    - Local network port status (3x)
    • Reset/LED control button (“paperclip access”)
    - Factory reset (when activated during device power up)
    - LED control: toggle off/normal
    • Serial console interface (custom, uUSB physical jack)
    • Maximum IPsec encrypted wired throughput: 100Mbps
    • The AP supports direct DC power and Power over
    Ethernet (PoE)
    • When both power sources are available, DC power takes
    priority over PoE
    • Power sources are sold separately
    • Direct DC power source: 48Vdc nominal, +/- 5%
    • Power over Ethernet (PoE): 48 Vdc (nominal)
    802.3af/802.3at compliant source
    - Unrestricted functionality with direct DC power.
    When using an 802.3af PoE source, the PoE out (PSE)
    capability of the 303H is always disabled.
    - Without IPM, both the USB port and PoE out (PSE)
    capability are disabled when the AP is powered by an
    802.3af PoE source, and either the USB port or the
    PoE out (PSE) capability is disabled when powered
    by an 802.3at PoE source (PSE capability is disabled
    by default).
    - When using IPM, the AP may enter power-save mode
    with reduced functionality when powered by a PoE
    source (see details on Intelligent Power Monitoring
    elsewhere in this datasheet)
    • Maximum (worst-case) power consumption: 9.7W
    - Excludes power consumed by external USB and/or
    PoE-PD device (and internal losses); this could add up to
    6.1W (PoE) for a 5W/1A USB device and up to 15.6W for
    a max load (15.4W) 802.3af PoE-PD device
    • Maximum (worst-case) power consumption in idle mode:
    4.9W (PoE) or 4.8W (DC)

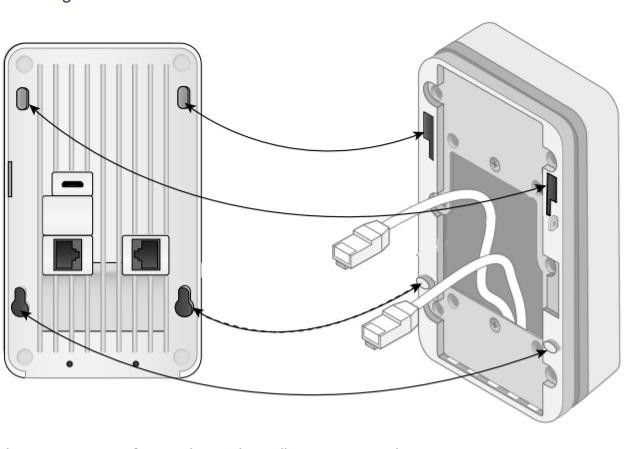

    • The AP ships with a mounting plate to attach the AP to
    a single-gang wall-box (most international variations
    covered). A security screw (T8H) is provided to ensure that
    the AP cannot (easily) be removed from its mount without
    a specialized tool.
    • Several optional mount kits are available to attach the AP
    to a dual-gang wall-box, directly to the wall, or to support
    desk mounting.
      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz
    1Mbps 18.0 -96.0
    10Mbps 18.0 -88.0
    6Mbps 18.0 -91.0
    54Mbps 16.0 -74.0
    802.11n HT20
    MCS0/8 18.0 -90.0
    MCS/7/15 14.0 -71.0
    802.11n HT40
    MCS0/8 18.0 -875.0
    MCS7/15 14.0 -69.0
    5 GHz
    6Mbps 18.0 -908.0
    54Mbps 16.0 -73.0
    802.11n HT20
    MCS0/8 18.0 -88.0
    MCS7/15 14.0 -70.0
    802.11n HT40
    MCS0/8 16.0 -905.0
    MCS7/15 16.0 -71.0
    802.11ac VHT20
    MCS0 18.0 -87.0
    MCS8 14.0 -68.0
    802.11ac VHT40
    MCS0 18.0 -905.0
    MCS9 13.0 -67.0
    802.11ac VHT80
    MCS0 18.0 -84.0
    MCS9 12.0 -59.0
