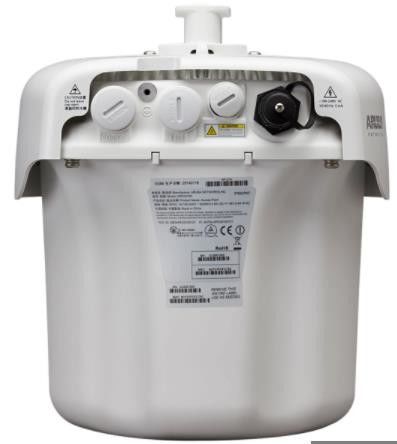

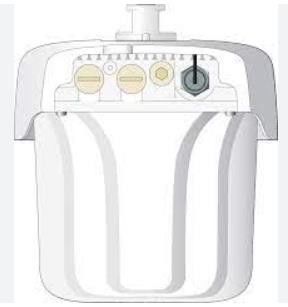

Radio Integrated Omni Outdoor Aruba Wireless Access Points AP275 AC 3x3:3

Radio Integrated Omni Outdoor Aruba Wireless Access Points AP275 AC 3x3:3

AP275 Aruba Wireless Access Points

Omni Aruba Wireless Access Points

Omni aruba outdoor access point

Brand Name:

Aruba

Model Number:

AP-275(JW178A)

CONTACT US

Request A Quote
Product Details
Condition:
New And Original
Availability:
Stock
Use:
Access Points
Supported Frequency:
5GHz And 2.4GHz
Type:
Outdoor AP
Transmission Standard:
802.11n/ac
Size:
900 Mm (W) X 870 Mm (D) X 510 Mm (H)
Weight:
2.1kg
Product Description
  • ARUBA 270 SERIES OUTDOOR ACCESS POINTS
  • AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ac 3x3:3 MIMO
  • ACCESS POINT MODELS
    AP-274andIAP-274
    -2.4-GHz and 5-GHz radios, each with 3x3 MIMO andthree external antenna connectorsAP-275 andIAP-275
    - 2.4-GHz and 5-GHz radios, each with 3x3 MIMO andthree integrated omni-directional antennasAP-277 and IAP-277
    -2.4-GHz and 5-GHz radios, each with 3x3 MIMO and threeintegrated 80°H x 80 V beamwidth directional antennas
    WIRELESS RADIO SPECIFICATIONS
    AP type: Outdoor, dual radio, 5-GHz 802.11ac and2.4-GHz 802.11n
    - In addition to 802.11n data rates, the 2.4-GHz radiosupports 802.11ac 256-QAM modulation.This givesTurboQAM-enabled clients a 339 boost to deliver upto 600 Mbps.
    Supported frequency bands (country-specificrestrictions apply):
    - 2.4000 GHz to 2.4835 GHZ
    - 5.150 GHz to 5.250 GHZ
    - 5.250 GHz to 5.350 GHZ
    - 5.470 GHz to 5.725 GHZ
    - 5.725 GHzto 5.875 GHZ
    Available channels: Dependent upon configuredregulatory domain
    Dynamic frequency selection (DFS) optimizes the use ofavailable RF spectrum
    Supported radio technologies:
    802.11b: Direct-sequence spread-spectrum (DSSS)
    80211a/g/n/ac: Orthogonal frequency-division
    multiplexing(OFDM)
    802.11n/ac: 3x3 MIMO with up to three spatial streamsSupported modulation types.
    80211b:BPSKOPSK CCK
    802.11a/g/n: BPSK QPSK,16-QAM,64-QAM,256-QAM
    (with TurboQAM clients)
    802.11ac: BPSK,QPSK,16-QAM,64-QAM,256-QAM
    Transmit power: Configurable in increments of 0.5 dBm
    Maximum (aggregate, conducted total) transmit power
    (limited by local regulatory requirements).
    2.4-GHz band: +28 dBm (23 dBm per chain)
    5-GHz bands: +28 dBm (23 dBm per chain)
    Advanced cellular coexistence (ACC) feature to minimize
    interference from cellular systems
    Maximum ratio combining (MRC) for improved
    receiver performance
    Cyclic delay diversity (CDD) for improved downlink
    RF performance
    Short guard interval for 20-MHZ,40-MHz and
    80-MHz channels
    Space-time block coding (STBC) for increased range ano
    improved reception
    Low-density parity check (LDPC) for high-efficiency errol
    correction and increased throughput
    Explicit transmit beam-forming (TxBF) for increased
    reliability in signal delivery
    Supported data rates (Mbps):
    802.11b:1,2,5.5,11
    802.11a/g.6,9,12,18,24, 36,48,54
    802.11n: 6.5 to 450 (MCSO to MCS23, 1 to 3
    spatial streams)
    802.11ac: 6.5 to 1.300(MCSO to MCS9,1 to 3
    spatial streams)
    802.11n high-throughput(HT) support: HT 20/40802.11ac very high throughput (VHT) support:
    VHT 20/40/80
    802.11n/ac packet aggregation: A-MPDU,A-MSDU Power
    Maximum power consumption: 23 watts
    Direct AC source: 100-240-Volt AC
    Power over Ethernet (PoE): 48 Vdc (nominal).
  • RF PERFORMANCE TABLE
      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz
    802.11b 2.4 GHz
    1Mbps 23.0 -95.0
    2Mbps 23.0 -93.0
    5.5Mbps 23.0 -90.0
    11Mbps 23.0 -88.0
    802.11g 2.4 GHz and 802.11a 5GHz
    6Mbps 23.0 -93.0
    54Mbps 19.0 -75.0
    802.11n HT20 2.4 GHz and 5GHz
    MCS0/8 23.0 -93.0
    MCS/7/15 19.0 -71.0
    802.11n HT40 2.4 GHz and 5GHz
    MCS0/8 23.0 -90.0
    MCS7/15 18.0 -68.0
    802.11ac VHT20 5GHz
    MCS0 23.0 -90.0
    MCS8 16.0 -63.0
    802.11ac VHT40 5GHz
    MCS0 23.0 -90.0
    MCS9 15.0 -63.0
    802.11ac VHT80 5GHz
    MCS0 18.0 -87.0
    MCS9 15.0 -61.0
