Aruba 570 Series Outdoor Wireless Access Point R4H22A
Product Details:
| Brand Name: | Aruba |
| Model Number: | R4H22A (AP-577 RW) |
| Document: | DS_AP570Series(1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model: | R4H22A (AP-577 RW) | Wi-Fi Standard: | 802.11ax (Wi-Fi 6) |
|---|---|---|---|
| Antenna Type: | Integrated Directional (90°H X 90°V) | Max Data Rate: | 3 Gbps |
| Ethernet Ports: | 2 X RJ-45 (1x SmartRate 2.5G, 1x 1G) PoE Support | PoE Support: | 802.3at/bt (Class 4 Or Higher) |
| Highlight: | 1000BASE aruba 7024 controller,24 Port aruba 7024 controller,32AP aruba 7024 mobility controller |
||
Product Description

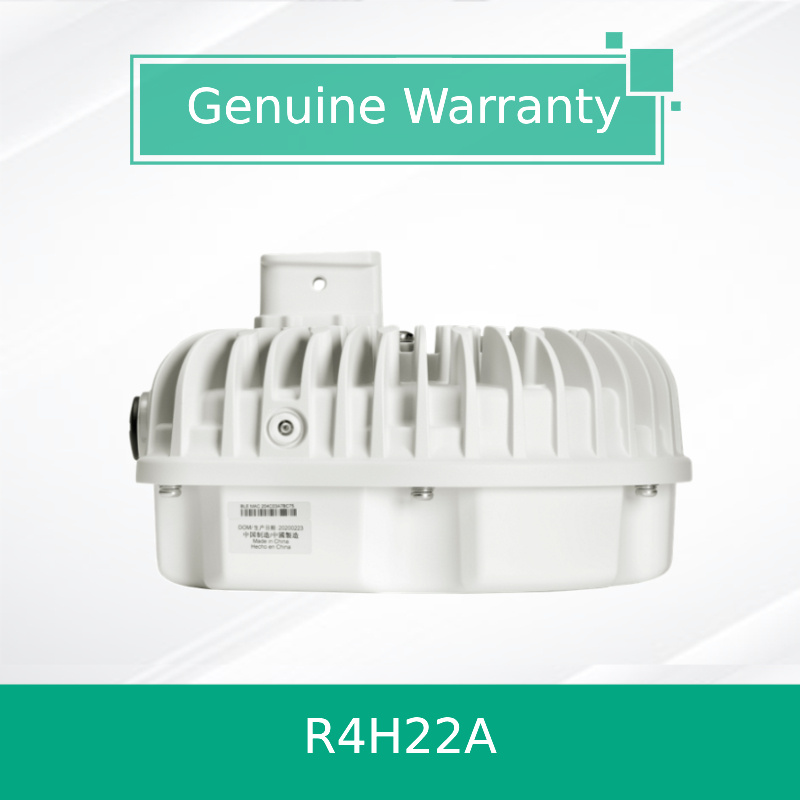

Aruba 570 Series Outdoor Wireless Access Point (Model: R4H22A)
1. Product Overview
The Aruba 570 Series Outdoor Access Point (AP) is a high-performance, weatherproof Wi-Fi 6 (802.11ax) solution engineered for challenging outdoor and industrial environments. Model R4H22A (AP-577 RW variant) features integrated directional antennas, delivering robust connectivity with maximum aggregate data rates up to 3 Gbps. Designed for durability, it operates in extreme temperatures (-40°C to +65°C) and harsh conditions, making it ideal for enterprises requiring reliable outdoor coverage.
2. Key Characteristics
- Wi-Fi 6 (802.11ax) with 4x4:4SS MU-MIMO in 5 GHz and 2x2:2SS in 2.4 GHz
- Integrated Bluetooth 5 and Zigbee (802.15.4) for IoT deployment
- IP66/67 rated for dust/water resistance and wind survival up to 165 mph
- Advanced Cellular Coexistence (ACC) to minimize interference
- Dual Ethernet ports with PoE support and Link Aggregation (LACP)
- Supports Aruba Central cloud management and Zero Touch Provisioning
3. Core Technologies
The Aruba 570 Series AP leverages cutting-edge wireless technologies including Orthogonal Frequency Division Multiple Access (OFDMA) for efficient multi-user data transmission, Downlink MU-MIMO, and Target Wake Time (TWT) for IoT battery optimization. Security features include WPA3, Enhanced Open encryption, and Trusted Platform Module (TPM) for secure boot.
4. Working Principle
This Access Point operates by segmenting wireless channels into Resource Units (RUs) using OFDMA, allowing simultaneous communication with multiple clients. It uses ClientMatch technology to steer devices to the best available AP and radio band. In controller-based mode, all traffic is tunneled to a Mobility Controller for centralized policy enforcement and segmentation.
5. Applications
Ideal for outdoor stadiums, campuses, industrial parks, rail networks, and smart city deployments. Supports high-density client environments (up to 1024 total clients) and IoT sensor networks leveraging integrated Bluetooth and Zigbee radios.
6. Specifications
| Attribute | Specification |
|---|---|
| Model | R4H22A (AP-577 RW) |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Antenna Type | Integrated Directional (90°H x 90°V) |
| Max Data Rate | 3 Gbps |
| Ethernet Ports | 2 x RJ-45 (1x SmartRate 2.5G, 1x 1G) |
| PoE Support | 802.3at/bt (Class 4 or higher) |
| Operating Temperature | -40°C to +65°C |
| Weight | 2.1 kg (4.6 lbs) |
7. Advantages
Compared to previous-generation outdoor APs, the Aruba 570 Series offers 4x higher capacity, improved power efficiency via IPM, and integrated IoT radios eliminating overlay hardware. Its ruggedized design exceeds industrial standards for shock, vibration, and salt spray tolerance.
8. Service & Support
Limited Lifetime Warranty. Global shipping available. Provides 24/7 technical support and consultation. Zero Touch Provisioning reduces deployment time. Compatible with Aruba Central and AirWave management platforms.
9. FAQ
Q: What is the maximum number of clients supported?
A: Up to 512 per radio (1024 total).
Q: Does it support mesh networking?
A: Yes, when operated in Aruba Instant mode.
Q: Is this AP suitable for rail environments?
A: Yes, it complies with EN 50155 and EN 50121 for railway applications.
10. Precautions
Ensure adequate PoE budget (min. 802.3at). Do not use with 802.3af only. Mount using approved outdoor kits. Configure regulatory domain correctly to comply with local RF laws.
