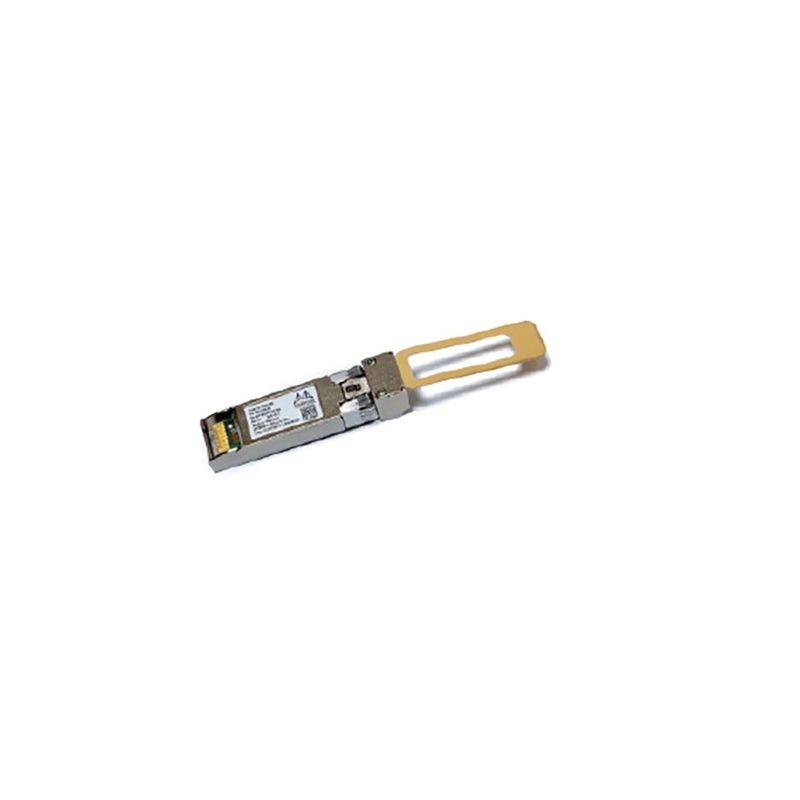

Mellanox MMA2P00-AS 25GbE SFP28 SR Optical Transceiver for High-Speed Networking

1. Product Overview

The Mellanox MMA2P00-AS is a high-performance SFP28 optical transceiver module engineered for 25 Gigabit Ethernet applications. This fiber optic transceiver operates over multi-mode fiber (MMF) using 850nm wavelength technology, delivering reliable connectivity for data centers and enterprise networks. Designed for efficiency and compatibility, this optical transceiver supports both 25GbE and 10GbE rates with exceptional signal integrity.

2. Key Characteristics

• Dual-rate support: 25GbE and 10GbE operation
• Programmable transmitter equalization and receiver emphasis
• Extended reach: 100m on OM4 MMF, 70m on OM3 multi-mode fiber
• Hot-pluggable SFP28 form factor with LC duplex interface
• Low power design: 0.7W typical with retiming enabled
• Class 1 laser product ensuring eye safety
• Compliant with RoHS and industry standards

3. Technology & Standards Compliance

This SFP28 optical transceiver complies with IEEE 802.3bm, SFF-8402, and SFF-8472 standards. It features advanced DSP technology with selectable retiming capabilities for both transmit and receive paths. The module supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking.

4. Operational Principle

The transceiver converts electrical signals to optical signals using an 850nm VCSEL laser source. These optical signals transmit through multi-mode fiber optic cables, then are converted back to electrical signals at the receiving end. Built-in signal conditioning features maintain integrity across various fiber distances and conditions.

5. Application Scenarios

Ideal for data center interconnects, high-performance computing clusters, enterprise network upgrades, and storage area networks. Compatible with switches, routers, and network interface cards from major vendors that support SFP28 form factor and 25GbE standards.

6. Technical Specifications

7. Competitive Advantages

The MMA2P00-AS optical transceiver delivers superior performance through advanced signal integrity features including programmable equalization and selectable retiming. Compared to previous generation modules, it offers significantly higher data rates while maintaining backward compatibility with 10GbE infrastructure. The multi-mode fiber transceiver provides exceptional value with lower power consumption and extended temperature range options.

8. Service & Support

All Mellanox optical transceivers include a 1-year limited warranty with repair or replacement coverage. Our company provides comprehensive technical support, rapid delivery from extensive inventory, and integration assistance to ensure seamless deployment of your fiber optic infrastructure.

9. Frequently Asked Questions

Q: What types of fiber are compatible with this transceiver?
A: It works with OM3 and OM4 multi-mode fiber cables, with LC duplex connectors.

Q: Can I use this in a 10GbE switch port?
A: Yes, by disabling the CDR function, the module operates at 10GbE rates.

Q: What is the difference between MMA2P00-AS and MMA2P00-ASHT?
A: The ASHT variant supports extended temperature operation up to 85°C case temperature.

Q: Does this transceiver support DDM/DOM monitoring?
A: Yes, it provides digital diagnostic monitoring per SFF-8472 standard.

10. Installation Notes

Ensure host equipment compatibility before installation. Avoid bending fiber optic cables beyond minimum bend radius. Protect the optical ports from contamination with dust caps when not connected. Observe standard electrostatic discharge (ESD) precautions during handling. Do not exceed maximum optical input power to avoid receiver damage.
