Product Description
C8180 LPartner Cooled 900-9X81E-00EX-SL0S
C8180 LPartner Cooled 900-9X81E-00EX-SL0S
The NVIDIA® ConnectX®-8 SuperNIC™ is optimized to supercharge hyperscale AI computing workloads. With support for both InfiniBand and Ethernet networking at up to 800 gigabits per second (Gb/s), ConnectX-8 SuperNIC delivers high-speed, efficient network connectivity, significantly enhancing system performance for AI factories and cloud data center environments.
Powerful Networking for Generative AI
Central to NVIDIA's AI networking portfolio, ConnectX-8 SuperNICs fuel the next wave of innovation in forming accelerated, massive-scale AI compute fabrics. They seamlessly integrate with next-gen NVIDIA networking platforms, providing end-
to-end 800Gb/s connectivity. These platforms offer the robustness, feature sets, and scalability required for trillion-parameter GPU computing and generative AI applications.
capabilities of NVIDIA® Scalable Hierarchical Aggregation and Reduction Protocol to boost In-network computing in high-performance computing environments, further enhancing overall efficiency and performance.
C8180 LPartner Cooled 900-9X81E-00EX-SL0S
ConnectX-8 Extension Options
There are two available extension options:
For 900-9X81Q-00CN-ST0 and 900-9X81E-00EX-ST0: Utilizing the Socket-Direct/Multi-Host capability, where the PCIe extension card is connected to the SuperNIC, and is used as an end-point.
For 900-9X81E-00EX-DT0: Utilizing the Down Stream Port (DSP) option, where the MCIO connector is used as a root complex for storage devices (GPUs or SSDs).

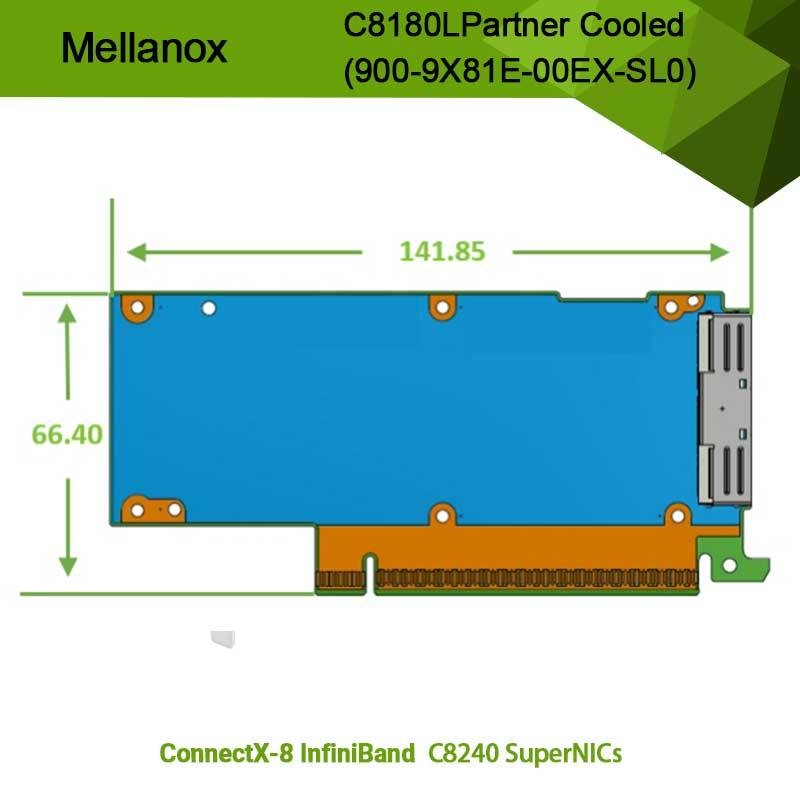

NVIDIA offers ConnectX-8 Socket Direct, which enables 800Gb/s or 400Gb/s connectivity for servers with PCIe Gen5 or Gen4 capability, respectively. The SuperNIC's 32-lane PCIe bus is split into two 16-lane buses, with one bus accessible through a PCIe x16 edge connector and the other bus through an x16 Auxiliary PCIe Connection card. The two cards should be installed into two PCIe x16 slots and connected using an MCIO harness.
Please order the additional PCIe Auxiliary Card kit to use the SuperNIC in the Socket-Direct configuration. SuperNICs that support Socket Direct can function as separate x16 PCIe cards.
|
Model
|
NVIDIA SKU
|
Port Type
|
Supported Speed
|
Form Factor
|
PCIe Express
|
Socket Direct Extension Option
|
Crypto
|
Secure Boot
|
Bracket Type
|
|
C8240
|
900-9X81Q-00CN-ST0
|
Dual-port QSFP112
|
InfiniBand: NDR IB (Default)
Ethernet: 400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
C8180
|
900-9X81E-00EX-ST0
|
Single-cage OSFP
|
InfiniBand: 800Gbs XDR IB (Default)
Ethernet: 2x400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
900-9X81E-00EX-DT0
|
Single-cage OSFP
|
InfiniBand: 800Gbs XDR IB (Default)
Ethernet: 2x400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
C8180L
Partner Cooled
|
900-9X81E-00EX-SL0
|
Single-cage OSFP
|
InfiniBand: 800Gbs XDR IB (Default)
Ethernet: 2x400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
Physical
|

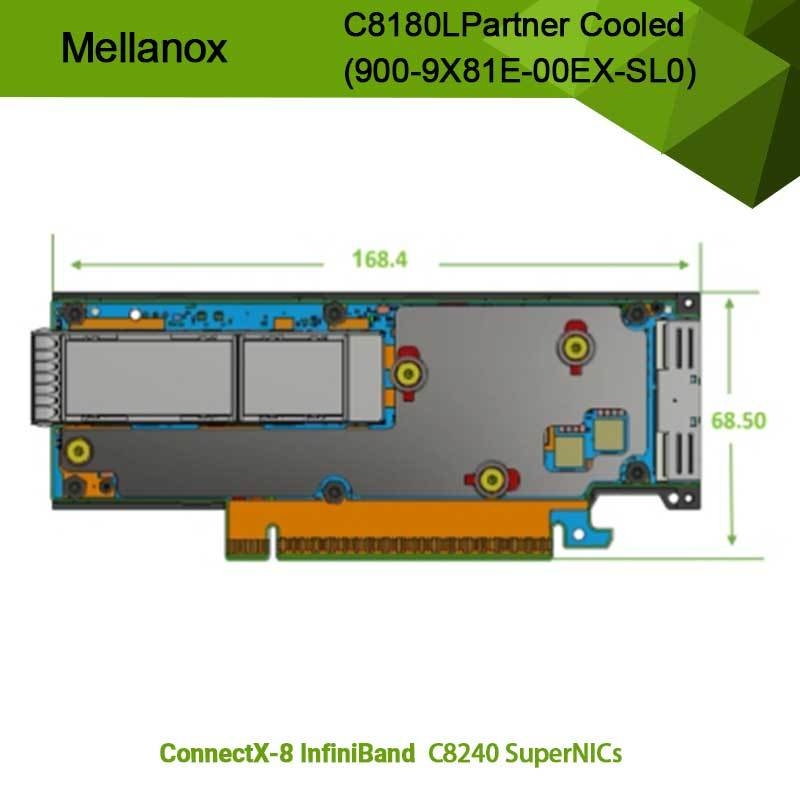

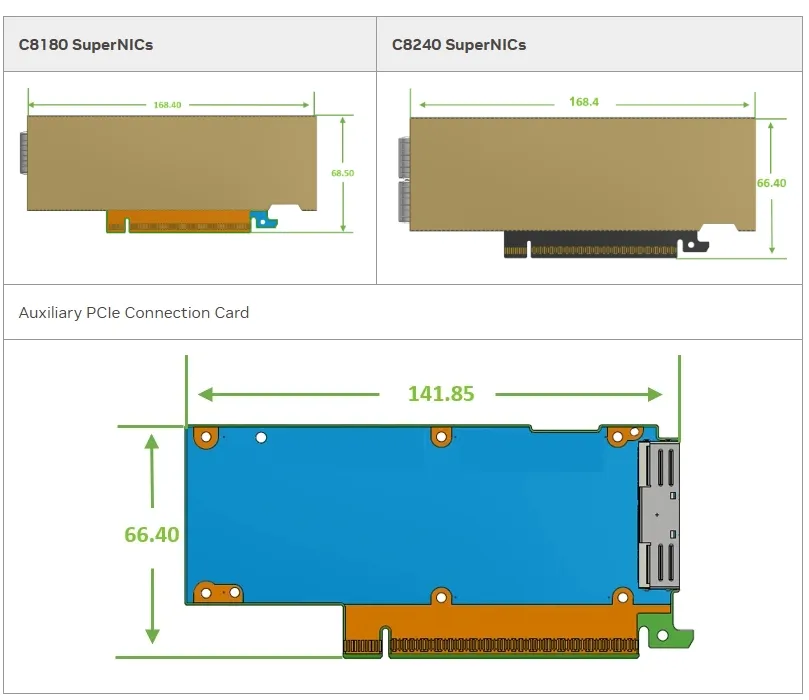

SuperNIC Dimensions: PCIe Half Height, Half Length 2.69 in. x 6.58 in. (68.50mm x 168.40mm)
|
|
Interfaces
|
SeeSupported Interfaces
|
|
PCI Express Interface
|
Gen6 SERDES @ 64GT/s, x16 lanes (Gen 5 compatible)
|
|
Optional: Additional PCIe x16 Gen5 @ SERDES 32GT/s through the PCIe auxiliary card and MCIO harness
|
|
Networking Port: Single cage OSFP InfiniBand and Ethernet
|
|
Data Rate
|
InfiniBand (Default)
|
XDR/NDR/HDR/HDR100/EDR/SDR
|
|
Ethernet
|
400/200/100 Gb/s Ethernet
|
|
Protocol Support
|
InfiniBand: IBTA v1.7a
Auto-Negotiation: XDR (4 lanes x 200Gb/s per ) port, NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port, EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane).
|
|
Ethernet: 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI
|
|
Capabilities
|
900-9X81Q-00CN-ST0
|
Secure Boot Enabled, Crypto Enabled with x16 PCIe extension option
|
|
900-9X81E-00EX-DT0
|
Secure Boot Enabled, Crypto Enabled with x16 PCIe Down-Stream Port Extension Option
|
|
Electrical and Thermal Specifications
|
Voltage: 12V, 3.3V, 3.3VAUX
|
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-8 SuperNIC Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative.
|
|
Environmental
|
Temperature
|
Operational
|
0°C to 55°C
|
|
Non-operational
|
-40°C to 70°Cb
|
|
Humidity
|
Operational
|
10% to 85% relative humidity
|
|
Non-operational
|
10% to 90% relative humidity
|
|
Altitude (Operational)
|
3050m
|
|
Regulatory
|
Safety: CB / cTUVus / CE
|
|
EMC: CE / FCC / VCCI / ICES / RCM / KC
|
|
RoHS: RoHS Compliant
|
|
Notes:
a. The ConnectX-8 SuperNICs supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. The non-operational storage temperature specifications apply to the product without its package.
|
