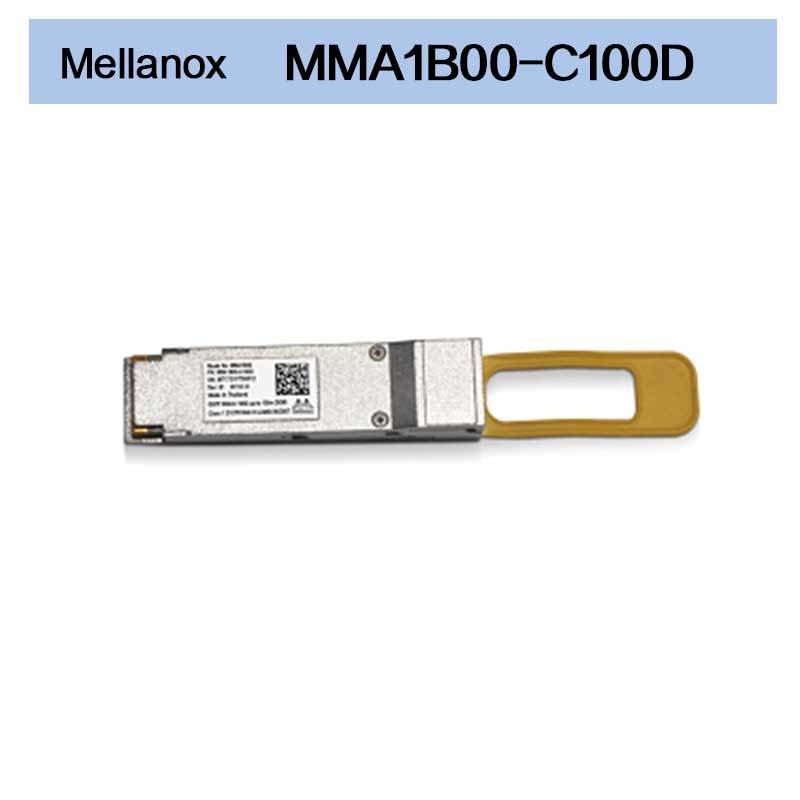

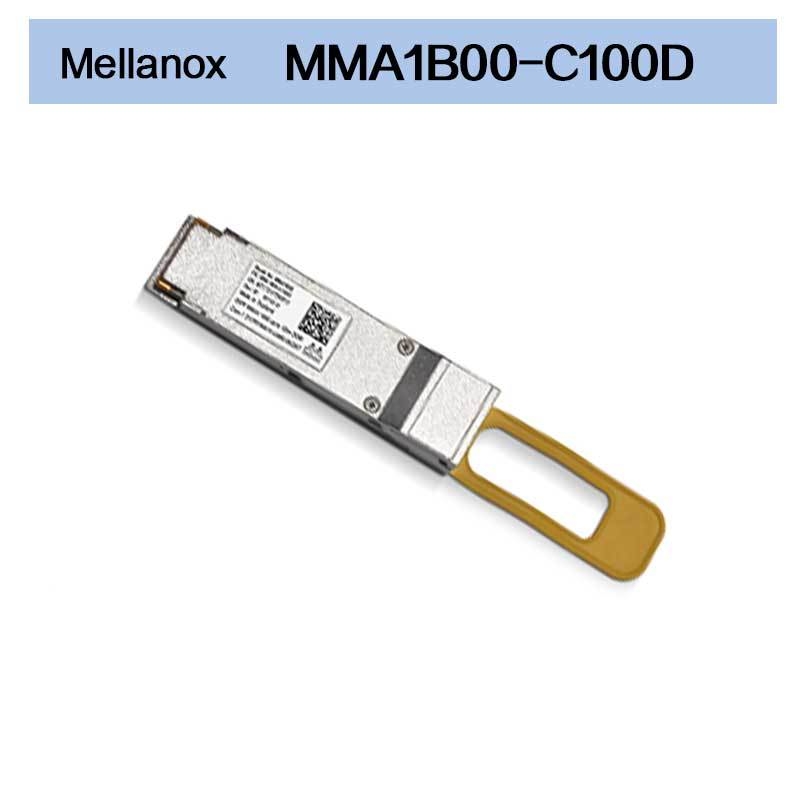

Product Description
NVIDIA® MMA1B00-C100D is a 4-channel, pluggable QSFP28 optical transceiver designed for use in 100GbE Ethernet links with up to 100 m reach on multi-mode fiber (MMF). This transceiver incorporates our integrated circuit technology to provide high performance at low power.
The MMA1B00-C100D converts 4 input channels of 25 Gb/s electrical data to 4 optical signals at 850 nm. Reversely, the receiver side de-multiplexes 4 optical inputs into 4 electrical differential output signals.The transceiver has selectable retiming as specified in the SFF-8636 MSA. The transceiver can therefore be used in both 40 GbE and 100 GbE applications.
Digital diagnostic monitoring functions for temperature, supply voltage, and optical power are available via the two-wire (I2C) management interface, as specified by the QSFP28 MSA.
The optical interface is a Multi-fiber Push-On (MPO) connector with four optical channels/fibers in each direction. The MPO connector is un-angled (UPC).
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Key Features
Up to 100Gb/s
Selectable retiming for both Tx and Rx
Programmable Tx input equalizer
Programmable Rx output amplitude and emphasis
SFF-8665 compliant QSFP28
Single 3.3V supply, hot pluggable
QSFP28 power class 3 (2.5 W max)
2.2 W power consumption (typ, with retiming)
Class 1 laser safety
Up to 100m on OM4, and 70m on OM3 multimode fiber at 100 Gb/s
Up to 100m on OM3 at 40 Gb/s
SFF-8636 compliant DDM
Hot pluggable
RoHS compliant
|
Ordering Part Number
|
Description
|
|
MMA1B00-C100D
|
Transceiver, 100GbE, QSFP28, MPO, 850nm, SR4, up to 100m, DDMI
|
