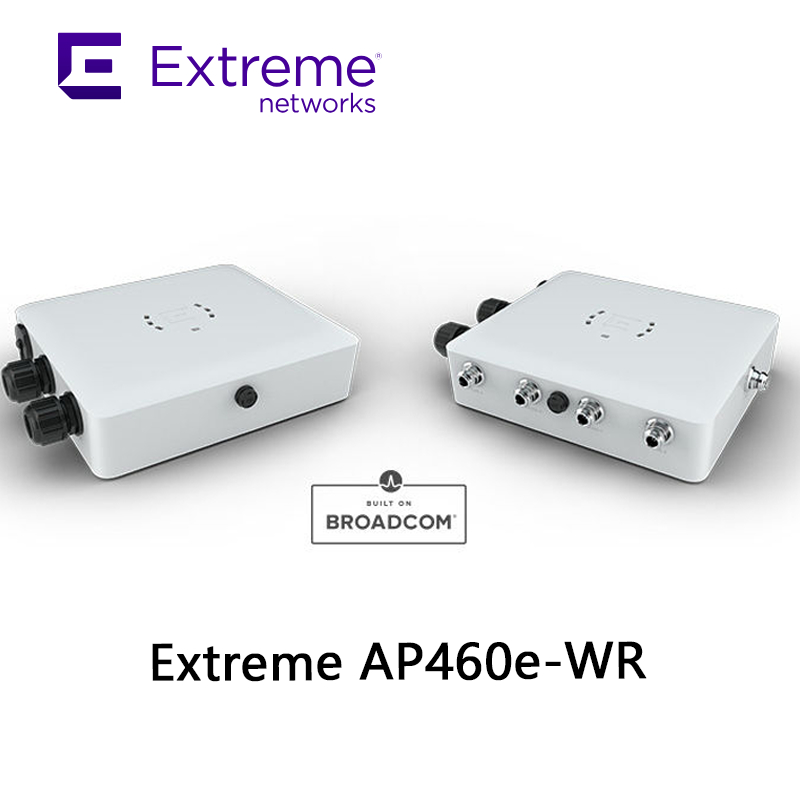

Wi-Fi 6 (802.11ax) Tri-Radio Outdoor Access Point with integrated or external antenna options
The AP460i/e is designed for harsh environments; from hurricane force winds to subzero temperature. The AP460i/e is IP67 outdoor rated and extends Extreme's Wi-Fi 6 coverage outdoors in a sleek form factor that is easy to install. Integrated GPS and BLE allows for state of the art location applications for asset tracking.
The AP460i/e provides high-efficiency, high-performance 802.11ax aggregate datarates up to 4.8 Gbps in the 5 GHz band and concurrent 2.4 Gbps in the 2.4 GHz band. Designed for high density environments, AP460i/e is powerful enough and smart enough to provide the highest level of client services without compromising security monitoring. Unlike other access points that scan only part time, the dedicated, dual-band sensor scans for rogue devices full time, eliminating the risk of vulnerability or attacks.
With more users, more devices, more things, more applications and more threats straining the infrastructure, the AP460i/e was engineered to meet those challenges. The AP460i/e combines powerful 802.11ax Wi-Fi 6 technology, advanced security and ML/AI management capabilities together into an enterprise class solution that allows you to deploy high speed, highly secure Wi-Fi into the toughest environments.
Advanced Radio Technology:
Tri-Radio Design
• 5GHz 4x4:4
• 2.4GHz 2x2:2
• Sensor 2x2:2 (2.4 GHz / 5 GHz)
High Density Environments
• Delivers exceptional end-user
experience even in the densest user
environments
WPA3 Support
• Includes the latest WPA3 Wi-Fi security
standard delivering robust protections
for users and IoT devices
Cellular Coexistence Filter (CCF)
• Minimizes the impact of interference
from cellular networks
Fully Functional over 802.3at
• Capable of operation over 802.3af
Smart Management Choices
• ExtremeCloud™ IQ Controller or VX/NX
controllers ideal for for on- premises
requirements
• Optional ExtremeCloud IQ visibility
supported via on-premises controller
Designed for Harsh Environments
• IP67 Outdoor Rated
• Extended temp range -40°C to +60°C
Smart Management Choices
• ExtremeCloud™ Controller or VX/NX
controllers ideal for on-premises
requirements
• Optional ExtremeCloud IQ visibility
supported via on-premises controller
The AP305C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifcations. Additionally, the AP305C/CX supports a stateful L2-L7 DPI frewall for context-based access security, Private Pre-Shared Key (PPSK), and much more.
Wi-Fi 6 (802.11ax) Technology
Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax
technology instead enhances Wi-Fi effciency as well as speed, taking Wi-Fi networks to an entirely new level. To learn more about 802.11ax.
Smart Sensor
Industry's first Dual-radio 802.11ax access point with Smart Sensor capability to optimally manage radios to provide the highest level of client
performance while simultaneously providing continuous RF monitoring for security threats.
The AP410i/e patent pending Smart-Sensor feature automates the provisioning of ADSP Sensors in customer setup without compromising their security performance. This feature intelligently selects and configures the radio on APs that must act as sensors to cover entire site from wireless security perspective reducing the burden of network engineers.
Management Analytics
In conjunction with Extreme Management system, cloud or on-premises, the AP305C/CX provides a very rich set of data displayed via context driven
widgets, representing historical data or a combination of historical and current data. This provides context-specifc granularity with perspective
views for locations, network, APs, individual client devices, and policy roles.In each context, administrators can adjust dashboards from a widget
library.
RF Monitoring
Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with SmartRF, a robust RF management system
with AI/ML like functionality. Built on 10 years of experience across thousands of large scale networks and millions of access points, SmartRF
algorithms manage channels, radios, load balancing, band steering, and many other attributes of the RF.
Integrated BLE
To support both IoT and Guest Engagement services, the AP505i integrates Bluetooth to connect with IoT devices with Thread wireless
or engage loyalty customers with Apple iBeacon. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and
conference attendees. This makes it ideal for businesses to advertise their app-download pages, captive portals, or site- specific information.
Radio Specifications
Max Users
• SSID per Radio/Total: 8/16
• Users per Radio/Total: 512/1024
802.11a
5.150–5.850 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM Modulation) Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
2.4–2.5GHz Operating Frequency
Direct-Sequence Spread-Spectrum (DSSS) Modulation Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
• 2.4–2.5GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n
• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
• 802.11n Modulation
• HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
• HT40 High-Throughput (HT) Support for 5 GHz
• A-MPDU and A-MSDU Frame Aggregation
• CSD and CDD
802.11ac
5.150–5.850 GHz Operating Frequency
802.11ac Modulation (256-QAM)
Rates (Mbps): MCS0 – MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80 support
TxBF (Transmit Beamforming)
802.11ax
5.150-5.850 GHz Operating Frequency
802.11ax Modulation (1024-QAM)
Dual-band OFDMA
Rates (Mbps): HE0 – HE11 (8Mbps –1200Mbps), NSS = 1-2
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80/VHT160 support
TxBF (Transmit Beamforming)
802.11ax (for 5 GHz Radio)
2.4-2.5 GHz and 5.150-5.850 GHz Operating Frequencies
802.11ax Modulation (1024-QAM)
Dual-band OFDMA
5G Rate : HE0-HE11 (8 Mbps – 4800 Mbps)
2.4G Rate: HE0-HE11 (8Mbps – 574 Mbps)
4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
HE20/HE40/HE80/HE160 support for 5 GHz
HE20/HE40 support for 2.4 GHz
DL SU-MIMO and MU-MIMO
TxBF (Transmit Beamforming)
Radios
BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant
Internal GPS - accuracy is 2.5m- 3m in open sky
Interfaces
100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE+ (Power
over Ethernet 802.3at) Port
10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
Power Specifications
IEEE 802.3at PoE+ Power
Power Options
Power Draw: Typical: 15.23W, Max: 19.78W
802.3at Power over Ethernet (PoE+) capable Gigabit Ethernet port (RJ-45
power input pins: Wires 4,5,7,8 or 1,2,3,6)
802.3af Power over Ethernet injector
Physical
10" x 7.5" x 2.5" (260mm x 192mm x 65mm)
AP460i: 3.7 lbs (1.7 kg)
AP460e: 3.9 lbs (1.8 kg)
AP460i - Internal Antennas
(2) Integrated single band, 2.4-2.5 GHz omnidirectional antennas
(4) Integrated single band, 5.1-5.8 GHz omnidirectional antennas
(2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional
antennas for Sensor
(1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
antennas for BLE
AP460e - External Antennas
8 Ntype connectors
1 Ntype connector for BLE
Mounting
Pole Mount with 15 degree tilt
12" Extension arm
10" Extension w/2-axis 80 degree tilt
Environmental
Operating: AP460i/e -40°C to 60°C (-40°F to 140°F)
Storage: -40°C to 70°C (-40°F to 158°F)
Humidity: 0% to 95% (non-condensing)
Wind Rating: 165 Mph sustained winds
Operational Shock: IEC60721-3-4, Class 4M3; ASTM D3332-99; MIL STD 810H
Method 516
Operation Vibration: ASTM D3580-95, IEC60721-3-4, Class 4M3 (IEC
60068-2-64)
Environmental Discharge
+/-8 kV contact and +/-15 kV air
Environmental Compliance
UL2043 – Plenum Rated
IOT Radio
• BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant
Regulatory Compliance
Product Safety Certifications
IEC 62368/60950-1, EN 62368/60950-1, USA 62368/60950-1, AS/NZS
62368/60950.1
Radio Approvals
FCC CFR 47 Part 15, Class B
ICES-003, Class B
FCC Subpart C 15.247
FCC Subpart E 15.407
RSS247
AS/NZS4268 + CISPR32
IEC/EN 60601-1-2
EN 62311
EN 50385
EN 301 489-1
EN 301 489-17
EN 55032, (Class B)
EN 55011, (Group 1, Class B)
EN 55024
EN 60601-1-2
EN 61000-3-2
EN 61000-3-3
EN 300 328
EN 301 893
EN 300 440
EN 50581
Support
1 year warranty
