Product Description
MCX654105A-HCAT
MCX654105A-HCAT

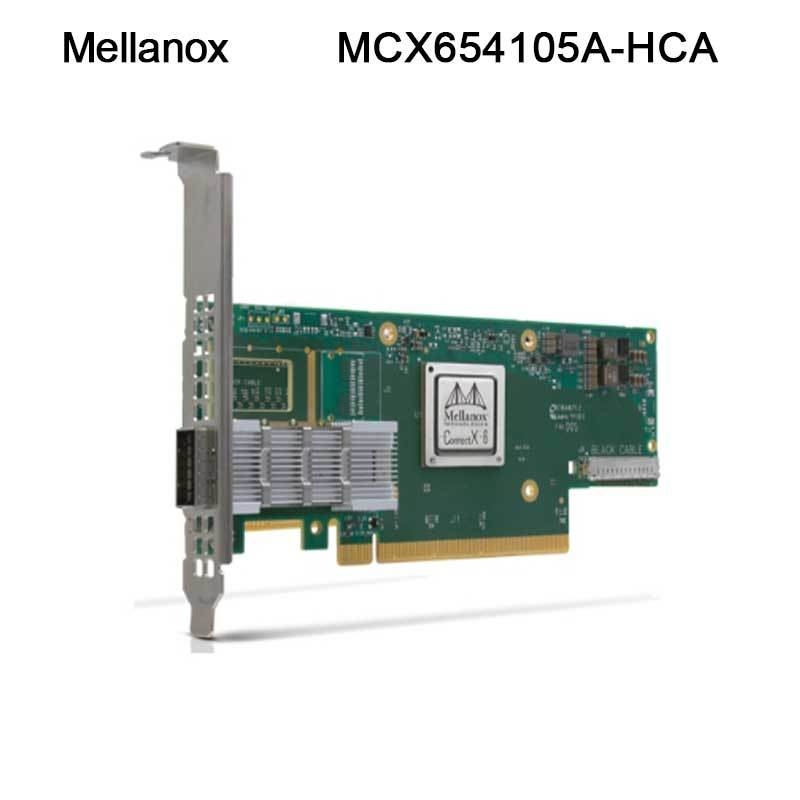

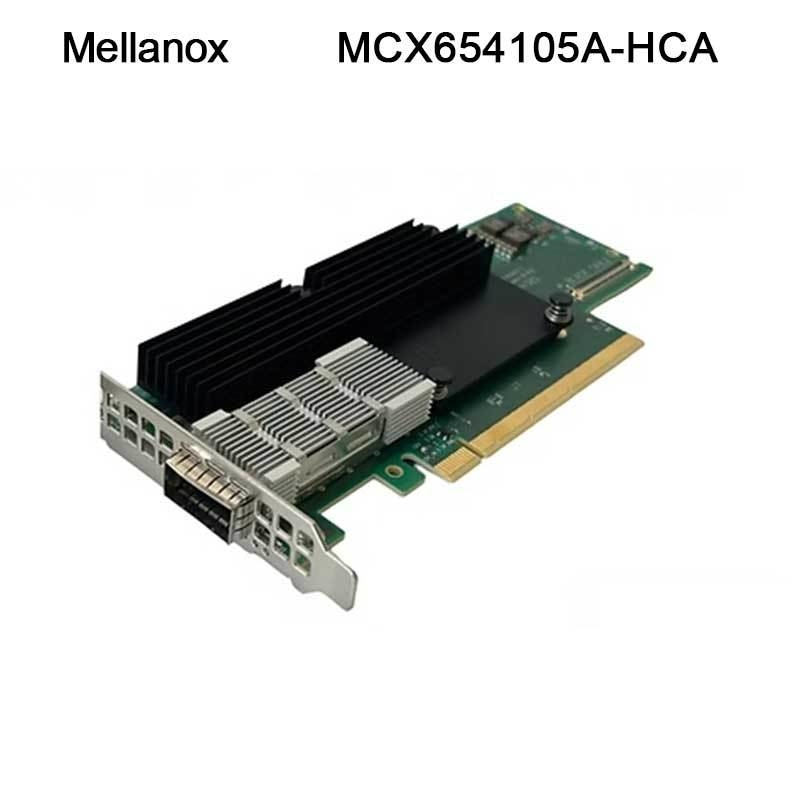

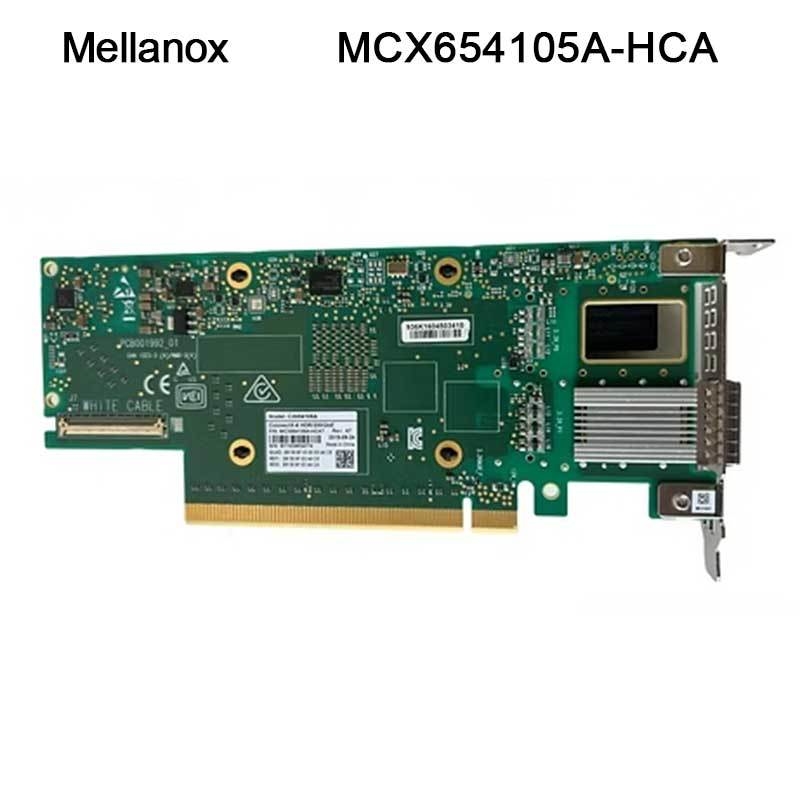

MCX654105A-HCAT ConnectX®-6 InfiniBand/Ethernet adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, Socket Direct 2x PCIe3.0/4.0x16, tall bracket
Complex workloads demand ultra-fast processing of high-resolution simulations, extreme-size datasets, and highly-parallelized algorithms.MCX654105A-HCAT
As these computing requirements continue to grow, Quantum InfiniBand—the world's only fully offloadable, In-Network Computing acceleration technology—provides the dramatic leap in performance needed to achieve unmatched results in high performance computing (HPC), AI, and hyperscale cloud infrastructures—with less cost and complexity.MCX654105A-HCAT
ConnectX®-6 InfiniBand smart adapter cards are a key element in the Quantum InfiniBand platform.MCX654105A-HCAT
ConnectX-6 provides up to two ports of 200Gb/s InfiniBand and Ethernet connectivity with extremely low latency, high message rate, smart offloads, and In-Network Computing acceleration that improve performance and scalability.MCX654105A-HCAT
MCX654105A-HCAT
MCX654105A-HCAT KEY FEATURES
> Up to 200Gb/s connectivity per port
> Max bandwidth of 200Gb/s
> Up to 215 million messages/sec
> Extremely low latency
> Block-level XTS-AES mode hardware encryption
> Federal Information Processing Standards (FIPS) compliant
> Supports both 50G SerDes (PAM4)- and 25G SerDes (NRZ)-based ports
> Best-in-class packet pacing with sub nanosecond accuracy
> PCIe Gen 3.0 and Gen 4.0 support
> In-Network Compute acceleration engines
> RoHS compliant
> Open Data Center Committee (ODCC) compatible
MCX653105A-HDAT
KEY APPLICATIONS
> Industry-leading throughput, low CPU utilization, and high message rate
> High performance and intelligent fabric for compute and storage infrastructures
> Cutting-edge performance in virtualized networks, including network function virtualization (NFV)
> Host chaining technology for economical rack design
> Smart interconnect for x86, Power, Arm, GPU, and FPGA-based compute and storage platforms
> Flexible programmable pipeline for new network flows
> Efficient service chaining enablement
> Increased I/O consolidation, reducing data center costs and complexity
|
NVIDIA SKU
|
Legacy OPN
|
Marketing Description
|
|
900-9X603-0016-DT0
|
MCX653105A-EFAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,100Gb/s(HDR100, EDR IB and 100GbE),single-port QSFP56,PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket
|
|
900-9X603-0056-DT0
|
MCX653106A-EFAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,100Gb/s(HDR100, EDR IBand100GbE),dual-port QSFP56,PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket
|
|
900-9X628-0016-ST0
|
MCX651105A-EDAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,100Gb/s(HDR100, EDR IB and 100GbE,single-port QSFP56,PCIe4.0 x8, tall bracket
|
|
900-9X6AF-0016-ST1
|
MCX653105A-ECAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,100Gb/s(HDR100, EDR IB and 100GbE),single-port QSFP56,PCIe3.0/4.0 x16, tall bracket
|
|
900-9X6AF-0056-MT1
|
MCX653106A-ECAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,100Gb/s(HDR100, EDR IB and 100GbE),dual-port QSFP56,PCIe3.0/4.0 x16, tall bracket
|
|
900-9X6B4-0058-DT0
|
MCX654106A-HCAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,HDR IB(200Gb/s) and 200GbE,dual-port QSFP56,Socket Direct 2x PCIe3.0/4.0x16, tall bracket
|
|
900-9X6AF-0018-SS0
|
MCX653105A-HDAL
|
ConnectX®-6 InfiniBand/Ethernet adapter card,HDR IB(200Gb/s) and 200GbE,single-port QSFP56,PCIe3.0/4.0 x16,cold plate for liquid-cooled Intel® Server System D50TNP platforms, tall bracket, ROHS R6
|
|
900-9X6AF-0058-SS0
|
MCX653106A-HDAL
|
ConnectX®-6 InfiniBand/Ethernet adapter card,HDR IB(200Gb/s) and 200GbE,dual-port QSFP56,PCIe3.0/4.0 x16,cold plate for liquid-cooled Intel® Server System D50TNP platforms, tall bracket, ROHS R6
|
|
900-9X0BC-001H-ST1
|
MCX683105AN-HDAT
|
ConnectX®-6 DE adapter card,HDR IB(200Gb/s),single-port QSFP,PCIe4.0 x16,no crypto, tall bracket
|
|
900-9X6B4-0056-DT0
|
MCX654106A-ECAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,100Gb/s(HDR100, EDR InfiniBand and 100GbE),dual-port QSFP56,Socket Direct 2x PCIe 3.0/4.0x16, tall bracket
|
|
900-9X6B4-0018-DT2
|
MCX654105A-HCAT
|
ConnectX®-6 InfiniBand/Ethernet adapter card,HDRIB(200Gb/s) and 200GbE,single-port QSFP56,Socket Direct 2x PCIe3.0/4.0x16, tall bracket
|
MCX654105A-HDAT Specifications
ConnectX®-6 InfiniBand/Ethernet adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, Socket Direct 2x PCIe3.0/4.0x16, tall bracket
|
physical
|

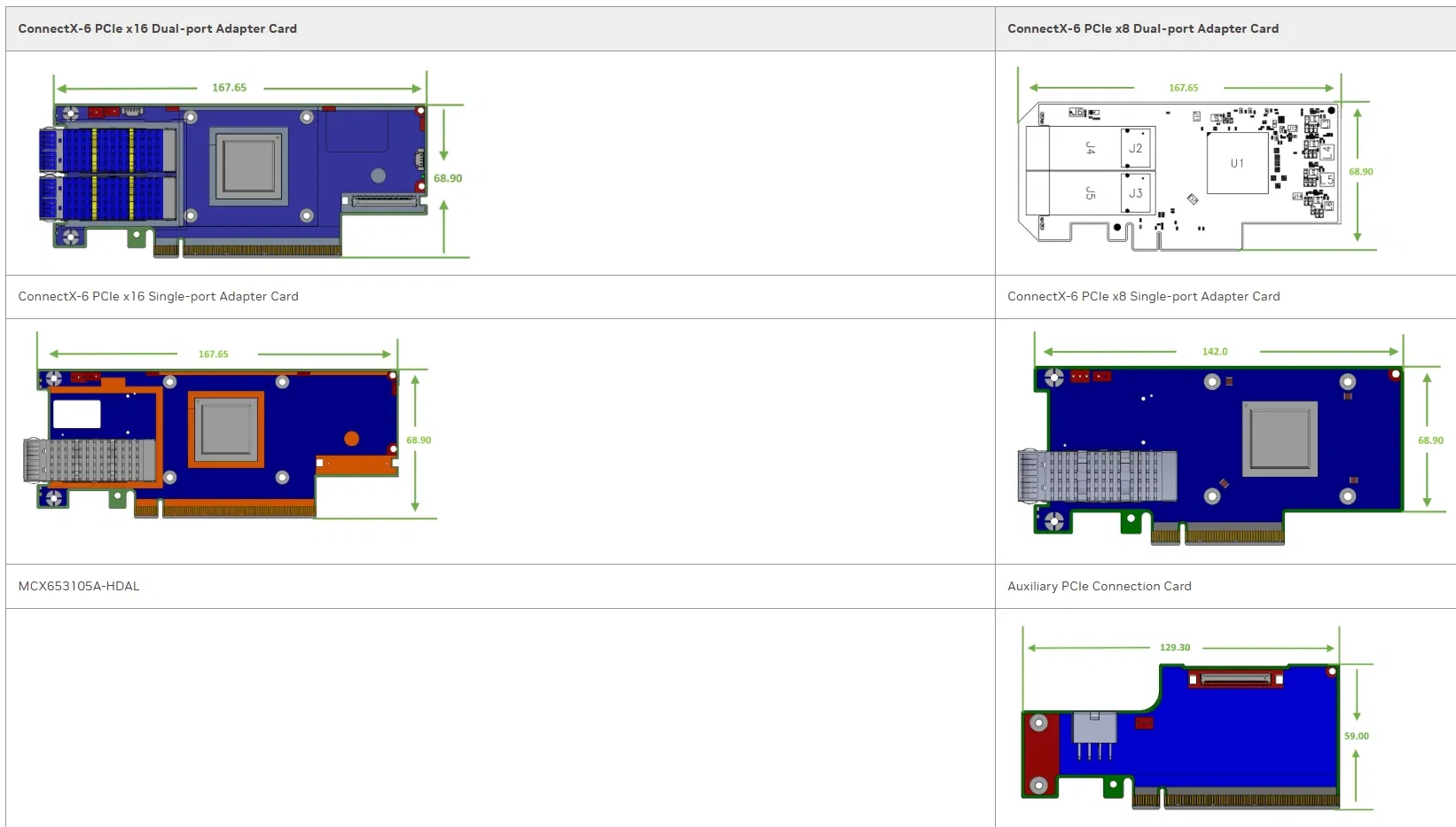

Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)
|
|
Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical)
|
|
Protocol Support
|
InfiniBand: IBTA v1.4a
Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane)
|
|
Ethernet: 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
|
|
Data Rate
|
InfiniBand
|
SDR/DDR/QDR/FDR/EDR/HDR100
|
|
Ethernet
|
1/10/25/40/50/100 Gb/s
|
|
PCIe Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible)
|
|
Power and Airflow
|
Voltage: 3.3Aux
Maximum current:100mA
|
|
Power
|
Cable
|
|
Typical Powerb
|
Passive Cables
|
15.6W
|
|
Maximum Power
|
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials)
|
|
Maximum power available through QSFP56 port: 5W
|
|
Airflow (LFM) /
Ambient Temperature
|
Cable Type
|
Airflow Direction
|
|
Heatsink to Port
|
Port to Heatsink
|
|
Passive Cables
|
300 LFM / 55°C
|
200 LFM / 35°C
|
|
NVIDIA Active 2.7W Cables
|
300 LFM / 55°C
|
200 LFM / 35°C
|
|
Environmental
|
Temperature
|
Operational
|
0°C to 55°C
|
|
Non-operational
|
-40°C to 70°Cc
|
|
Humidity
|
Operational
|
10% to 85% relative humidity
|
|
Non-operational
|
10% to 90% relative humidity
|
|
Altitude (Operational)
|
3050m
|
|
Regulatory
|
Safety: CB / cTUVus / CE
|
|
EMC: CE / FCC / VCCI / ICES / RCM / KC
|
|
RoHS: RoHS Compliant
|
