NVIDIA MFA1A00-C015 100G QSFP28 MMF AOC 100GbE Active Optical Cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFA1A00-C015 |
| Document: | MFA1A00-xxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Lead Time: | According To Stock |
| Technology: | Ethernet | Max Speed: | 100GbE |
| Length: | 15M | Connector Type: | QSFP28 |
| Highlight: | NVIDIA QSFP28 active optical cable,100GbE MMF optical cable,NVIDIA 100G AOC with warranty |
||
Product Description

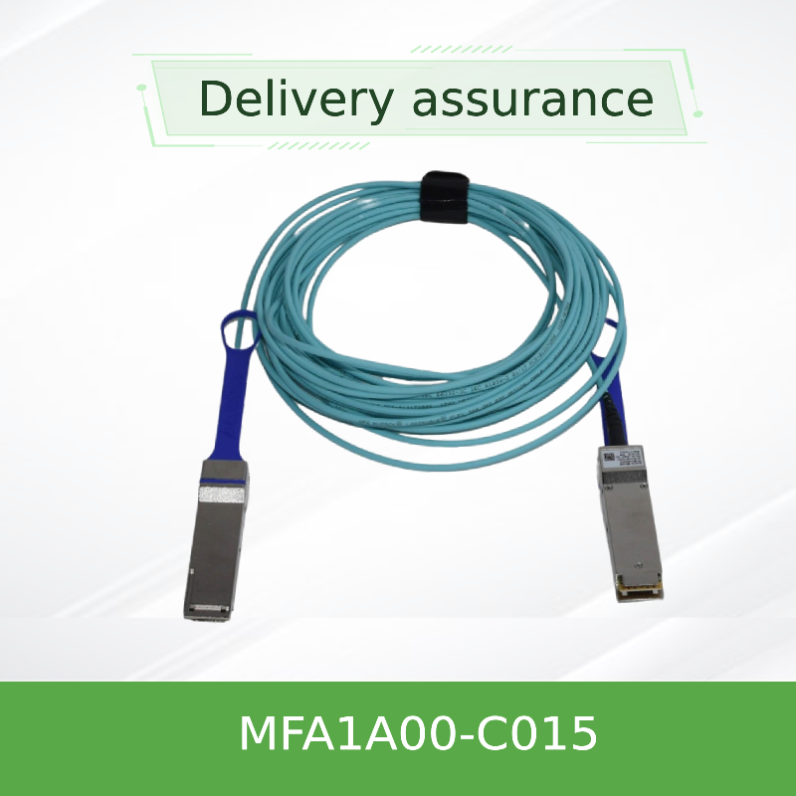

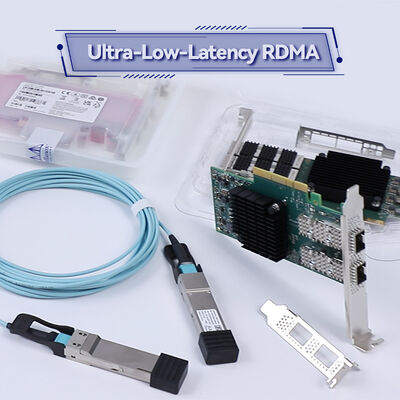

NVIDIA MFA1A00-C015 100G QSFP28 MMF AOC
High-performance 100Gb/s QSFP28 active optical cable designed for short- to medium-reach interconnects in data centers, supporting 100 Gigabit Ethernet and InfiniBand EDR systems.
Product Overview
The NVIDIA MFA1A00-C015 is a QSFP28 VCSEL-based active optical cable that provides 100Gb/s aggregate bandwidth over multimode fiber. It integrates four independent optical transceivers per end, each operating at up to 25.78Gb/s with NRZ modulation. Fully compliant with SFF-8665 and SFF-8636 standards, this cable supports hot-pluggable installation and I²C management with typical power consumption of only 2.2W per end.
Key Features
- Data rate: Up to 100Gb/s (4× 25.78Gb/s NRZ)
- Protocol support: 100GbE, InfiniBand EDR
- Reach: Up to 100m over multimode fiber
- Low power: 2.2W typical per end (with retiming)
- Hot-pluggable QSFP28 form factor, SFF-8665 compliant
- SFF-8636 I²C interface with digital diagnostic monitoring
- Programmable Rx output amplitude & pre-emphasis, Tx input equalizer
- RoHS compliant, Class 1 laser safety
Technology & Design
The MFA1A00-C015 employs VCSEL technology at 850nm wavelength coupled with high-speed multimode fiber. Each lane features independent retiming for both transmit and receive paths, enabling superior signal integrity. The cable integrates digital diagnostic monitoring for real-time tracking of optical power, temperature, voltage, and bias current. Programmable Tx equalization and Rx output amplitude/pre-emphasis allow fine-tuning for varying host board conditions. LSZH jacket ensures safety in data center environments.
Typical Deployments
- 100GbE data centers: Connect top-of-rack switches to servers and storage systems
- InfiniBand EDR fabrics: High-performance computing clusters requiring low-latency interconnect
- Cloud service providers: Cost-effective 100G connectivity for public and private clouds
- AI/ML training clusters: High-bandwidth, low-latency connections for GPU-based systems
- Enterprise campus networks: Aggregation links between distribution and core switches
Compatibility
Switches: NVIDIA Spectrum series, NVIDIA Quantum series, and other QSFP28-equipped switches supporting 100GbE or InfiniBand EDR.
Adapters / DPUs: ConnectX-5, ConnectX-6, ConnectX-7, BlueField-2/3 with QSFP28 ports.
Protocols: 100GbE (IEEE 802.3bm) and InfiniBand EDR.
Compatibility is system-dependent; refer to the system level product qualification report for validated configurations.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Active Optical Cable (AOC), QSFP28 |
| Data Rate | 100Gb/s (4× 25.78Gb/s NRZ) |
| Fiber Type | Multimode (MMF) |
| Wavelength | 850nm VCSEL |
| Reach (OM3/OM4) | Up to 100m |
| Supply Voltage | 3.3V (3.135V - 3.465V) |
| Power Dissipation (per end, no retiming) | 1.5W typical / 1.8W max |
| Power Dissipation (per end, with retiming) | 2.2W typical / 2.5W max |
| Operating Case Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity (Operating) | 5% - 85% |
| Connector Type | QSFP28 (SFF-8665 compliant) |
| Management Interface | I²C (SFF-8636) with DDM |
| Digital Diagnostics (DDM) | Tx/Rx power, temperature, voltage, bias current |
| Bit Error Rate (BER) | < 1E-15 (PRBS31, IEEE 802.3bm) |
| Regulatory | CB, cTUVus, CE, FCC Class A, ICES, RCM, VCCI, Class 1 laser |
| Length (C015) | 15 meters |
Power consumption varies based on retiming configuration. For lower bit rates (without retiming), power consumption is reduced.
Selection Guide
| Ordering Part Number | Description | Length | Protocol |
|---|---|---|---|
| MFA1A00-E001 | 100G QSFP28 AOC, IB EDR | 1 m | InfiniBand EDR |
| MFA1A00-E003 | 100G QSFP28 AOC, IB EDR | 3 m | InfiniBand EDR |
| MFA1A00-E005 | 100G QSFP28 AOC, IB EDR | 5 m | InfiniBand EDR |
| MFA1A00-E010 | 100G QSFP28 AOC, IB EDR | 10 m | InfiniBand EDR |
| MFA1A00-C015 | 100G QSFP28 AOC, 100GbE | 15 m | 100GbE |
| MFA1A00-C020 | 100G QSFP28 AOC, 100GbE | 20 m | 100GbE |
| MFA1A00-C030 | 100G QSFP28 AOC, 100GbE | 30 m | 100GbE |
| MFA1A00-C050 | 100G QSFP28 AOC, 100GbE | 50 m | 100GbE |
| MFA1A00-C100 | 100G QSFP28 AOC, 100GbE | 100 m | 100GbE |
For InfiniBand EDR variants, use the MFA1A00-Exxx series. For 100GbE, use the MFA1A00-Cxxx series. Other lengths available upon request.
Advantages
- Extended reach: Significantly longer than passive copper DACs, up to 100m
- Low power consumption: 2.2W per end reduces overall data center power budget
- Flexible rate support: Selectable retiming supports both 25G and lower bit rates
- Robust signal integrity: Programmable equalization and retiming ensure reliable link performance
- Easy deployment: Hot-pluggable QSFP28 form factor with push-pull latch
- Digital diagnostics: Real-time monitoring of link health and performance
Frequently Asked Questions
Q: What is the difference between AOC and DAC?
A: An AOC (Active Optical Cable) uses optical fiber with integrated transceivers to achieve longer reach (up to 100m) than passive copper DACs (typically ≤5m), while offering lower weight and better EMI immunity.
Q: Can I use this cable with InfiniBand EDR switches?
A: Yes, the MFA1A00 series supports both InfiniBand EDR (E-series) and 100GbE (C-series). For EDR, use the MFA1A00-EXXX variants.
Q: What is the difference between C-series and E-series?
A: The C-series is optimized for 100GbE applications, while the E-series is optimized for InfiniBand EDR. Both use the same physical hardware but may have different firmware configurations.
Q: What is the minimum bend radius of this cable?
A: The minimum bend radius is 30 mm.
Q: Is the cable hot-pluggable?
A: Yes, it is fully hot-pluggable and supports live insertion/removal without powering down the host system.
Q: What is the power consumption without retiming?
A: Without retiming, power consumption is 1.5W typical per end, making it ideal for lower-speed or power-sensitive applications.
Handling Precautions
- Keep protective dust caps on connectors until installation to prevent contamination
- Use approved optical connector cleaners before mating to ensure low insertion loss
- Avoid bending the cable tighter than the 30 mm minimum bend radius
- Observe standard ESD precautions during installation and handling
- Do not pull on the connectors; use the pull-tab or latch for insertion/removal
About Hong Kong Starsurge Group
Hong Kong Starsurge Group Co., Limited is a technology-driven provider of network hardware, IT services, and system integration solutions. Since 2008, we have served customers worldwide with networking equipment including switches, NICs, wireless access points, controllers, cables, and optical modules. Our experienced sales and technical teams support diverse industries such as government, healthcare, manufacturing, education, finance, and enterprise. We deliver customized solutions, global logistics, and multilingual support - all built on a customer-first commitment to reliability, performance, and scalability.
Key Facts
| Part number | MFA1A00-C015 |
| Form factor | QSFP28 (SFF-8665) |
| Data rate | 100Gb/s (4×25G NRZ) |
| Length | 15 m |
| Protocol | 100GbE |
| Power (with retiming) | 2.2W typical / end |
| Reach | Up to 100m |
| Jacket | LSZH, Aqua |
Compatibility Matrix
| Device Type | Supported Platforms |
|---|---|
| Ethernet Switches | NVIDIA Spectrum SN2000/SN3000/SN4000 series, third-party 100G switches |
| InfiniBand Switches | NVIDIA Quantum, SB7800, SB7900 series (with E-series variants) |
| Adapters / DPUs | ConnectX-5, ConnectX-6, ConnectX-7, BlueField-2/3 |
| Third-party | QSFP28-equipped switches supporting 100G (verify compliance) |
Buyer Checklist
- Confirm your switch/adapter port supports QSFP28 and 100G NRZ
- Verify the required cable length (C015 = 15m)
- Ensure your system supports the required protocol (100GbE or InfiniBand EDR)
- Determine if retiming is required for your application (enabled by default for 100G)
- Check power budget and cooling for the QSFP28 module
- Review the system level qualification report for validated configurations
