200G QSFP56 Active Optical Cable for NVIDIA SN3700/SN4600 Switches MFS1S00-H015V
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H015V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 15 Meters |
| Model: | MFS1S00-H015V | ||
| Highlight: | 200G QSFP56 optical cable for NVIDIA switches,QSFP56 active optical cable with warranty,NVIDIA SN3700 SN4600 compatible optical cable |
||
Product Description

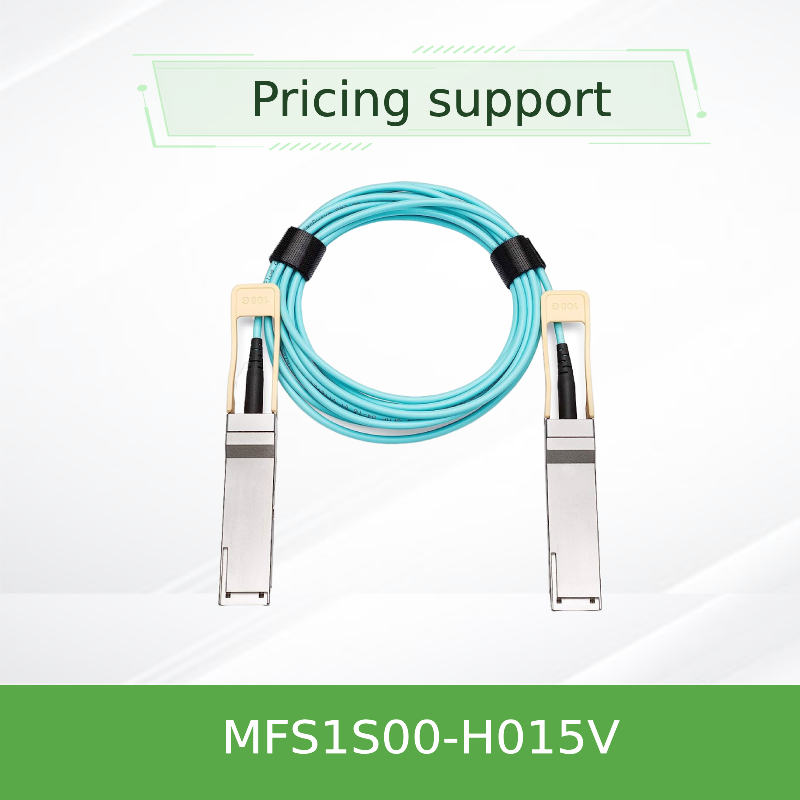

200G QSFP56 Active Optical Cable for NVIDIA SN3700/SN4600 Switches
The NVIDIA MFS1S00-H015V is a high-performance 200Gb/s QSFP56 active optical cable (AOC) designed for short-reach interconnects in data centers. This VCSEL-based multimode fiber AOC supports 4× 50Gb/s PAM4 modulation and provides reliable, power-efficient connectivity for InfiniBand HDR and 200 Gigabit Ethernet systems.
Product Overview
The NVIDIA MFS1S00-H015V is a QSFP56 VCSEL-based active optical cable that provides 200Gb/s aggregate bandwidth over multimode fiber. It integrates four independent optical transceivers per end, each operating at up to 50Gb/s with PAM4 modulation. Fully compliant with SFF-8665 and SFF-8636 standards, this cable supports hot-pluggable installation and I²C management while consuming only 5.0W typical power per end with retiming enabled.
Key Features
- Data rate: Up to 200Gb/s (4× 50Gb/s PAM4)
- Protocol support: InfiniBand HDR, 200GbE
- Reach: Up to 100m over multimode fiber
- Low power: 5.0W typical per end (with retiming)
- Hot-pluggable: QSFP56 form factor, SFF-8665 compliant
- Management: SFF-8636 I²C interface with DDM
- Programmable: Rx output amplitude & pre-emphasis
- Compliance: RoHS, Class 1 laser safety
Technology & Design
The MFS1S00-H015V employs VCSEL (Vertical Cavity Surface-Emitting Laser) technology at 850nm wavelength coupled with high-speed multimode fiber. Each lane features independent retiming for both transmit and receive paths, enabling superior signal integrity. The cable integrates digital diagnostic monitoring (DDM) for real-time tracking of optical power, temperature, voltage, and bias current, with programmable Tx equalization and Rx output amplitude/pre-emphasis for fine-tuning.
Typical Deployments
- InfiniBand HDR fabrics: Connect switches to servers and storage in HPC clusters
- 200GbE aggregation: Link SN3700 and SN4600 switches in top-of-rack or leaf-spine architectures
- Data center interconnects: Short-reach (up to 100m) links between racks or within a row
- AI/ML training clusters: Low-latency, high-bandwidth connectivity for GPU-based systems
Compatibility
Switches: NVIDIA Spectrum SN3700, SN4600 series and other QSFP56-equipped switches supporting 200G InfiniBand or Ethernet.
Adapters / DPUs: ConnectX-6, ConnectX-7, BlueField-2/3 with QSFP56 ports.
Protocols: InfiniBand HDR (100G/200G) and 200GbE (IEEE 802.3bs).
Adapters / DPUs: ConnectX-6, ConnectX-7, BlueField-2/3 with QSFP56 ports.
Protocols: InfiniBand HDR (100G/200G) and 200GbE (IEEE 802.3bs).
Compatibility is system-dependent; refer to the system level product qualification report for validated configurations.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Active Optical Cable (AOC), QSFP56 |
| Data Rate | 200Gb/s (4× 50Gb/s PAM4) |
| Fiber Type | Multimode (MMF) |
| Wavelength | 850nm VCSEL |
| Reach (OM3/OM4) | Up to 100m |
| Supply Voltage | 3.3V (3.135V - 3.465V) |
| Power Dissipation (per end, with retiming) | 5.0W typical |
| Operating Case Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity (Operating) | 5% - 85% |
| Connector Type | QSFP56 (SFF-8665 compliant) |
| Management Interface | I²C (SFF-8636) |
| Digital Diagnostics (DDM) | Tx/Rx power, temperature, voltage, bias current |
| Regulatory | CB, cTUVus, CE, FCC Class A, ICES, RCM, VCCI, Class 1 laser |
| Length (H015V) | 15 meters |
Selection Guide
| Ordering Part Number | Description | Length |
|---|---|---|
| MFS1S00-H003V | 200G QSFP56 AOC, IB HDR / 200GbE | 3 m |
| MFS1S00-H005V | 200G QSFP56 AOC, IB HDR / 200GbE | 5 m |
| MFS1S00-H010V | 200G QSFP56 AOC, IB HDR / 200GbE | 10 m |
| MFS1S00-H015V | 200G QSFP56 AOC, IB HDR / 200GbE | 15 m |
| MFS1S00-H020V | 200G QSFP56 AOC, IB HDR / 200GbE | 20 m |
| MFS1S00-H030V | 200G QSFP56 AOC, IB HDR / 200GbE | 30 m |
| MFS1S00-H050V | 200G QSFP56 AOC, IB HDR / 200GbE | 50 m |
| MFS1S00-H100V | 200G QSFP56 AOC, IB HDR / 200GbE | 100 m |
For other lengths or custom options, please contact our sales team.
Advantages
- Extended reach: Significantly longer than passive copper DACs, up to 100m
- Low power consumption: 5.0W per end reduces overall data center power budget
- Flexible rate selection: Supports both NRZ (EDR) and PAM4 (HDR) modes via rate select
- Robust signal integrity: Programmable equalization and retiming ensure reliable link performance
- Easy deployment: Hot-pluggable QSFP56 form factor with push-pull latch
Service & Support
As an authorized NVIDIA Mellanox partner, Hong Kong Starsurge Group provides:
- Technical pre-sales consultation for InfiniBand and Ethernet fabric design
- Global logistics with real-time tracking and customs clearance support
- Standard 1-year warranty against manufacturing defects
- Firmware compatibility advisory for NVIDIA switch and adapter platforms
- Multilingual support (English, Mandarin, Cantonese) via email or phone
Frequently Asked Questions
Q: What is the difference between AOC and DAC?
A: An AOC (Active Optical Cable) uses optical fiber with integrated transceivers to achieve longer reach (up to 100m) than passive copper DACs (typically ≤5m), while offering lower weight and better EMI immunity.
Q: Can I use this cable with 100G or 40G switches?
A: Yes, it can operate in NRZ mode (25.78125 Gb/s) for 100G or 40G applications, but it is optimized for 200G PAM4. Rate select registers must be configured accordingly.
Q: What is the bend radius of this cable?
A: The minimum bend radius is 30 mm.
Q: Is the cable hot-pluggable?
A: Yes, it is fully hot-pluggable and supports live insertion/removal without powering down the host system.
Handling Precautions
- Keep protective dust caps on connectors until installation to prevent contamination
- Use approved optical connector cleaners before mating to ensure low insertion loss
- Avoid bending the cable tighter than the 30 mm minimum bend radius
- Observe standard ESD precautions during installation and handling
- Do not pull on the connectors; use the pull-tab or latch for insertion/removal
About Hong Kong Starsurge Group
Hong Kong Starsurge Group Co., Limited is a technology-driven provider of network hardware, IT services, and system integration solutions. Since 2008, we have served customers worldwide with networking equipment including switches, NICs, wireless access points, controllers, cables, and optical modules. Our experienced sales and technical teams support diverse industries such as government, healthcare, manufacturing, education, finance, and enterprise. We deliver customized solutions, global logistics, and multilingual support - all built on a customer-first commitment to reliability, performance, and scalability.
Key Facts
- Part number: MFS1S00-H015V
- Form factor: QSFP56 (SFF-8665)
- Data rate: 200Gb/s (4×50G PAM4)
- Reach: Up to 100m (OM4)
- Protocols: InfiniBand HDR, 200GbE
- Power: 5.0W typical per end
Compatibility Matrix
| Device Type | Supported Platforms |
|---|---|
| InfiniBand Switches | NVIDIA Quantum-2, SB7800, SB7900 series |
| Ethernet Switches | NVIDIA Spectrum SN3700, SN4600, SN4700 |
| Adapters / DPUs | ConnectX-6, ConnectX-7, BlueField-2/3 |
| Third-party | QSFP56-equipped switches supporting 200G (verify compliance) |
Buyer Checklist
- Confirm your switch/adapter port supports QSFP56 and 200G PAM4 or NRZ
- Verify required cable length (H015V = 15m)
- Ensure your system supports the required protocol (InfiniBand HDR or 200GbE)
- Check power budget and cooling for the QSFP56 module
- Review the system level qualification report for validated configurations
