NVIDIA Mellanox MFP7E20-N010 200G QSFP56 SR4 Optical Transceiver MPO-12 APC 50m OM4
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E20-N010 |
| Document: | MFP7E20-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MFP7E20-N010 | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Tensile Strength: | 1000N<10000N | Certification: | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material: | PVC | Length: | 10m |
| Data Rate: | 400GB/S | Origin: | India / Israel / China |
| Highlight: | NVIDIA Mellanox 200G QSFP56 transceiver,Mellanox MFP7E20-N010 SR4 optical module,QSFP56 SR4 transceiver MPO-12 APC |
||
Product Description
Product Overview

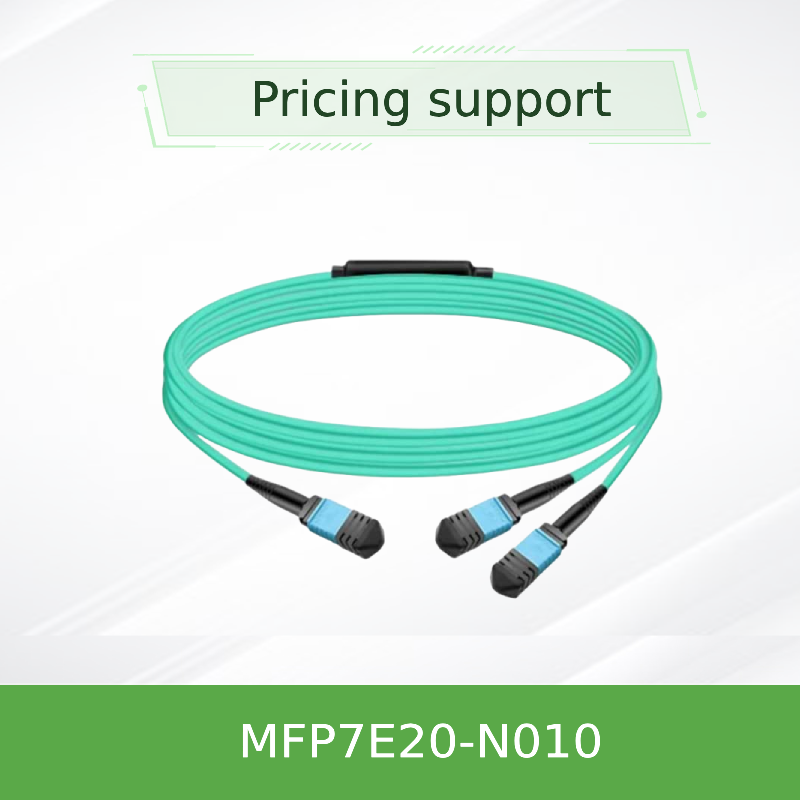

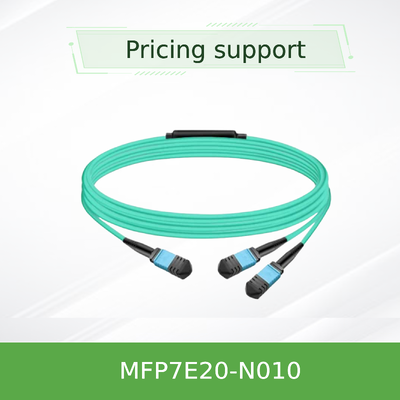

The Mellanox MFP7E20-N010 is a passive optical splitter cable that converts a twin-port OSFP 800G transceiver interface into two independent 200G/400G links. Using 8 active multimode fibers (50/125µm) in an MPO-12/APC to dual MPO-12/APC breakout configuration, it provides a cost-efficient, low-loss solution for connecting top-of-rack switches to ConnectX-7 adapters and BlueField-3 DPUs. The angled physical contact (APC) polish minimizes back reflections, ensuring stable operation in high-speed PAM4 links.
Key Features
- Breakout capability: 1× MPO-12/APC to 2× MPO-12/APC for dual 200G/400G outputs
- Multimode fiber: 50/125µm OM3 (≤30m) / OM4 (≤50m) with Aqua LSZH jacket
- Type-B crossover wiring: Directly mates TX to RX for straight-through transceiver pairing
- Low insertion loss: ≤0.35 dB + 0.0004×L (dB) per connector end face
- APC polish (8°): Reduces optical back reflection to ≥35 dB return loss
- Push-pull latching: Quick release, easy installation in dense ports
- Compliance: Telcordia GR-1435, IEC 61754-7, RoHS, Class 1 laser safety
- Protocol support: InfiniBand HDR, 200G/400G Ethernet, NVLink
Technology & Design
The MFP7E20-N010 leverages NVIDIA's precision optical engineering. The MPO-12/APC connectors feature alignment holes that mate with transceiver guide pins, ensuring exact fiber alignment. The 8-degree angled polish eliminates Fresnel reflections that can cause signal distortion in PAM4 modulation. Each cable is factory-tested for insertion loss, return loss, and polarity. The LSZH (low smoke zero halogen) jacket reduces toxic emissions in fire scenarios, making it suitable for data center environments.
Typical Deployments
- Switch-to-Server: Connect NVIDIA Spectrum-4 or Quantum-2 switches to ConnectX-7 NICs and BlueField-3 DPUs in compute/storage racks
- 400G to 2×200G breakout: Use with twin-port OSFP DR8 transceivers to split into two 200G links for dual servers
- High-performance computing (HPC): Low-latency interconnection for AI training clusters and distributed storage
- Data center inter-rack: Short-reach links (up to 50m) with patch panel integration
Compatibility
Transceivers: NVIDIA MMA4Z00-NS (twin OSFP), MMA4Z00-NS400 (OSFP), MMA1Z00-NS400 (QSFP112) - all with MPO-12/APC interface.
Switches / Adapters: NVIDIA Spectrum-4, Quantum-2, ConnectX-7, BlueField-3, and any 400G/200G port that accepts OSFP/QSFP112 with MPO-12/APC.
Fiber type: Multimode OM3 (≤30m) or OM4 (≤50m). Aqua jacket.
Switches / Adapters: NVIDIA Spectrum-4, Quantum-2, ConnectX-7, BlueField-3, and any 400G/200G port that accepts OSFP/QSFP112 with MPO-12/APC.
Fiber type: Multimode OM3 (≤30m) or OM4 (≤50m). Aqua jacket.
Note: Cannot be mixed with UPC (blue) connectors - APC only.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Passive optical splitter cable, MPO-12/APC to 2×MPO-12/APC |
| Fiber Count | 8 active (4 TX + 4 RX) + 4 inactive strength members |
| Fiber Type | 50/125µm multimode OM3 (≤30m) / OM4 (≤50m) |
| Connector Polish | Angled Physical Contact (APC), 8° |
| Insertion Loss (per end) | ≤0.35 dB + 0.0004×L (L in meters) |
| Return Loss | ≥35 dB |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity (non-condensing) | 10% - 85% RH |
| Jacket Material | LSZH (Low Smoke Zero Halogen), Aqua, OFNR |
| Minimum Bend Radius | 30 mm (anywhere on cable) |
| Cable Diameter | 3.0 ± 0.2 mm |
| Wiring Topology | Type-B (crossover) |
| Regulatory | CB, cTUVus, CE, FCC Class A, ICES, RCM, VCCI, Class 1 laser (IEC 60825-1) |
| Length (N010) | 10 meters (custom lengths available) |
Selection Guide
| Ordering Part Number | Description | Length |
|---|---|---|
| MFP7E20-N003 | MMF, MPO-12 APC to 2×MPO-12 APC | 3 m |
| MFP7E20-N005 | MMF, MPO-12 APC to 2×MPO-12 APC | 5 m |
| MFP7E20-N007 | MMF, MPO-12 APC to 2×MPO-12 APC | 7 m |
| MFP7E20-N010 | MMF, MPO-12 APC to 2×MPO-12 APC | 10 m |
| MFP7E20-N015 | MMF, MPO-12 APC to 2×MPO-12 APC | 15 m |
| MFP7E20-N020 | MMF, MPO-12 APC to 2×MPO-12 APC | 20 m |
| MFP7E20-N030 | MMF, MPO-12 APC to 2×MPO-12 APC | 30 m |
| MFP7E20-N050 | MMF, MPO-12 APC to 2×MPO-12 APC | 50 m |
For lengths not listed, please contact our sales team for custom options.
Key Advantages
- Space-efficient: Breakout design reduces port usage on high-density switches
- Superior signal integrity: APC polish and precision ferrule alignment lower bit error rates in PAM4
- Rugged and reliable: Factory-tested for IL/RL, thermal cycling, and tensile strength
- Eco-conscious: LSZH jacket meets strict fire safety and environmental standards
- Future-ready: Supports 200G per lane, scalable to 800G with twin-port OSFP
Compatibility Matrix
| Transceiver Type | Port Configuration | Data Rate |
|---|---|---|
| NVIDIA MMA4Z00-NS (OSFP) | Twin port, 2×MPO-12 APC | 800G (2×400G) |
| NVIDIA MMA4Z00-NS400 (OSFP) | Single port, MPO-12 APC | 400G |
| NVIDIA MMA1Z00-NS400 (QSFP112) | Single port, MPO-12 APC | 400G |
| Third-party OSFP/QSFP112 | MPO-12 APC interface | 200G/400G (verify IL) |
Key Facts
Part number: MFP7E20-N010
Connector type: MPO-12/APC (female)
Breakout ratio: 1 → 2 (dual 200G/400G)
Max reach: 50 m (OM4), 30 m (OM3)
Fiber core: 50/125µm multimode
Protocols: Ethernet, InfiniBand, NVLink
Buyer Checklist
- Confirm your transceiver port is MPO-12/APC (not UPC)
- Verify required cable length (N010 = 10m)
- Ensure your fiber plant is OM3 or OM4 multimode
- Check that your switch/adapter supports Type-B polarity
- Review the insertion loss budget of your link (including patch panels)
Frequently Asked Questions
Q: What is the difference between MFP7E20-N010 and a standard MPO-12 cable?
A: It is a 1-to-2 splitter cable with Type-B crossover, specifically designed to split a twin-port OSFP 800G transceiver into two 200G/400G links. Standard MPO cables are typically straight-through.
Q: Can I use this cable with 100G or 40G transceivers?
A: No, it is optimized for 200G/400G PAM4 signaling. It may not meet the insertion loss requirements for legacy NRZ optics.
Q: What is the maximum supported distance?
A: 50 meters over OM4 fiber (with two patch panel junctions). For OM3, the limit is 30 meters.
Q: Is the cable compatible with QSFP-DD or SFP-DD?
A: It interfaces with MPO-12/APC transceivers; QSFP-DD and SFP-DD typically use different connectors (e.g., MPO-16 or LC). Please verify your transceiver type.
Handling Precautions
- Keep dust caps on connectors until the moment of installation to prevent contamination
- Always clean both the cable ferrule and transceiver receptacle with an approved optical cleaner before mating
- Do not bend the cable tighter than the 30 mm minimum radius
- Avoid exposure to liquids or solvents; LSZH jacket is not chemical-resistant to all substances
- Observe standard ESD precautions during handling (though the cable is passive, it mates to ESD-sensitive transceivers)
Service & Support
As an authorized NVIDIA Mellanox partner, Hong Kong Starsurge Group offers:
- Technical pre-sales consultation for deployment architecture
- Global shipping with tracking and customs support
- Standard 1-year warranty against manufacturing defects
- Firmware/compatibility advisory for NVIDIA Spectrum and Quantum platforms
- Multilingual support (English, Mandarin, Cantonese) via email or phone
