Category 6 U/UTP Network Cable with 24AWG Solid Conductors 4 Pair Count and 305 m Length for High-Speed Data Transmission
Product Details:
| Brand Name: | commscope |
| Model Number: | 1427070-2 |
| Document: | P360_1427070-2_external.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Reel in box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| ANSI/TIA Category: | 6 | Cable Component Type: | Horizontal |
|---|---|---|---|
| Cable Type: | U/UTP (unshielded) | Conductor Type, Singles: | Solid |
| Conductors, Quantity: | 8 | Jacket Color: | White |
| Pairs, Quantity: | 4 | Separator Type: | Isolator |
| Highlight: | 24AWG Network Cable,4 Pair Count Ethernet Cable,305 m Length Category 6 U/UTP Cable |
||
Product Description
CommScope NETCONNECT Category 6 U/UTP Cable - 1427070-2
Premium Performance Network Cable for Modern Infrastructure
This high-performance Category 6 U/UTP cable delivers exceptional data transmission capabilities with comprehensive safety features. Engineered for reliability in demanding environments, this network cable supports high-speed networking applications while meeting stringent environmental standards.
Key Benefits:
- Optimized for Power over Ethernet (PoE) applications up to IEEE 802.3bt Type 4 standards
- Low Smoke Zero Halogen (LSZH) jacket enhances safety in confined spaces
- Superior electrical characteristics ensure reliable high-speed data transmission
- 305-meter reel length minimizes connections in large deployments
- Comprehensive regulatory compliance across international markets
Product Characteristics

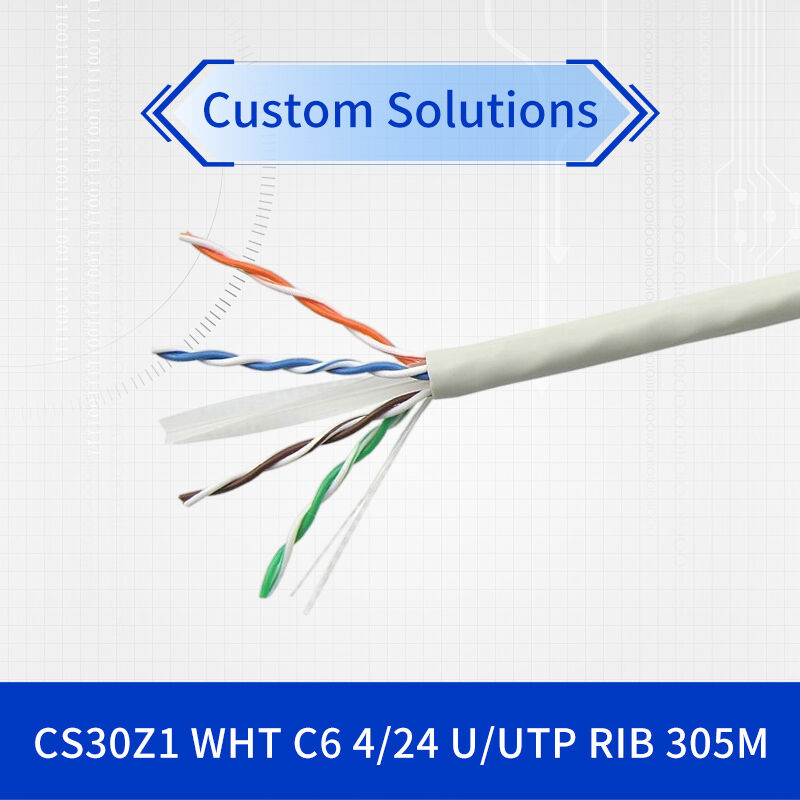

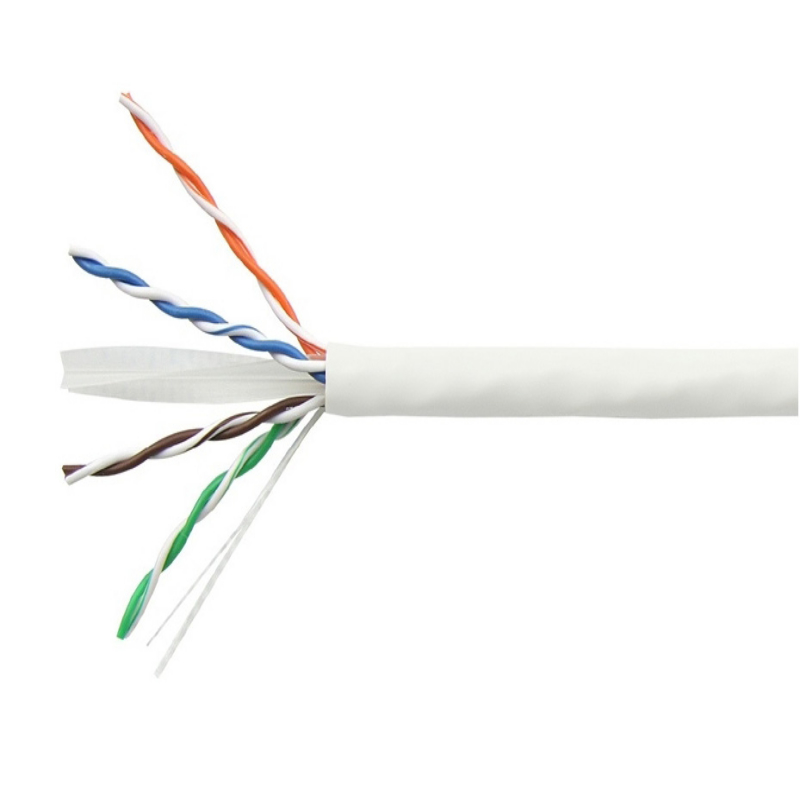

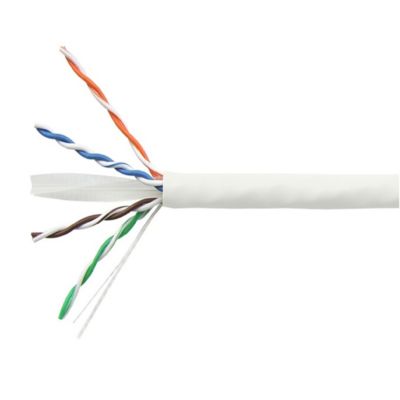

- Construction: Unshielded Twisted Pair (U/UTP) with internal isolator
- Conductor: 24 AWG solid bare copper for optimal signal integrity
- Jacket: Low Smoke Zero Halogen (LSZH) material in white
- Pair Configuration: 4 twisted pairs with polyolefin insulation
- Packaging: Reel-in-box for protected storage and easy deployment
Technical Standards & Compliance
This Category 6 U/UTP cable is engineered to meet or exceed multiple industry standards:
- ANSI/TIA-568.2-D for structured cabling systems
- IEEE 802.3bt (Type 4) for high-power PoE applications
- IEC 60754-2 for acid gas emission testing
- IEC 60332-1 for flame propagation characteristics
- IEC 61034-2 for smoke density measurement
- RoHS, REACH, and China RoHS compliant
Performance Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Category | 6 U/UTP | - |
| Conductor Gauge | 24 | AWG |
| Characteristic Impedance | 100 ±15 | ohm |
| Nominal Velocity of Propagation | 68 | % |
| Maximum Operating Voltage | 80 | V |
| Cable Length | 305 | m |
| Operating Temperature | -20 to +60 | °C |
Application Environments
This versatile network cable is ideal for various deployment scenarios:
- Enterprise Networks: Horizontal cabling for office buildings and corporate campuses
- Educational Institutions: Classroom and administrative building infrastructure
- Healthcare Facilities: Patient care areas and medical equipment connectivity
- Industrial Settings: Manufacturing plants and warehouse networks
- Public Spaces: Airports, convention centers, and transportation hubs
Competitive Advantages
Why Choose This Category 6 U/UTP Cable?
- Enhanced Safety: LSZH jacket minimizes toxic emissions during fire incidents
- Power Delivery: Full compliance with high-power PoE standards reduces separate power cabling needs
- Installation Efficiency: 305-meter reel length reduces splicing in large deployments
- Environmental Compliance: Meets international environmental regulations including RoHS and REACH
- Reliable Performance: Tight impedance tolerance ensures consistent signal quality
Frequently Asked Questions
What is the maximum distance for reliable data transmission with this cable?
This Category 6 U/UTP cable supports standard Ethernet distances up to 100 meters (328 feet) per channel when installed according to TIA/EIA standards.
Does this cable support Power over Ethernet applications?
Yes, this network cable fully complies with IEEE 802.3bt (Type 4) specifications, supporting high-power PoE applications up to 80V when installed according to relevant standards.
What are the advantages of the LSZH jacket material?
The Low Smoke Zero Halogen jacket minimizes toxic gas emission and reduces smoke density in case of fire, enhancing safety in confined spaces like plenums, elevators, and public transportation vehicles.
Is this cable suitable for outdoor installations?
This Category 6 U/UTP cable is designed for indoor use. For outdoor applications, we recommend specifically rated outdoor cables with additional protection against moisture and UV radiation.
Installation & Handling Guidelines
Important Considerations:
- Maintain minimum bend radius of 4 times the cable diameter during installation
- Install at temperatures between 0°C to +60°C (+32°F to +140°F)
- Operation temperature range: -20°C to +60°C (-4°F to +140°F)
- Ensure proper grounding according to local electrical codes
- Verify compatibility with connecting hardware for optimal performance
- Follow ISO/IEC 14763-2, CENELEC EN 50174 series, or TIA TSB-184-A guidelines for PoE installations
Product Attributes
| Product Type | Category 6 U/UTP Cable |
| Model Number | 1427070-2 |
| Conductor Material | Bare Copper |
| Jacket Color | White |
| Packaging | Reel in Box |
| Quality Certification | ISO 9001:2015 |
