New 100G QSFP28 BIDI SR CC-QK101L-SD Transceiver Fiber Optic Module for Data Centers
Product Details:
Place of Origin: | China |
Brand Name: | starsurge |
Certification: | CE, ISO, RoHS, GS |
Model Number: | CC-QK101L-SD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | carton |
Delivery Time: | According to quantity |
Payment Terms: | T/T |
Supply Ability: | 10000pcs/month |
Detail Information |
|||
Model NO.: | 100G QSFP28 BIDI SR Transceiver CC-QK101L-SD | Support Network: | Ethernet |
---|---|---|---|
Information Content: | Data | Condition: | New |
Speed: | 100g | Mode: | Bidi Sr |
Transport Package: | Packing | Specification: | 400*265*100mm |
Trademark: | Optmodule | Origin: | China |
Production Capacity: | 50000 |
Product Description

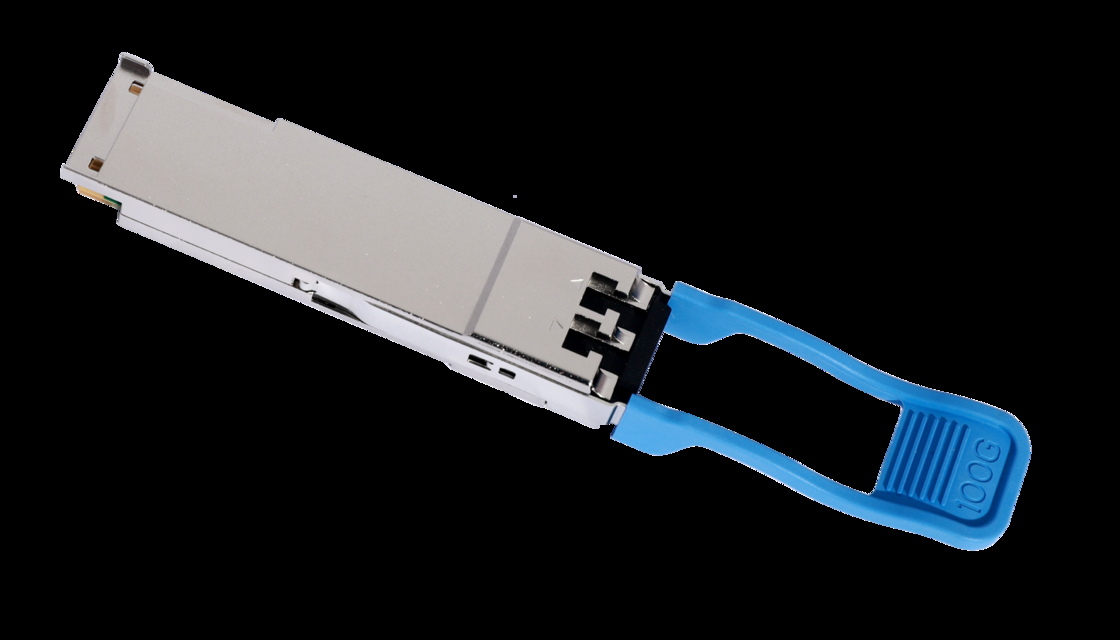

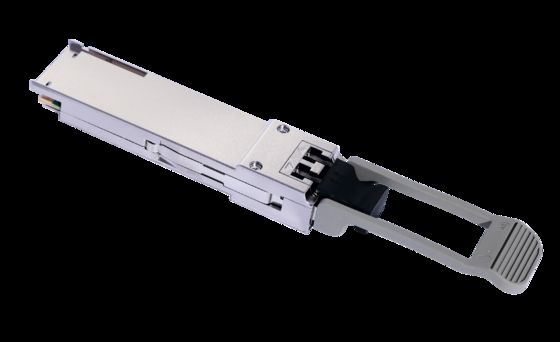

CC-QK101L-SD 100G QSFP28 BIDI SR Transceiver
CC-QK101L-SD Features CC-QK101L-SD
. QSFP28 MSA Specification Comp.iant, inc.uding new functions per SFF-8636
. 100G and 40G .ink Distances up to 70m over OM3, 100m over OM4
. Hot P.uggab.e
. Dua. Wave.ength VCSE. Bi-Directiona. Optica. Interface, PAM4 2x50Gbps 850nm/908nm
. Interface with Digita. monitoring and maskab.e Interrupts for Ex- panded functiona.ity
. Case Operating Temperature:Range: 0 to 70ºC
. RoHS II Comp.iance
. Operating Mode
. 100G and 40G .ink Distances up to 70m over OM3, 100m over OM4
. Hot P.uggab.e
. Dua. Wave.ength VCSE. Bi-Directiona. Optica. Interface, PAM4 2x50Gbps 850nm/908nm
. Interface with Digita. monitoring and maskab.e Interrupts for Ex- panded functiona.ity
. Case Operating Temperature:Range: 0 to 70ºC
. RoHS II Comp.iance
. Operating Mode
CC-QK101L-SD Applications CC-QK101L-SD
. Data Center
. High performance computing interconnect
. Data Center
. High performance computing interconnect
CC-QK101L-SD Description CC-QK101L-SD
The CC-QKK11S.-SD is a QSFP28 Optica. transceiver for 100Gbps and 40Gbps interconnects . It is comp.iant with the QSFP28 MSA specifications,operates from a 3.3V DC power supp.y. It is fabricated with a rugged die cast meta. housing and cage assemb.y.
Parameter
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Storage Ambient Temperature
|
Tstg
|
-40
|
+85
|
ºC
|
°C
|
Relative Humidity -Storage
|
RHS
|
0
|
95
|
%
|
%
|
Relative Humidity -Operating
|
RHO
|
0
|
85
|
%
|
|
Module Supply Voltage
|
VCC
|
-0.5
|
3.6
|
V
|
|
Parameter
|
Symbol
|
Min.
|
Max.
|
Unit
|
|
Case Operating Temperature
|
Tcase
|
0
|
+25
|
+70
|
ºC
|
Module Supply Voltage
|
VCC
|
3.135
|
3.3
|
3.465
|
V
|
Signaling SpeedPer
electricalchannel(4x25G NRZ) |
S
|
-
|
25.78
|
-
|
Gb/s
|
Power Consumption
|
P
|
-
|
-
|
4
|
W
|
Parameter
|
Symbol
|
Test
Point |
Min
|
Typ
|
Max
|
Units
|
Notes
|
AverageLaunchPower ,eachlane
|
POUT
|
TP2
|
-6.2
|
-
|
4
|
dBm
|
Average OpticalOutput
|
Optical modulationAmplitude , each lane
|
OMA
|
TP2
|
-4.2
|
-
|
3
|
dBm
|
|
ExtinctionRatio
|
ER
|
TP2
|
3
|
-
|
-
|
dB
|
|
Launch power in OMAouterminus TDECQ, each lane
|
OMA
TDECQ |
TP2
|
-5.9
|
-
|
-
|
dB
|
|
Optical OutputwithTxOFF
|
POFF
|
TP2
|
-
|
-
|
-30
|
dBm
|
|
Center Wavelength1
|
λ
|
TP2
|
844
|
850
|
863
|
nm
|
|
Center Wavelength 2
|
λ
|
TP2
|
900
|
908
|
918
|
nm
|
|
RMS Spectral Width1
|
Δλ
|
TP2
|
-
|
-
|
0.6
|
nm
|
|
RMS Spectral Width2
|
Δλ
|
TP2
|
-
|
-
|
0.65
|
nm
|
|
Optical return losstolerance
|
ORL
|
TP2
|
-
|
-
|
12
|
dB
|
|
Transmitter and dispersioneye closure forPAM4
(TDECQ), eachlane |
TDECQ
|
TP2
|
|
|
4.9
|
dB
|
|
Parameter |
Symbol |
Test
Point |
Min |
Typ |
Max |
Units |
Notes |
Average power at receiveinput, eachlane
|
PIN
|
TP3
|
-7.9
|
- |
4
|
dBm
|
Note1
|
Receive power, each lane
(OMAouter) |
PIN(OMA)
|
TP3
|
-5.9
|
- |
3
|
dBm
|
|
Unstressed receiver sensitivity(OMAouter),each lane
|
Sen |
TP3 |
- |
- |
max (-6.6,SECQ-8) |
dBm |
Note2 |
Center Wavelength1
|
λ
|
TP3
|
844
|
850
|
863
|
nm
|
|
Center Wavelength2
|
λ
|
TP3
|
900
|
908
|
918
|
nm
|
|
Receiver Reflectance
|
RFL
|
TP3
|
-
|
-
|
-12
|
dB
|
|
Rx_LOS of Signal- Assert
|
PA
|
TP3
|
-30
|
-
|
-
|
dBm
|
|
Rx_LOS of Signal-Deassert
|
PD
|
TP3
|
-
|
-
|
-5.9
|
dBm
|
|
Rx_LOS of Signal-Hysteresis
|
PHy
|
TP3
|
0.5
|
-
|
-
|
dB
|
|
I2CMemory Map(Based on SFF8636 2.10a) LowerPage
|
||||||
Address
|
Name
|
Bits Value
|
Byte Value
|
Read-Only
/Read/Write |
Support
|
|
Byte
|
Bit
|
|||||
0
|
7-0
|
Identifier
|
|
11h
|
Read- Only
|
Yes
|
1
|
7-0
|
Revision Compliance
|
|
08h
|
Read- Only
|
Yes
|
2 |
7-4
|
Reserved
|
|
status |
|
|
3
|
Reserved
|
|
|
|
||
2
|
Flat_mem
|
0b
|
Read- Only
|
Yes
|
||
1
|
IntL
|
|
Read- Only
|
Yes
|
||
0
|
Data_Not_Ready
|
|
Read- Only
|
Yes
|
||
3 |
7
|
L-Tx4LOS
|
status
|
status |
Read- Only
|
Yes
|
6
|
L-Tx3LOS
|
status
|
Read- Only
|
Yes
|
||
5
|
L-Tx2LOS
|
status
|
Read- Only
|
Yes
|
||
4
|
L-Tx1LOS
|
status
|
Read- Only
|
Yes
|
||
3
|
L-Rx4LOS
|
status
|
Read- Only
|
Yes
|
||
2
|
L-Rx3LOS
|
status
|
Read- Only
|
Yes
|
||
1
|
L-Rx2LOS
|
status
|
Read- Only
|
Yes
|
||
0
|
L-Rx1LOS
|
status
|
Read- Only
|
Yes
|
||
4 |
7
|
L-Tx4 AdaptEQ Fault
|
status
|
status |
Read- Only
|
Yes
|
6
|
L-Tx3 AdaptEQ Fault
|
status
|
Read- Only
|
Yes
|
