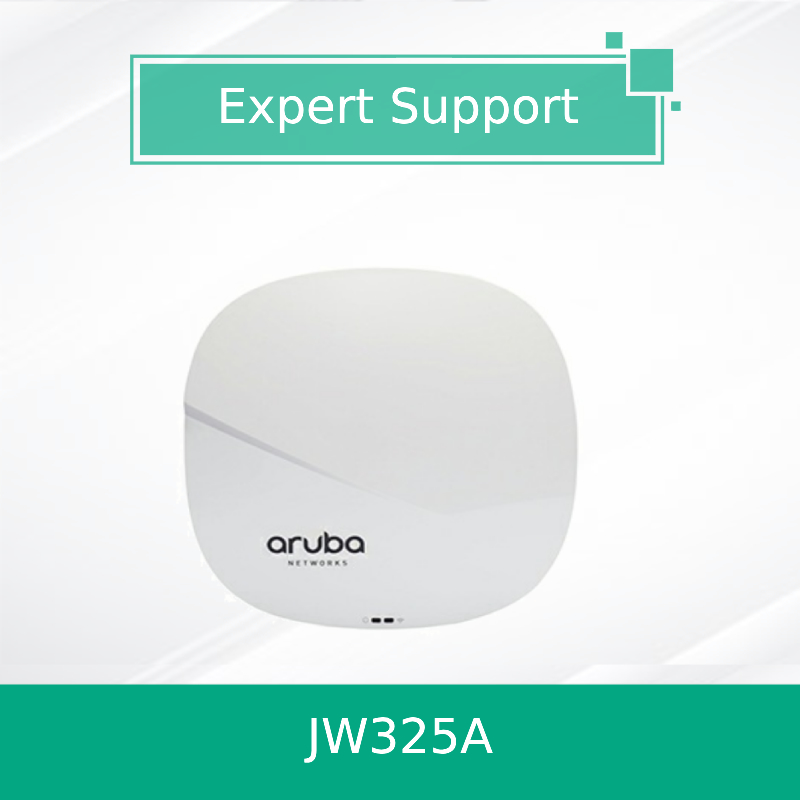

HPE Aruba AP-325 Access Point - High-Density 802.11ac Wave 2 4x4:4 MU-MIMO Wireless AP
Product Details:
| Brand Name: | Aruba |
| Model Number: | JW325A |
| Document: | HPE Aruba Networking AP-325...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model Number: | JW325A | Regulatory Model: | APIN0325 |
|---|---|---|---|
| Wireless Standards: | 802.11a/b/g/n/ac Wave 2 | MIMO Configuration: | 4x4:4 MU-MIMO |
| Ethernet Interfaces: | 1x Gigabit Ethernet | Power Consumption: | Max 20W |
| Highlight: | 500H aruba wall mount ap,aruba wall mount ap R3V60A,R3V60A |
||
Product Description
- Compliance with international regulatory standards
8. Service & Support
We offer 24/7 customer support, technical consultation, and worldwide shipping. Products are sourced directly from authorized channels, ensuring authenticity and warranty coverage.
9. FAQ
HPE Aruba AP-325 Access Point - High-Density 802.11ac Wave 2 4x4:4 MU-MIMO Wireless AP
1. Product Overview
The HPE Aruba AP-325 (Regulatory Model: APIN0325) is a high-performance, dual-radio 802.11ac Wave 2 wireless Access Point designed for high-density environments. It supports 4x4:4 MU-MIMO technology, providing reliable and high-speed connectivity for demanding applications. This AP is ideal for enterprises, educational institutions, and healthcare facilities requiring robust wireless coverage and capacity.
2. Key Features
- Dual-radio 802.11ac Wave 2 Access Point with 4x4:4 MU-MIMO support
- Integrated antennas for sleek design and easy deployment
- Support for ArubaOS or Aruba InstantOS for flexible deployment options
- Advanced RF management and security features
- Energy-efficient design with compliant power standards
3. Technology & Standards
The AP-325 complies with international standards including IEEE 802.11a/b/g/n/ac, and supports Wi-Fi 5 (Wave 2) technologies. It adheres to safety (BS EN 62368-1:2014), EMC (BS EN 55032:2012 Class B), and spectrum regulations (EN 300 328 V2.1.1, EN 301 893 V2.1.1). It also meets RoHS requirements (BS EN 50581:2012).
4. Working Principle
The AP-325 operates as a standalone or controller-managed Access Point. It uses MU-MIMO technology to communicate with multiple devices simultaneously, improving network efficiency. The integrated radios manage 2.4 GHz and 5 GHz bands, optimizing throughput and reducing interference in high-density deployments.
5. Applications
Ideal for: Enterprise offices, campuses, hospitals, hotels, and retail environments. Supports high-density user environments, HD video streaming, VoIP, and cloud applications.
6. Specifications
| Attribute | Value |
|---|---|
| Model Number | JW325A |
| Regulatory Model | APIN0325 |
| Wireless Standards | 802.11a/b/g/n/ac Wave 2 |
| MIMO Configuration | 4x4:4 MU-MIMO |
| Ethernet Interfaces | 1x Gigabit Ethernet |
| Power Consumption | Max 20W |
| Dimensions | 200 x 200 x 45 mm |
7. Advantages
- Superior performance in high-density environments compared to previous models
- Flexible deployment with Aruba Instant or Controller-based modes
- Integrated antennas reduce installation complexity
Q: What is the difference between AP-325 and IAP-325?
A: AP-325 is controller-managed, while IAP-325 operates in Instant mode.
Q: Does it support PoE?
A: Yes, it supports 802.3af/at PoE.
Q: Is the AP-325 suitable for outdoor use?
A: No, it is designed for indoor deployment.
10. Precautions
- Ensure proper ventilation and operating temperature (0°C to 40°C)
- Use compatible PoE injectors or switches
- Verify firmware compatibility with existing network infrastructure
