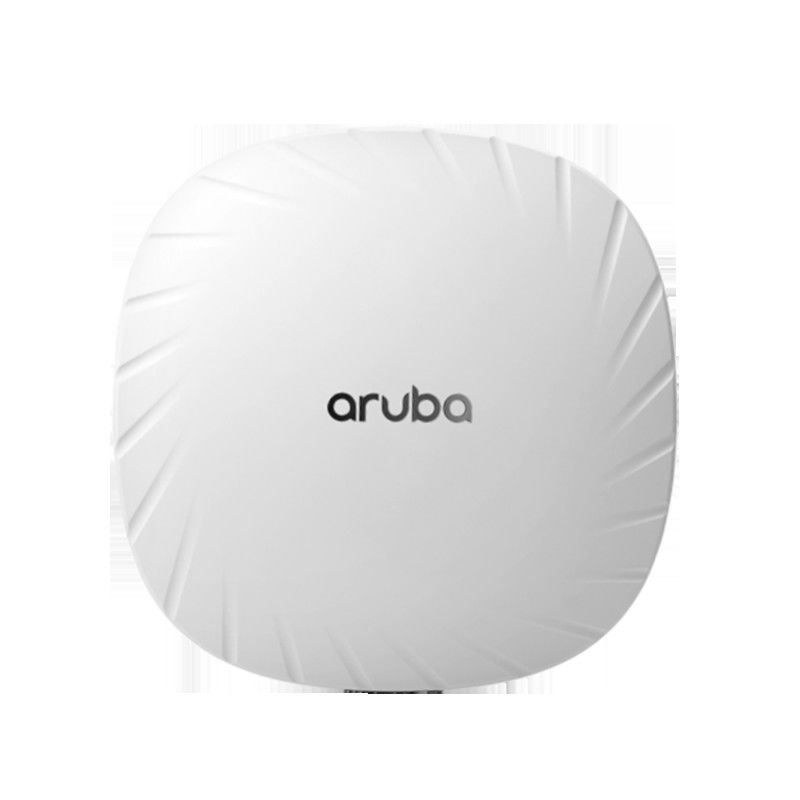

Aruba Wi-Fi 6 access points provide high-performance
connectivity for any organization experiencing growing
numbers of IoT and mobility requirements. With a combined
peak datarate of up to 2.69Gbps, they deliver the speed and
reliability needed for any enterprise environment.
Hardware variants
• AP-514: External antenna models

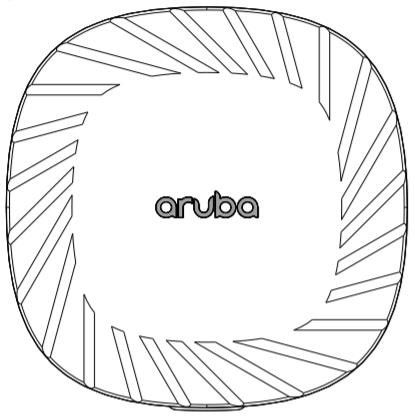

• AP-515: Internal antenna models
Wi-Fi radio specifications
• AP type: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and
2.4GHz 802.11ax 2x2 MIMO
• 5GHz radio:
- Four spatial stream Single User (SU) MIMO for up to
4.8Gbps wireless data rate to individual 4SS HE160
802.11ax client devices (max)
- Two spatial stream Single User (SU) MIMO for up to
1.2Gbps wireless data rate to individual 2SS HE80
802.11ax client devices (typical)
- Four spatial stream Multi User (MU) MIMO for up to
4.8Gbps wireless data rate to up to four 1SS or two 2SS
HE160 802.11ax DL-MU-MIMO capable client devices
simultaneously (max)
- Four spatial stream Multi User (MU) MIMO for up to
2.4Gbps wireless data rate to up to four 1SS or two 2SS
HE80 802.11ax DL-MU-MIMO capable client devices
simultaneously (typical)
• 2.4GHz radio:
- Two spatial stream Single User (SU) MIMO for up to
574Mbps wireless data rate to 2SS HE40 802.11ax client
devices (max)
- Two spatial stream Single User (SU) MIMO for up to
287Mbps wireless data rate to 2SS HE20 802.11ax client
devices (typical)
• Support for up to 512 associated client devices per radio,
and up to 16 BSSIDs per radio
• Supported frequency bands (country-specific
restrictions apply):
- 2.400 to 2.4835GHz ISM
- 5.150 to 5.250GHz U-NII-1
- 5.250 to 5.350GHz U-NII-2A
- 5.470 to 5.725GHz U-NII-2C
- 5.725 to 5.850GHz U-NII-3/ISM
- 5.850 to 5.895GHz U-NII-4
• Available channels: Dependent on configured
regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of
available RF spectrum
- Including Zero-Wait DFS (ZWDFS) to accelerate channel
changes
• Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division
multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple
access (OFDMA) with up to 16 resource units (for an
80MHz channel)
• Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
(proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM,
1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM,
1024-QAM802.11n high-throughput (HT) support:
HT20/40
• 802.11ac very high throughput (VHT) support:
VHT20/40/80/160
• 802.11ax high efficiency (HE) support: HE20/40/80/160
• Supported data rates (Mbps) :
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20
to HT40)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MVC31, HT20
to HT40)
- 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4,
VHT20 to VHT160)
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1
to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1
to 4, HE20 to HE160)
• 802.11n/ac/ax packet aggregation: A-MPDU, A-MSDU
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power
(limited by local regulatory requirements):
- 2.4 GHz band: +21 dBm (18dBm per chain)
- 5 GHz band: +24 dBm (18 dBm per chain)
- Note: conducted transmit power levels exclude antenna
gain. For total (EIRP) transmit power, add antenna gain.
• Advanced Cellular Coexistence (ACC) minimizes the impact
of interference from cellular networks
• Maximum ratio combining (MRC) for improved
receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved
downlink RF performance
• Space-time block coding (STBC) for increased range and
improved reception
• Low-density parity check (LDPC) for high-efficiency error
correction and increased throughput
• Transmit beam-forming (TxBF) for increased signal
reliability and range
• 802.11ax Target Wait Time (TWT) to support low-power
client devices
• 802.11mc Fine Timing Measurement (FTM) for precision
distance ranging
Wi-Fi antennas
• AP-514: Four (female) RP-SMA connectors for external
dual band antennas (A0 through A3, corresponding
with radio chains 0 through 3). Worst-case internal loss
between radio interface and external antenna connectors
(due to diplexing circuitry): 1.3dB in 2.4GHz and 1.7dB in
5GHz.
• AP-515: Four integrated dual-band downtilt
omni-directional antennas for 4x4 MIMO with peak
antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz.
Built-in antennas are optimized for horizontal ceiling
mounted orientation of the AP. The downtilt angle for
maximum gain is roughly 30 degrees.
- Combining the patterns of each of the antennas of the
MIMO radios, the peak gain of the effective per-antenna
pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz.

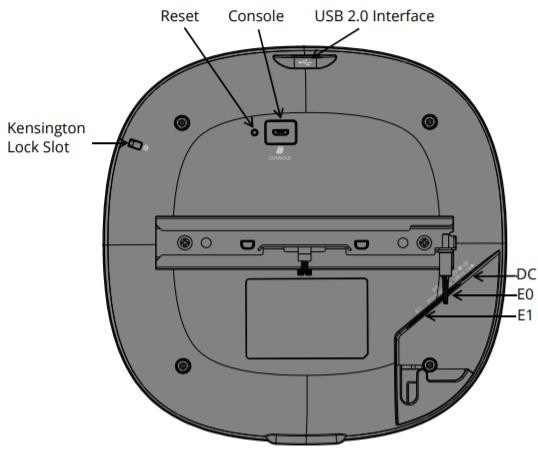

Additional interfaces
• E0: HPE SmartRate port (RJ-45, maximum negotiated
speed 2.5Gbps)
- Auto-sensing link speed (100/1000/2500BASE-T)
and MDI/MDX
- 2.5Gbps speed complies with NBase-T and
802.3bz specifications
- PoE-PD: 48Vdc (nominal) 802.3af/at/bt (class 3 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
• E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
• Link aggregation (LACP) support between both network
ports for redundancy and increased capacity
• DC power interface: 12Vdc (nominal, +/- 5%), accepts
2.1mm/5.5mm center-positive circular plug with
9.5mm length
• USB 2.0 host interface (Type A connector)
- Capable of sourcing up to 1A / 5W to an attached device
• Bluetooth 5 and Zigbee (802.15.4) radio (2.4GHz)
- Bluetooth 5: up to 8dBm transmit power (class 1) and
-95dBm receive sensitivity
- Zigbee: up to 8dBm transmit power and -97dBm receive
sensitivity
- Integrated vertically polarized omnidirectional antenna
with roughly 30 degrees downtilt and peak gain of 3.5dBi
(AP-515) or 4.9dBi (AP-514)
• Visual indictors (two multi-color LEDs): for System and
Radio status
• Reset button: factory reset, LED mode control (normal/off)
• Serial console interface (proprietary, micro-B USB
physical jack)
• Kensington security slot
Power sources and power consumption
• The AP supports direct DC power and Power over
Ethernet (PoE; on port E0)
• When both power sources are available, DC power takes
priority over PoE
• Power sources are sold separately; see the ordering
Information section below for details
• When powered by DC or 802.3at (class 4) / 802.3bt (class
5) PoE, the AP will operate without restrictions.
• When powered by 802.3af (class 3) PoE and with the IPM
feature enabled, the AP will start up in unrestricted mode,
but it may apply restrictions depending on the PoE budget
and actual power. What IPM restrictions to apply, and in
what order, is programmable.
• Operating the AP with an 802.3af (class 3 or lower) PoE
source and IPM disabled is not supported (except for AP
staging; no radios will be enabled).
• Maximum (worst-case) power consumption:
- DC powered: 16.0W
- PoE powered (802.3af, IPM enabled): 13.5W
- PoE powered (802.3at/bt): 20.8W
- All numbers above are without an external USB device
connected. When sourcing the full 5W power budget
to such a device, the incremental (worst-case) power
consumption for the AP is up to 5.7W (PoE powered) or
5.5W (DC powered).
• Maximum (worst-case) power consumption in idle mode:
12.6W (PoE) or 9.7W (DC)
• Maximum (worst-case) power consumption in deep-sleep
mode: 5.9W (PoE) or 1.5W (DC)
Mounting details
A mounting bracket has been pre-installed on the back of the
AP. This bracket is used to secure the AP to any of the (sold
separately) mount kits; see the ordering Information section
below for details.
Mechanical specifications
• Dimensions/weight (AP-515; unit, excluding mount bracket):
- 200mm (W) x 200mm (D) x 46mm (H)/
7.9” (W) x 7.9” (D) x 1.8” (H)
- 810g/28.5oz
• Dimensions/weight (AP-515; shipping):
- 230mm (W) x 220mm (D) x 72mm (H)/
9.1” (W) x 8.7” (D) x 2.8” (H)
- 1010g/35.5oz
Environmental specifications
• Operating conditions
- Temperature: 0C to +50C/+32F to +122F
- Humidity: 5% to 93% non-condensing
- AP is plenum rated for use in air-handling spaces
- ETS 300 019 class 3.2 environments
• Storage and transportation conditions
- Temperature: -40C to +70C/-40F to +158F
- Humidity: 5% to 93% non-condensing
- ETS 300 019 classes 1.2 and 2.3 environments
Reliability
Mean Time Between Failure (MTBF): 560,000hrs (64yrs) at +25C
operating temperature.
Regulatory compliance
• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2
• Railway Certs (AP-515 Only):
- EN 50155:2017 – Railway Applications
- EN 50121-1:2017 – Railway EMC
- EN 50121-3-2 – Railway EMC
- EN 50121-4:2016 – Railway Immunity
- IEC 61373 ed2:2008 – Railway Shock and Vibration
For more country-specific regulatory information and
approvals, please see your Aruba representative.
Regulatory model numbers
• AP-514: APIN0514
• AP-515: APIN0515
Certifications
• UL2043 plenum rating
• Wi-Fi Alliance:
- Wi-Fi CERTIFIED a, b, g, n, ac, ax
- WPA, WPA2 and WPA3 – Enterprise with CNSA option,
Personal(SAE), Enhanced Open ( OWE)
- WMM, WMM-PS, W-Fi Agile Multiband
- Passpoint (release 2)
- Wi-Fi Location
• Bluetooth SIG
WARRANTY
Aruba’s hardware limited lifetime warranty.
MINIMUM OPERATING SYSTEM SOFTWARE
VERSIONS
• ArubaOS and Aruba InstantOS 8.4.0.0 (with some
restrictions). For unrestricted operation, use 8.6.0.0 or later.
• ArubaOS 10.0.0.0
RF PERFORMANCE TABLE | ||
Maximum transmit power (dBm) per transmit chain |
Receiver sensitivity (dBm) per receive chain |
|
802.11b 2.4 GHz | ||
1Mbps | 18.0 | -95.0 |
11Mbps | 18.0 | -88.0 |
802.11g 2.4 GHz | ||
6Mbps | 18.0 | -93.0 |
54Mbps | 17.0 | -75.0 |
802.11n HT20 2.4 GHz | ||
MCS0/8 | 18.0 | -93.0 |
MCS/7/15 | 16.0 | -75.0 |
802.11ax HE20 2.4 GHz | ||
MCS0/8 | 18.0 | -92.0 |
MCS7/15 | 14.0 | -62.0 |
802.11a 5 GHz | ||
6Mbps | 18.0 | -93.0 |
54Mbps | 17.0 | -75.0 |
802.11n HT20 5 GHz | ||
MCS0/8/16/24 | 18.0 | -93.0 |
MCS7/15/23/31 | 16.0 | -73.0 |
802.11n HT40 5 GHz | ||
MCS0/8/16/24 | 18.0 | -90.0 |
MCS7/15/23/31 | 16.0 | -70.0 |
802.11AC VHT20 5 GHz | ||
MCS0 | 18.0 | -93.0 |
MCS8 | 16.0 | -68.0 |
802.11AC VHT40 5 GHz | ||
MCS0 | 18.0 | -90.0 |
MCS9 | 16.0 | -65.0 |
802.11AC VHT80 5 GHz | ||
MCS0 | 18.0 | -87.0 |
MCS9 | 16.0 | -62.0 |
802.11AC VHT160 5 GHz | ||
MCS0 | 18.0 | -84.0 |
MCS9 | 16.0 | -59.0 |
802.11ax HE20 5 GHz | ||
MCS0 | 18.0 | 90.0 |
MCS11 | 14.0 | 60.0 |
802.11ax HE40 5 GHz | ||
MCS0 | 18.0 | 87.0 |
MCS11 | 14.0 | 57.0 |
802.11ax HE80 5 GHz | ||
MCS0 | 18.0 | 84.0 |
MCS11 | 14.0 | 54.0 |
802.11ax HE160 5 GHz | ||
MCS0 | 18.0 | 81.0 |
MCS11 | 13.0 | 51.0 |
FAQ
Q1.What can you buy from us?
A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.
Q2.How about the delivery date?
A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
Send your inquiry directly to us
