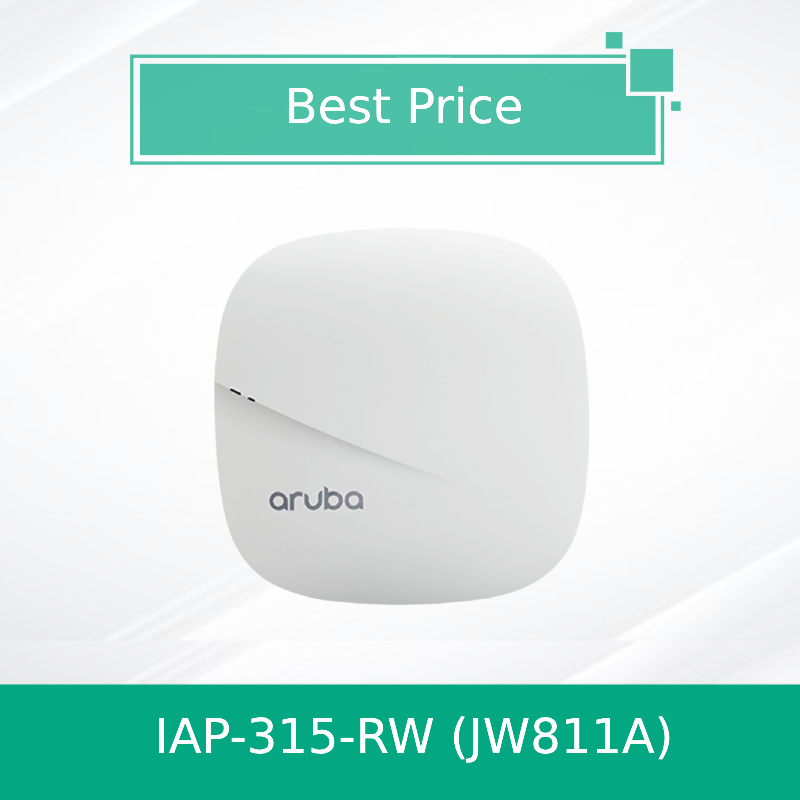

310 Series Antenna Instant Aruba IAP 315 (RW) 802.11n AC 2x2:2 4x4:4

Product Details:

Brand Name: Aruba
Model Number: IAP-315(JW797A)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton
Delivery Time: 7-10days
Payment Terms: Western Union, T/T, , MoneyGram, XTransfer
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information
Condition: New And Original Availability: Stock
Use: Wireless WiFi 5 Supported Frequency: 2.4GHz 2x2:2/5GHz 4x4:4 MU-MIMO
Type: Instant Access Point Transmission Standard: 802.11n/ac Wave 2
Size: 223mm (W) X 218mm (D) X 55mm (H) Weight: 850g
Highlight:

Instant aruba iap 315

,

Antenna aruba iap 315

,

Antenna aruba instant ap

Product Description

  • ARUBA 310 SERIES IAP-315(JW797A) WIRELESS ACCESS POINTS
  • AP type: Instant Indoor access points , dual radio, 802.11n/ac 2x2:2/4x4:4 MU-MIMO Dual Radio
  • IAP-315(JW797A)  SERIES SPECIFICATIONS
    • IAP-315(JW797A) (controller-managed) and IAP-315(JW797A) (Instant):
    --5GHz 802.11ac 4x4 MIMO (1,733 Mbps max rate)
    and 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate)
    radios, with a total of four integrated omni-directional
    downtilt dual-band antennas
    WI-FI RADIO SPECIFICATIONS
    • AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO
    and 2.4 GHz 802.11n 2x2 MIMO
    • Software-configurable dual radio supports 5 GHz (Radio 0)
    and 2.4 GHz (Radio 1)
    • 5 GHz: Four spatial stream Single User (SU) MIMO for up
    to 1,733 Mbps wireless data rate to individual 4x4 VHT80
    or 2x2 VHT160 client devices
    • 2.4 GHz: Two spatial stream Single User (SU) MIMO for
    up to 300 Mbps wireless data rate to individual 2x2 HT40
    client devices
    • 5 GHz: Four spatial stream Multi User (MU) MIMO for up
    to 1,733 Mbps wireless data rate to up to three MU-MIMO
    capable client devices simultaneously
    • Support for up to 256 associated client devices per radio,
    and up to 16 BSSIDs per radio
    • Supported frequency bands (country-specific
    restrictions apply):
    --2.400 to 2.4835 GHz
    --5.150 to 5.250 GHz
    --5.250 to 5.350 GHz
    --5.470 to 5.725 GHz
    --5.725 to 5.850 GHz
    • Available channels: Dependent on configured
    regulatory domain.
    • Dynamic frequency selection (DFS) optimizes the use of
    available RF spectrum.
    • Supported radio technologies:
    --802.11b: Direct-sequence spread-spectrum (DSSS)
    --802.11a/g/n/ac: Orthogonal frequency-division
    multiplexing (OFDM)
    • Supported modulation types:
    --802.11b: BPSK, QPSK, CCK
    --802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
    • Transmit power: Configurable in increments of 0.5 dBm
    • Maximum (conducted) transmit power (limited by local
    regulatory requirements):
    --2.4 GHz band: +18 dBm per chain , +21dBm aggregate (2x2)
    --5 GHz band: +18 dBm per chain , +24dBm aggregate (4x4)
    --Note: conducted transmit power levels exclude antenna
    gain. For total (EIRP) transmit power, add antenna gain
    • Advanced Cellular Coexistence (ACC) minimizes
    interference from cellular networks.
    • Maximum ratio combining (MRC) for improved
    receiver performance.
    • Cyclic delay/shift diversity (CDD/CSD) for improved
    downlink RF performance.
    • Short guard interval for 20-MHz, 40-MHz, 80-MHz and
    160-MHz channels.
    • Space-time block coding (STBC) for increased range and
    improved reception.
    • Low-density parity check (LDPC) for high-efficiency error
    correction and increased throughput.
    • Transmit beam-forming (TxBF) for increased signal
    reliability and range.
    • Supported data rates (Mbps):
    --802.11b: 1, 2, 5.5, 11
    --802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    --802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
    --802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
    --802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for
    VHT20/40/80, NSS = 1 to 2 for VHT160)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support:
    VHT 20/40/80/160
    • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
    WI-FI ANTENNAS
    • AP-314/IAP-314: Four RP-SMA connectors for external
    dual band antennas. Worst-case internal loss between
    radio interface and external antenna connectors (due to
    diplexing circuitry): 0.6dB in 2.4 GHz and 1.2dB in 5 GHz.
    • AP-315/IAP-315: Four integrated dual-band downtilt
    omni-directional antennas for 4x4 MIMO with peak
    antenna gain of 3.6dBi in 2.4 GHz and 6.0dBi in 5 GHz.
    Built-in antennas are optimized for horizontal ceiling
    mounted orientation of the AP. The downtilt angle for
    maximum gain is roughly 30 degrees.
    --Combining the patterns of each of the antennas of the
    MIMO radios, the peak gain of the effective per-antenna
    pattern is 3.1dBi in 2.4 GHz and 3.8dBi in 5 GHz.
    OTHER INTERFACES
    • One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
    --Auto-sensing link speed and MDI/MDX
    --802.3az Energy Efficient Ethernet (EEE)
    • USB 2.0 host interface (Type A connector)
    • Bluetooth Low Energy (BLE) radio
    --Up to 4dBm transmit power (class 2) and -91dBm
    receive sensitivity
    --Integrated antenna with roughly 30 degrees downtilt
    and peak gain of 3.4dBi (AP-314/IAP-314) or 1.5dBi
    (AP-315/IAP-315)
    • Visual indicators (multi-color LEDs): For system and
    radio status
    • Reset button: Factory reset (during device power up)
    • Serial console interface (proprietary; optional adapter
    cable available)
    • Kensington security slot
    POWER SOURCES AND CONSUMPTION
    • The AP supports direct DC power and Power over
    Ethernet (POE)
    • When both power sources are available, DC power takes
    priority over POE
    • Power sources are sold separately
    • Direct DC source: 12Vdc nominal, +/- 5%
    --Interface accepts 2.1/5.5-mm center-positive circular
    plug with 9.5-mm length
    • Power over Ethernet (PoE): 48 Vdc (nominal)
    802.3af/802.3at compliant source
    --Unrestricted functionality with 802.3at PoE
    --When using IPM, the AP may enter power-save mode
    with reduced functionality when powered by an 802.3af
    PoE source (see details on Intelligent Power Monitoring
    elsewhere in this datasheet)
    --Without IPM, the USB port is disabled and transmit
    power of the 2.4 GHz radio chains are reduced by 3dB
    to 15dBm max when the AP is powered by an 802.3af
    PoE source
    • Maximum (worst-case) power consumption: 14.4W
    (802.3at PoE), 13.6W (802.3af PoE) or 12.7W (DC)
    --Excludes power consumed by external USB device (and
    internal overhead); this could add up to 6.4W (PoE) or
    5.9W (DC) for a 5W/1A USB device
    • Maximum (worst-case) power consumption in idle mode:
    6.4W (PoE) or 5.9W (DC)
    MOUNTING

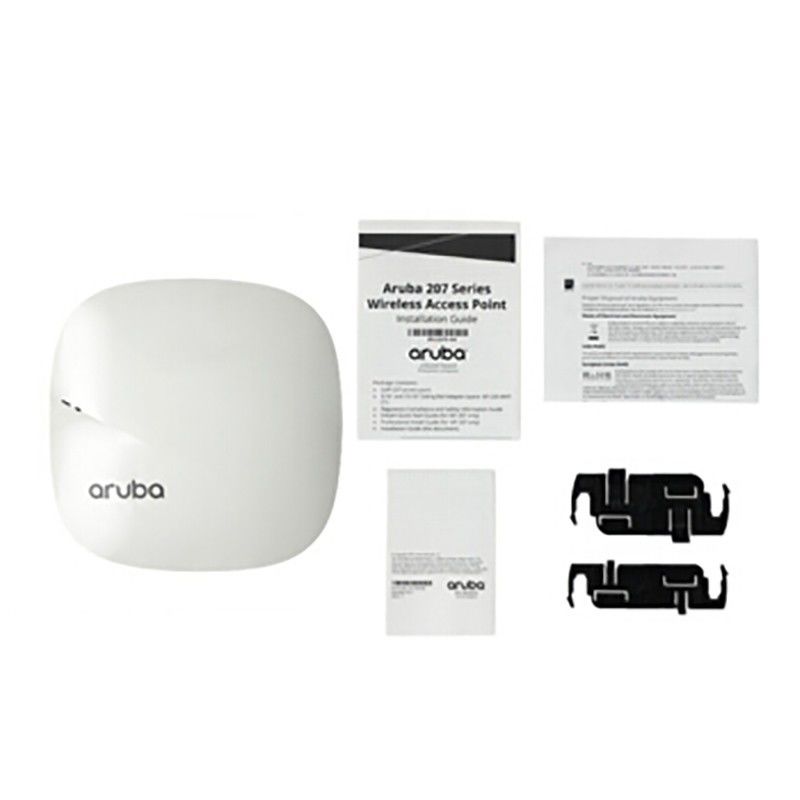

    • The AP ships with two (black) mounting clips to attach to a
    9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.
    • Several optional mount kits are available to attach the
    AP to a variety of surfaces; see the Ordering Information
    section for details.
    MECHANICAL
    • Dimensions/weight (unit, excluding mount accessories):
    --182mm (W) x 180mm (D) x 48mm (H)
    --650g/23oz
    • Dimensions/weight (shipping):
    --223mm (W) x 218mm (D) x 55mm (H)
    --850g/30oz
    ENVIRONMENTAL
    • Operating:
    --Temperature: 0° C to +50° C (+32° F to +122° F)
    --Humidity: 5% to 93% non-condensing
    • Storage and transportation:
    --Temperature: -40° C to +70° C (-40° F to +158° F)
    REGULATORY
    • FCC/ISED
    • CE Marked
    • RED Directive 2014/53/EU
    • EMC Directive 2014/30/EU
    • Low Voltage Directive 2014/35/EU
    • UL/IEC/EN 60950
    • EN 60601-1-1 and EN 60601-1-2
    • EN 50155 (AP-315/IAP-315)
    For more country-specific regulatory information and
    approvals, please see your Aruba representative.
    RELIABILITY
    MTBF: 916,373 hrs (105yrs) at +25C operating temperature
    REGULATORY MODEL NUMBERS
    • AP-314 and IAP-314: APIN0314
    • AP-315 and IAP-315: APIN0315
    CERTIFICATIONS
    • CB Scheme Safety, cTUVus
    • UL2043 plenum rating
    • Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
    • WPA, WPA2 and WPA3 – Enterprise with CNSA option,
    Personal (SAE), Enhanced Open (OWE)
    • Passpoint® (Release 2) with ArubaOS and Instant 8.3+
    WARRANTY
    • Aruba limited lifetime warranty
    MINIMUM OPERATING SYSTEM
    SOFTWARE VERSIONS
    • ArubaOS 6.5.0.0, 8.0.1.0
    • Aruba InstantOS 4.3.0.0
  • RF PERFORMANCE TABLE
      Maximum transmit power (dBm)
    per transmit chain    		 Receiver sensitivity (dBm)
    per receive chain
    802.11b 2.4 GHz
    1Mbps 18.0 -95.0
    11Mbps 18.0 -88.0
    802.11g 2.4 GHz
    6Mbps 18.0 -91.0
    54Mbps 16.0 -74.0
    802.11n HT20 2.4 GHz
    MCS0/8 18.0 -90.0
    MCS/7/15 14.0 -71.0
    802.11n HT40 2.4 GHz
    MCS0/8 18.0 -87.0
    MCS7/15 14.0 -68.0
    802.11a 5 GHz
    6Mbps 18.0 -90.0
    54Mbps 16.0 -73.0
    802.11n HT20 5 GHz
    MCS0/8/16/24 18.0 -91.0
    MCS7/15/23/31 14.0 -71.0
    802.11n HT40 5 GHz
    MCS0/8/16/24 18.0 -87.0
    MCS7/15/23/31 14.0 -68.0
    802.11AC VHT20 5 GHz
    MCS0 18.0 -90.0
    MCS8 12.0 -65.0
    802.11AC VHT40 5 GHz
    MCS0 18.0 -87.0
    MCS9 12.0 -62.0
    802.11AC VHT80 5 GHz
    MCS0 18.0 -83.0
    MCS9 12.0 -59.0
    802.11AC VHT160 5 GHz
    MCS0 18.0 -82.0
    MCS9 12.0 -57.0
