Aruba 310 Series Access Point - AP-315 (JW797A)

Product Overview

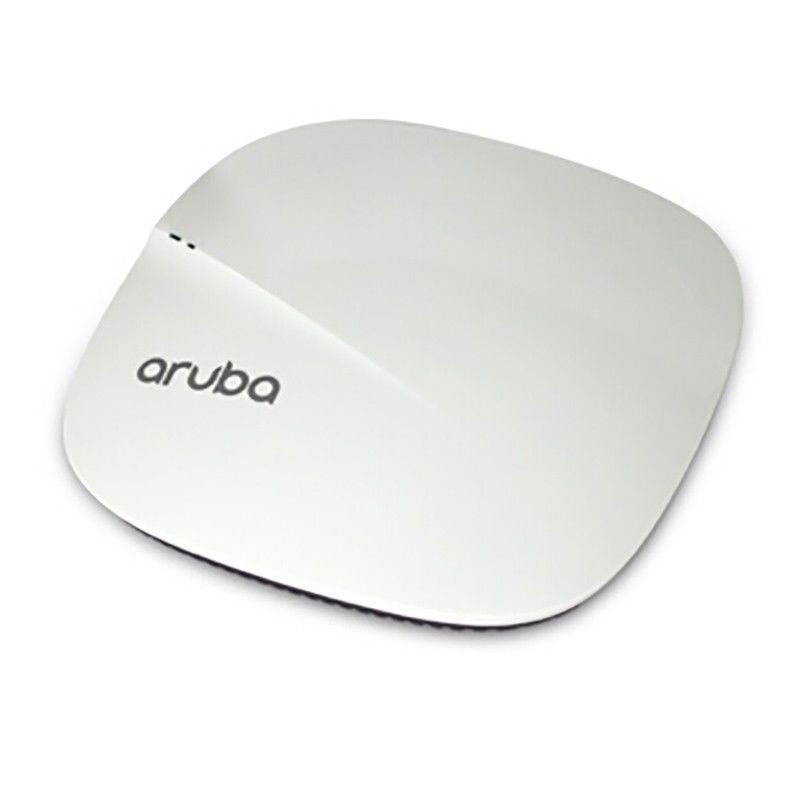

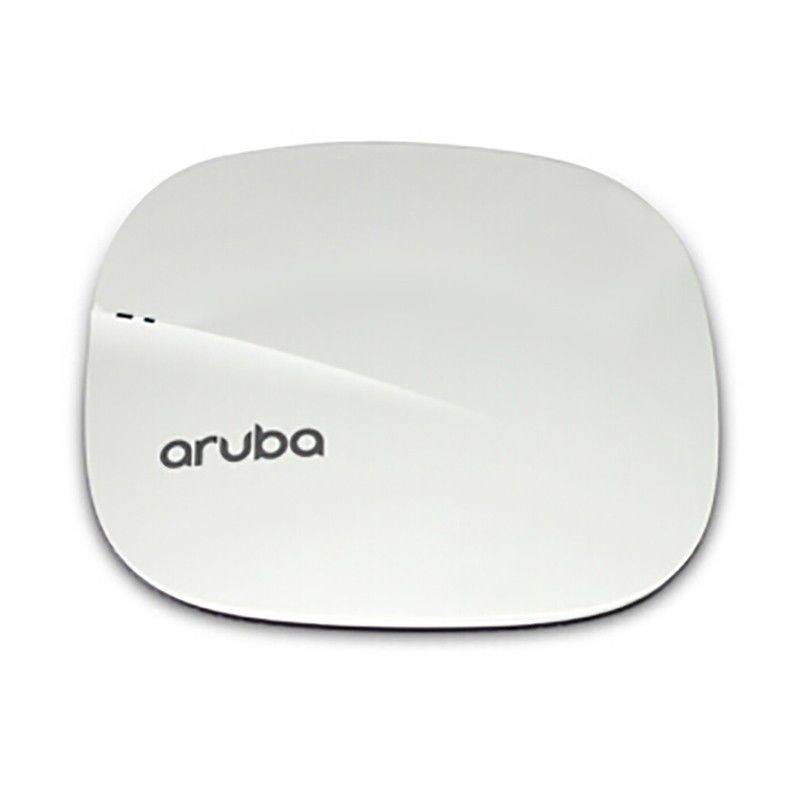

The Aruba 310 Series AP-315 is a high-performance, dual-radio 802.11ac Wave 2 wireless access point designed for dense device environments. This enterprise-grade AP delivers a combined peak data rate of 2.0 Gbps with 4x4 MU-MIMO technology in the 5GHz band and 2x2 MIMO in the 2.4GHz band. Ideal for cost-conscious organizations requiring reliable connectivity, this Aruba access point features integrated Bluetooth for IoT services, advanced RF management, and flexible deployment modes. The AP-315 model comes with four integrated dual-band antennas optimized for ceiling mounting.

Key Features

• 4x4 MU-MIMO technology with peak rates of 1.733 Gbps (5GHz) and 300 Mbps (2.4GHz)
• Integrated Bluetooth Low Energy (BLE) for location services and IoT connectivity
• Dual operational modes (Controller-managed and Aruba Instant)
• Advanced Cellular Coexistence (ACC) to minimize interference
• Intelligent Power Monitoring for efficient PoE management
• Aruba ClientMatch technology for optimized client steering
• Built-in security with wireless intrusion protection and TPM

Technology

The Aruba 310 Series access point incorporates cutting-edge wireless technologies including 802.11ac Wave 2 with MU-MIMO, which allows simultaneous data transmission to multiple clients. It supports VHT160 channel bandwidth for increased throughput and features Adaptive Radio Management (ARM) for automatic channel and power optimization. The AP utilizes AppRF technology for application visibility and control, plus integrated spectrum analysis capabilities for enhanced network monitoring.

Working Principle

The AP-315 operates by creating multiple wireless networks (SSIDs) that authenticate and connect client devices. It uses sophisticated radio frequency management to automatically select optimal channels and power levels. The access point communicates with wireless controllers (in managed mode) or self-organizes with other Instant APs (in Instant mode) to form a cohesive wireless network. Data is encrypted and forwarded to the network core while applying quality of service policies and security measures.

Applications

The Aruba 310 Series is ideally suited for medium to high-density environments including enterprise offices, educational institutions, retail spaces, hotels, and healthcare facilities. This access point excels in deployments where cost-effectiveness is paramount without compromising on performance. The integrated IoT capabilities make it particularly valuable for organizations implementing location-based services, asset tracking, or mobile engagement solutions.

Specifications

Advantages

The Aruba 310 Series access point offers several distinct advantages over competing solutions. Its 4x4 MU-MIMO capability provides superior performance in high-density environments compared to standard 2x2 or 3x3 APs. The integrated IoT platform eliminates the need for separate Bluetooth beacons or infrastructure. Aruba's ClientMatch technology ensures optimal client connectivity by automatically steering devices to the best available AP. With flexible deployment options (controller-managed or Instant mode), organizations can choose the management approach that best fits their operational model. The AP-315 also features intelligent power monitoring that optimizes functionality based on available PoE budget.

Service & Support

All Aruba 310 Series access points come with a limited lifetime warranty. Our company provides comprehensive technical support 24/7, with next-business-day advance hardware replacement available. We offer configuration assistance and integration services to ensure smooth deployment. With over 10 years of industry experience, our technical team can provide expert guidance on network design and optimization specific to your environment.

Frequently Asked Questions

Q: What is the difference between the AP-315 and AP-314 models?
A: The AP-315 features integrated antennas while the AP-314 has RP-SMA connectors for external antennas. The AP-315 is typically preferred for standard indoor deployments, while the AP-314 offers flexibility for specialized antenna requirements.

Q: Can the AP-315 operate without a dedicated wireless controller?
A: Yes, the AP-315 can operate in Aruba Instant mode, where one AP acts as a virtual controller, managing other Instant APs in the network without requiring a physical controller.

Q: What power source is required for full functionality?
A: While the AP-315 works with standard 802.3af PoE, for full functionality (including USB port and maximum radio power), 802.3at PoE or DC power is recommended.

Q: Does this access point support mesh networking?
A: Yes, the Aruba 310 Series supports secure enterprise mesh networking for extending wireless coverage to areas without Ethernet connectivity.

Q: What IoT protocols are supported?
A: The built-in BLE radio supports proximity and location services. For expanded IoT capabilities, an optional USB dongle (sold separately) adds Zigbee support.

Precautions

• Ensure proper ventilation around the access point to prevent overheating
• Verify compatibility with existing network infrastructure before deployment
• Comply with local regulatory requirements for RF transmission power
• When ceiling mounting, ensure proper structural support for the AP and cables
• For PoE operation, use quality Ethernet cables of appropriate length to avoid power delivery issues
• Maintain minimum clearance of 20cm around the AP for optimal antenna performance
• Update to the latest firmware version before deployment to ensure security and performance
