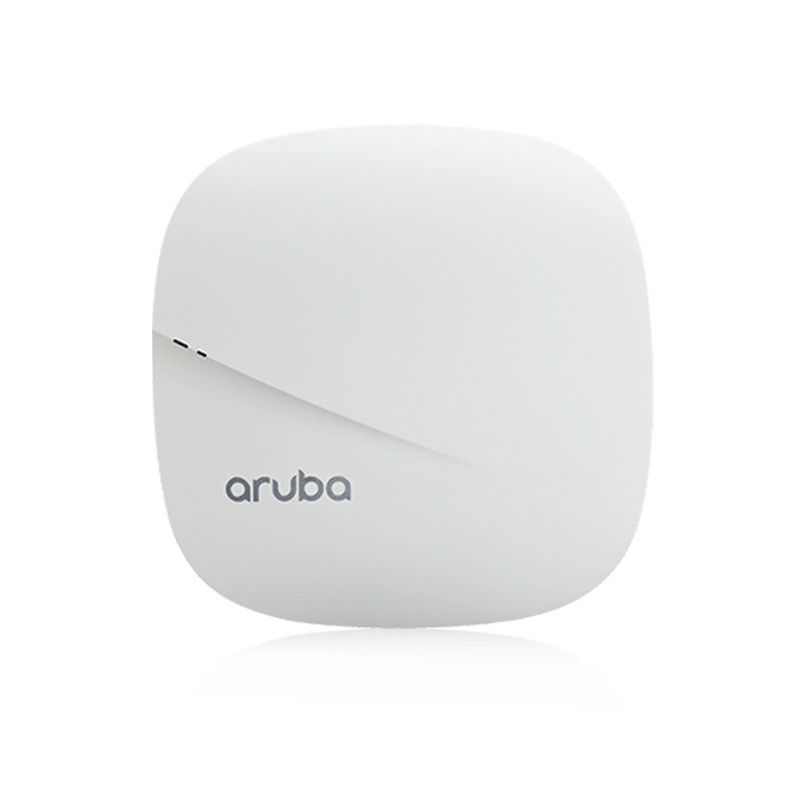

AP305 Dual Radio Integrated Antenna Aruba Wifi Access Point 2.4GHz 300 Series new and original

Product Details:

Brand Name: Aruba
Model Number: AP-305(JX936A)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton
Delivery Time: 7-10days
Payment Terms: Western Union, T/T, , MoneyGram, XTransfer
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information
Condition: New And Original Availability: Stock
Use: Wireless WiFi 5 Supported Frequency: 2.4GHz 2x2:2/5GHz 3x3:3 MU-MIMO
Type: Indoor Access Point Transmission Standard: 802.11n/ac
Size: 205mm X 205mm X 52mm Weight: 620g
Highlight:

2.4GHz aruba wifi access point

,

AP305 aruba wifi access point

,

2.4GHz aruba ap305

Product Description

  • ARUBA 300 SERIES AP-305(JX936A) WIRELESS ACCESS POINTS
  • AP-305(JX936A) AP type: Indoor, dual radio, 802.11n/ac 2x2:2/3x3:3 MU-MIMO Dual Radio
  • AP-305(JX936A)  compact Aruba 303 Series AP delivers a maximumAP-300 SERIES SPECIFICATIONS
    • AP-305(JX936A)  (controller-managed) and IAP-305 (Instant):
    --5GHz 802.11ac 3x3 MIMO (1,300 Mbps max rate) and
    2.4GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios,
    with a total of three integrated omni-directional downtilt
    dual- band antennas.
    WI-FI RADIO SPECIFICATIONS
    • AP-305(JX936A)  type: Indoor, dual radio, 5GHz 802.11ac 3x3 MIMO and
    2.4GHz 802.11n 2x2 MIMO
    • Software-configurable dual radio supports 5GHz (Radio 0)
    and 2.4GHz (Radio 1)
    • 5GHz: Three spatial stream Single User (SU) MIMO for up
    to 1,300 Mbps wireless data rate to individual 3x3 VHT80
    client devices
    • 5GHz: Two spatial stream Multi User (MU) MIMO for up
    to 867 Mbps wireless data rate to up to two (1x1 VHT80)
    MU-MIMO capable client devices simultaneously
    • 2.4GHz: Two spatial stream Single User (SU) MIMO for up
    to 300 Mbps wireless data rate to individual 2x2 HT40
    client devices
    • Support for up to 256 associated client devices per radio,
    and up to 16 BSSIDs per radio
    • Supported frequency bands (country-specific restrictions
    apply):
    --2.400 to 2.4835GHz
    --5.150 to 5.250GHz
    --5.250 to 5.350GHz
    --5.470 to 5.725GHz
    --5.725 to 5.850GHz
    • Available channels: Dependent on configured
    regulatory domain
    • Dynamic frequency selection (DFS) optimizes the use of
    available RF spectrum
    • Supported radio technologies:
    --802.11b: Direct-sequence spread-spectrum (DSSS)
    --802.11a/g/n/ac: Orthogonal frequency-division
    multiplexing (OFDM)
    • Supported modulation types:
    --802.11b: BPSK, QPSK, CCK
    --802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
    • Transmit power: Configurable in increments of 0.5 dBm
    • Maximum (aggregate, conducted total) transmit power
    (limited by local regulatory requirements):
    --2.4GHz band: +18 dBm per chain, +21 dBm
    aggregate (2x2)
    --5GHz band: +18 dBm per chain, +23 dBm
    aggregate (3x3)
    --Note: conducted transmit power levels exclude antenna
    gain. For total (EIRP) transmit power, add antenna gain
    • Advanced Cellular Coexistence (ACC) minimizes
    interference from cellular networks
    • Maximum ratio combining (MRC) for improved receiver
    performance
    • Cyclic delay/shift diversity (CDD/CSD) for improved
    downlink RF performance
    • Short guard interval for 20MHz, 40MHz and 80MHz
    channels
    • Space-time block coding (STBC) for increased range and
    improved reception
    • Low-density parity check (LDPC) for high-efficiency error
    correction and increased throughput
    • Transmit beam-forming (TxBF) for increased signal
    reliability and range
    • Supported data rates (Mbps):
    --802.11b: 1, 2, 5.5, 11
    --802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    --802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
    --802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23)
    --802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS = 1 to 3 for
    VHT20/40/80
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support:
    VHT 20/40/80
    • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
    WI-FI ANTENNAS
    • AP-304/IAP-304: Three RP-SMA connectors for external
    dual band antennas. Worst-case internal loss between
    radio interface and external antenna connectors (due to
    diplexing circuitry): 0.8dB in 2.4GHz and 1.6dB in 5GHz.
    • AP-305/IAP-305: Three integrated dual-band downtilt
    omni-directional antennas for 3x3 MIMO with peak
    antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz.
    Built-in antennas are optimized for horizontal ceiling
    mounted orientation of the AP. The downtilt angle for
    maximum gain is roughly 30 degrees.
    --Combining the patterns of each of the antennas of the
    MIMO radios, the peak gain of the effective per-antenna
    pattern is 2.4dBi in 2.4GHz and 2.8dBi in 5GHz.

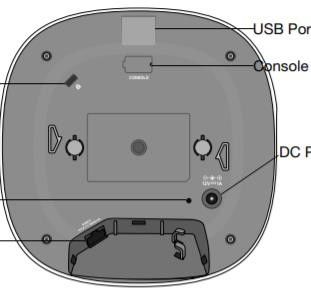

    OTHER INTERFACES

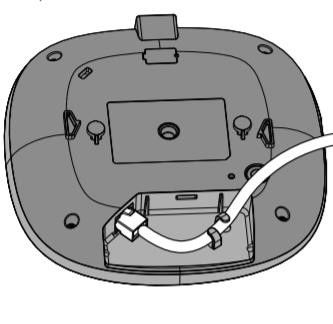

    • One 10/100/1000BASE-T Ethernet network interface (RJ-45)
    --Auto-sensing link speed and MDI/MDX
    --802.3az Energy Efficient Ethernet (EEE)
    • USB 2.0 host interface (Type A connector)
    • Bluetooth Low Energy (BLE) radio
    --Up to 3dBm transmit power (class 2) and -92dBm
    receive sensitivity
    --Integrated antenna with roughly 30 degrees downtilt
    and peak gain of 2.3dBi (AP-304/IAP-304) or 3.4dBi
    (AP-305/IAP-305)
    • Visual indicators (multi-color LEDs): for System and
    Radio status
    • Reset button: factory reset (during device power up)
    • Serial console interface (proprietary; optional adapter
    cable available)
    • Kensington security slot
    POWER SOURCES AND CONSUMPTION
    • The AP supports direct DC power and Power over
    Ethernet (PoE)
    • When both power sources are available, DC power takes
    priority over PoE
    • Power sources are sold separately
    • Direct DC source: 12Vdc nominal, +/- 5%
    --Interface accepts 2.1/5.5-mm center-positive circular
    plug with 9.5-mm length
    • Power over Ethernet (PoE): 48 Vdc (nominal)
    802.3af/802.3at compliant source
    --Unrestricted functionality with 802.3at PoE
    --When using IPM, the AP may enter power-save mode
    with reduced functionality when powered by an 802.3af
    PoE source (see details on Intelligent Power Monitoring
    elsewhere in this datasheet)
    --Without IPM, the USB port is disabled when the AP is
    powered by an 802.3af PoE source
    • Maximum (worst-case) power consumption: 13W (PoE) or
    12W (DC)
    --Excludes power consumed by external USB device (and
    internal overhead); this could add up to 6.5W (PoE) or
    5.5W (DC) for a 5W/1A USB device
    • Maximum (worst-case) power consumption in idle mode:
    3.7W (PoE) or 2.6W (DC).
  • RF PERFORMANCE TABLE
      Maximum transmit power (dBm)
    per transmit chain    		 Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz
    802.11b 2.4 GHz
    1Mbps 18.0 -95.0
    11Mbps 18.0 -88.0
    802.11g 2.4 GHz
    6Mbps 18.0 -92.0
    54Mbps 18.0 -74.0
    802.11n HT20 2.4 GHz
    MCS0/8 18.0 -91.0
    MCS/7/15 18.0 -71.0
    802.11n HT40 2.4 GHz
    MCS0/8 18.0 -88.0
    MCS7/15 18.0 -68.0
    802.11a 5GHz
    6Mbps 18.0 -92.0
    54Mbps 18.0 -74.0
    802.11n HT20 5GHz
    MCS0/8/16 18.0 -91.0
    MCS7/15/23 18.0 -71.0
    802.11n HT40 5GHz
    MCS0/8/16 18.0 -88.0
    MCS7/15/23 17.0 -68.0
    802.11AC VHT20 5GHz
    MCS0 18.0 -91.0
    MCS8 18.0 -67.0
    802.11AC VHT40 5GHz
    MCS0 18.0 -88.0
    MCS9 17.0 -63.0
    802.11AC VHT80 5GHz
    MCS0 18.0 -85.0
    MCS9 17.0 -58.0
