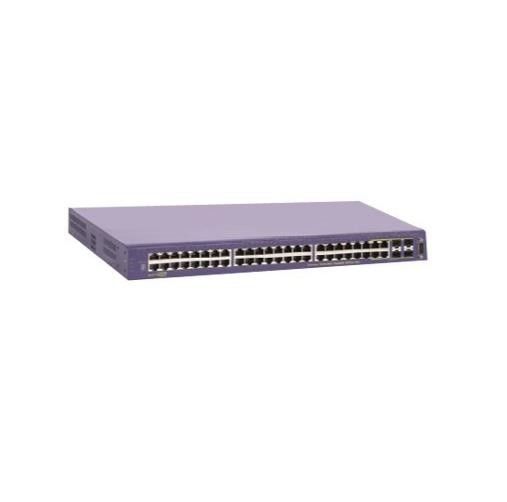

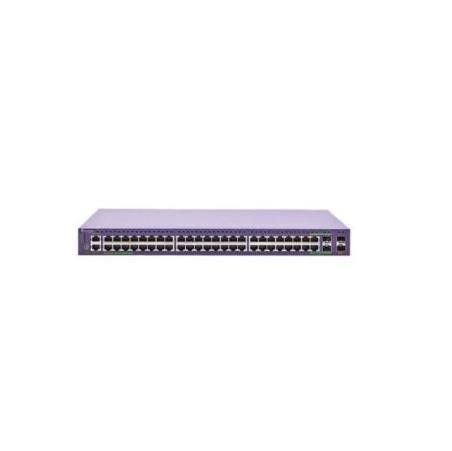

48ports X460 Extreme Network AVB Switch 48T 10 100 1000BASE -T Less Latency Mbps

ExtremeSwitching™ X460-G2 Series

16706(X460-G2-48t-10GE4-Base)

Scalable Fixed-Form Switches for Advanced Edge Access and Aggregation

The ExtremeSwitching X460-G2 seriesis based on Extreme Networks ExtremeXOS®, a highly-resilient OS that provides continuous uptime, managea bility and operational efficiency. Each switch offers the same high-performance, non-blocking hard ware technology. The X460-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+ support and comprehensive security, while extending the benefits of ExtremeXOS to edge and aggregation deployments. TheX460-G2 Series easy-to-use, yet powerful, management options include ExtremeCloud IQ and Extreme Management Center for either cloud-based or on-premise oversight and configuration. The X460-G2 also supports rolebased policies and Fabric Attach for secure, automated access to specific network resources and applications.

High-Performance Stacking

Up to eight X460-G2 switches can be stacked using three different methods of stacking: SummitStack, SummitStack-V or SummitStack-V160. These stacking options provide flexibility in terms of choice of cabling and optics technologies as well to adjusts tacking bandwidth based on the volume of traffic traversing the stacking links.

Role-Based Policy

TheX460-G2 supports role-based policies that can be centrally administered through the ExtremeControl policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent specific operational groups that may exist in an enterprise. Each defined role can then be granted individualized access to specific network services and applications and these access privileges remain associated with users as they move across both wired and wireless network access points.

Fabric Attach

Fabric Attach on the X460-G2 can be used to automate the connection to Extreme's campus-based Fabric Connect solution. Fabric Attach not only provides zero-touch edge provisioning, it also allows the X450-G2 to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure.

Management

The X460-G2 can be managed in a variety of ways.Simple onbox management functions are delivered by a web-based GUI, and a generic CLI is available for manual configuration. ExtremeCloud IQ along with ExtremeCloud IQ – Site Engine provide a comprehensive unified management capability with a consolidated view of users, devices and applications for wired and wireless networks. Zero-touch provisioning lets one quickly bring new X440-G2 switches online and a granular view of devices, ports and users enable efficient inventory and network topology management.

Specifications

• Network Ports : 48x 1 Gigabit Ethernet RJ-45

• Uplink Ports : 4x 10 Gigabit Ethernet SFP+

• Management Ports : 1x Serial (console port RJ-45), 1 x 10/100BASE-T out-of-band management, 1x USB port for external USB flash.

• Module Slots and Options : 1x VIM Card Module Slot (Ordered Separately) Options are - Summit X460-G2 VIM-2q, Summit X460-G2 VIM-2x, Summit X460-G2 VIM-2t, Summit X460-G2 VIM-2ss.

• Fan Modules AirFlow Direction : 1x Unpopulated Fan Module Slot. Options are - Summit X460-G2 fan module FB, Summit X460-G2 fan module BF.

• Power Supplies Included : 2x Unpopulated Power Supply Unit slots. Options are - 10951 Summit 715W AC PSU FB, 10952 Summit 715W AC PSU BF, Summit 300W AC PSU XT, Summit 300W AC PSU BF, Summit 300W +24V/-48V DC PSU, Summit 300W DC PSU BF.

• Switching Capacity : 336 Gbps

• Forwarding Rate : 250 Mpps

• MAC Address Table Size : 98,000

• Rack Mounts : Included (1-RU)

• Model Number : 16702

• Part Number : 16702, X460-G2-48t-10GE4

• Condition : Seller refurbished

Physical (cont.)

Specifications (cont.)

Front-Panel Ports (cont.)
