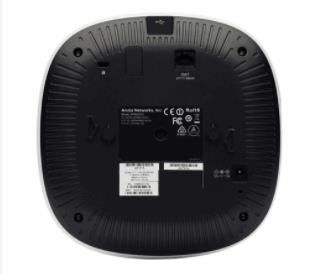

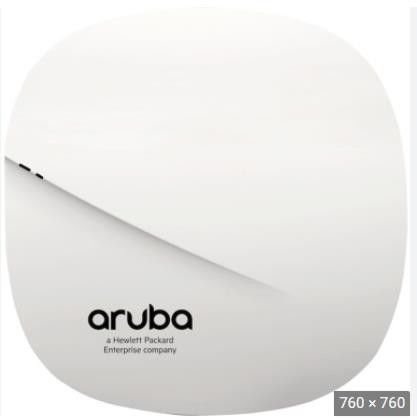

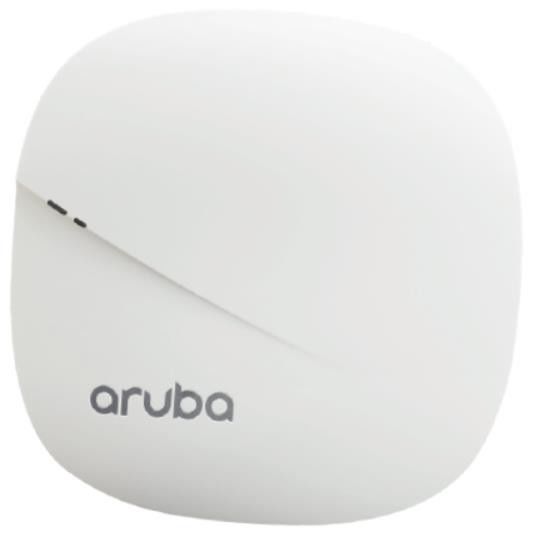

Instand Aruba Wireless Access Points Wifi 6 IAP-207(RW)

Instand Aruba Wireless Access Points Wifi 6 IAP-207(RW)

Instand Aruba Wireless Access Points

IAP-207 Aruba Wireless Access Points

IAP-207 aruba iap wifi 6

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Hospitality Access Points
Supported Frequency:
Dual Radio 5GHz And 2.4GHz
Dual Radio 2x2:2
Transmission Standard:
802.11 N/ac
190 Mm (W) X 180 Mm (D) X 70 Mm (H)
1 Year
Product Description
  • Brand new Aruba JX954A IAP-207(RW) Wireless Access Point AP JX954A in stock ready to ship
  • AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ac 2x2 MIMO
    • AP type: Indoor, dual radio, 5-GHz 802.11ac and 2.4-GHz 802.11n 2x2:2
    • Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
    • 2x2 MIMO with two spatial streams and up to 867 Mbps(80-MHz channel) or 400 Mbps (40-MHz channel) wireless data rate
    • Support for up to 255 associated client devices per radio,and up to 16 BSSIDs per radio
    • Available channels: Dependent on configured regulatory domain
    • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
    • Supported radio technologies:
    --802.11b: Direct-sequence spread-spectrum (DSSS)
    --802.11a/g/n/ac: Orthogonal frequency-division
    • Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
    • Maximum ratio combining (MRC) for improved receiver performance
    • Cyclic delay/shift diversity (CDD/CSD) for improveddownlink RF performance
    • Short guard interval for 20-MHz, 40-MHz and80-MHz channels
    • Space-time block coding (STBC) for increased range andimproved reception
    • Low-density parity check (LDPC) for high-efficiency errorcorrection and increased throughputTransmit beam-forming (TxBF) for increased reliability in signal delivery
    • Supported data rates (Mbps):
    --802.11b: 1, 2, 5.5, 11
    --802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    --802.11n: 6.5 to 300 (MCS0 to MCS15)
    --802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support:
    --PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE
    • Local: Three 10/100/1000BASE-T Ethernet (RJ-45, bottom)
    --Auto-sensing link speed and MDI/MDX
    --802.3az Energy Efficient Ethernet (EEE)
    --One port: PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE
    • Passive pass-through interface (two RJ-45, back and bottom)
    • USB 2.0 host interface (Type A connector)
    --Aruba Beacon USB radio module
    --3G/4G cellular modems
    --Device battery charging port
    --Capable of supplying up to 1A/5 watts of power to an attached device
    • DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length
    • Visual indicators (LEDs):
    --Power/system status
    --PoE-PSE status
    • Reset/LED control button (“paperclip access”)
    --Factory reset (when activated during device power up)
    --LED control: toggle off/normal
    • Serial console interface (custom, four-pin header)
    • Kensington security slot
    • Direct DC source: 48 Vdc nominal, +/- 5%
    • Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/at
    compliant source
    • Power sources sold separately. Recommended Aruba
    part numbers:
    --DC: AP-AC-48V36 (48V/36 watts)
    --PoE: PD-9001GR-AC (802.3at)
    • When both power sources are connected and active, DC power takes priority
    • Power modes:
    --DC: unrestricted mode (USB: 5 watts max, PoE-PSE: 15.4 watts max)
    --802.3at PoE: reduced mode (USB disabled when PoE-PSE enabled, PoE-PSE reduced power budget:
    10 watts max)
    --802.3af PoE: restricted (USB and PoE-PSE disabled)
    • Maximum (worst-case) power consumption:
    --DC: 12 watts max, plus 16.5 watts max for PoE-PSE and 5.5 watts max for USB
    --802.3at PoE: 13 watts max, plus 11.5 watts max for PoE-PSE or 6 watts max for USB
    --802.3af PoE: 13 watts max
    • Maximum (worst-case) power consumption in idle mode (excluding PoE-PSE, USB): 7.5 watts
      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz
    1Mbps 18.0 -90.0
    10Mbps 18.0 -90.0
    6Mbps 18.0 -90.0
    54Mbps 18.0 -75.0
    802.11n HT20
    MCS0/8 18.0 -90.0
    MCS/7/15 18.0 -71.0
    802.11n HT40
    MCS0/8 18.0 -87.0
    MCS7/15 18.0 -68.0
    5 GHz
    6Mbps 18.0 -90.0
    54Mbps 17.5 -75.0
    802.11n HT20
    MCS0/8 18.0 -90.0
    MCS7/15 17.0 -71.0
    802.11n HT40
    MCS0/8 18.0 -87.0
    MCS7/15 17.0 -68.0
    802.11ac VHT20
    MCS0 18.0 -90.0
    MCS8 16.0 -67.0
    802.11ac VHT40
    MCS0 18.0 -87.0
    MCS9 15.0 -65.0
    802.11ac VHT80
    MCS0 16.0 -84.0
    MCS9 15.0 -65.0
