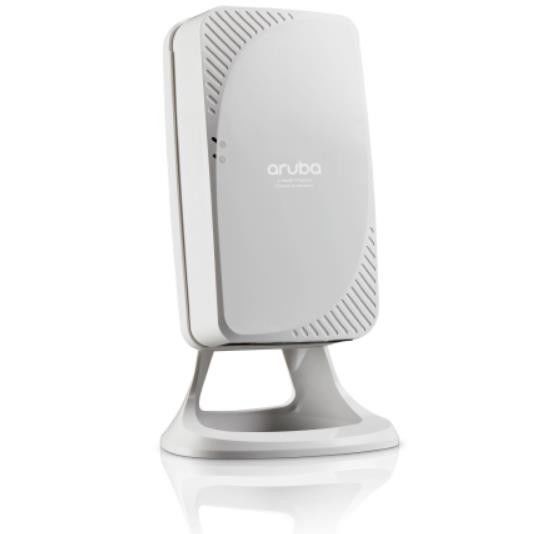

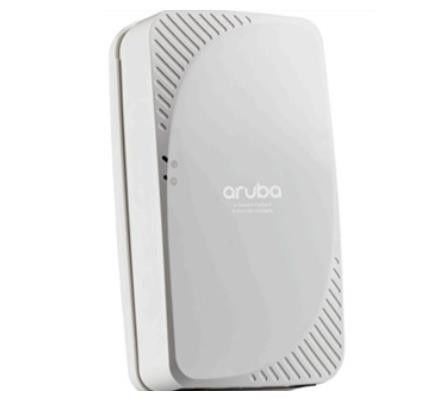

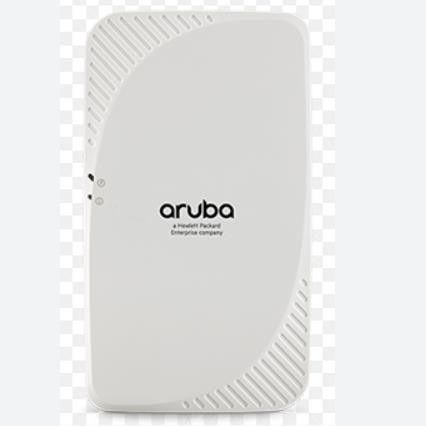

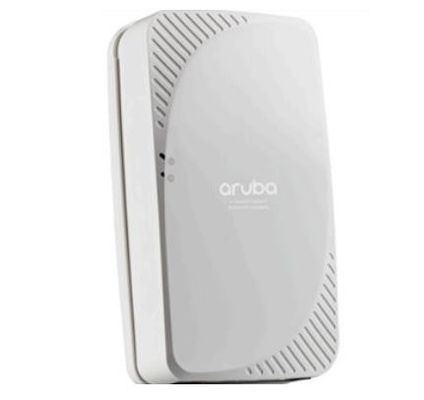

OEM AP-205H Hospitality Aruba Wifi6 AP Networks Radio Integrated Antenna

OEM AP-205H Hospitality Aruba Wifi6 AP Networks Radio Integrated Antenna

AP-205H aruba wifi6 ap

Integrated aruba wifi6 ap

AP-205H aruba networks ap

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Hospitality Access Points
Supported Frequency:
5GHz And 2.4GHz
Dual Radio
Transmission Standard:
802.11 Ac
86 Mm (W) X 40 Mm (D) X 150 Mm (H)
Product Description
  • AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ac 2x2 MIMO
    • AP type: Indoor, dual radio, 5-GHz 802.11ac and 2.4-GHz
    802.11n 2x2:2
    • Software-configurable dual radio supports 5 GHz (Radio 0)
    and 2.4 GHz (Radio 1)
    • 2x2 MIMO with two spatial streams and up to 867 Mbps
    (80-MHz channel) or 400 Mbps (40-MHz channel) wireless
    data rate
    • Support for up to 255 associated client devices per radio,
    and up to 16 BSSIDs per radio
    • Supported frequency bands (country-specific
    restrictions apply):
    --2.4000GHz to 2.4835 GHz
    --5.150 to 5.250 GHz
    --5.250 to 5.350 GHz
    --5.470 to 5.725 GHz
    --5.725 to 5.850 GHz
    • Available channels: Dependent on configured
    regulatory domain
    • Dynamic frequency selection (DFS) optimizes the use of
    available RF spectrum
    • Supported radio technologies:
    --802.11b: Direct-sequence spread-spectrum (DSSS)
    --802.11a/g/n/ac: Orthogonal frequency-division
    multiplexing (OFDM)
    • Supported modulation types:
    --802.11b: BPSK, QPSK, CCK
    --802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
    • Transmit power: Configurable in increments of 0.5 dBm
    • Maximum transmit power (antenna gain not included):
    --5-GHz band: +21 dBm (18 dBm per chain)
    --2.4-GHz band: +21 dBm (18 dBm per chain)
    --Power may be restricted to comply with local
    regulatory rules
    • Advanced Cellular Coexistence (ACC) minimizes
    interference from cellular networks
    • Maximum ratio combining (MRC) for improved
    receiver performance
    • Cyclic delay/shift diversity (CDD/CSD) for improved
    downlink RF performance
    • Short guard interval for 20-MHz, 40-MHz and
    80-MHz channels
    • Space-time block coding (STBC) for increased range and
    improved reception
    • Low-density parity check (LDPC) for high-efficiency error
    correction and increased throughput
    Transmit beam-forming (TxBF) for increased reliability in
    signal delivery
    • Supported data rates (Mbps):
    --802.11b: 1, 2, 5.5, 11
    --802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    --802.11n: 6.5 to 300 (MCS0 to MCS15)
    --802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support:
    VHT 20/40/80
    • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
    • Max IPsec encrypted wired throughput = 40Mbps
    • Four integrated semi-directional antennas for 2x2 MIMO
    with maximum antenna gain of 4.5 dBi in 2.4 GHz and
    5.0 dBi in 5 GHz. Built-in antennas are optimized for
    vertical orientation of the AP.
    • Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
    --Auto-sensing link speed and MDI/MDX
    --802.3az Energy Efficient Ethernet (EEE)
    --PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE
    • Local: Three 10/100/1000BASE-T Ethernet (RJ-45, bottom)
    --Auto-sensing link speed and MDI/MDX
    --802.3az Energy Efficient Ethernet (EEE)
    --One port: PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE
    • Passive pass-through interface (two RJ-45, back and bottom)

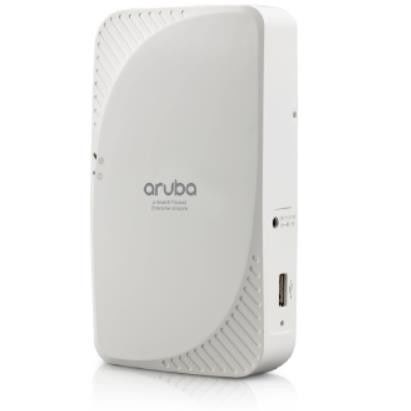

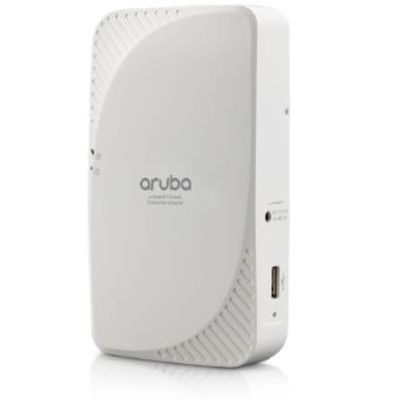

    • USB 2.0 host interface (Type A connector)
    --Aruba Beacon USB radio module
    --3G/4G cellular modems
    --Device battery charging port
    --Capable of supplying up to 1A/5 watts of power to an
    attached device
    • DC power interface, accepts 1.35/3.5-mm center-positive
    circular plug with 9.5-mm length
    • Visual indicators (LEDs):
    --Power/system status
    --PoE-PSE status
    • Reset/LED control button (“paperclip access”)
    --Factory reset (when activated during device power up)
    --LED control: toggle off/normal
    • Serial console interface (custom, four-pin header)
    • Kensington security slot
    • Direct DC source: 48 Vdc nominal, +/- 5%
    • Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/at
    compliant source
    • Power sources sold separately. Recommended Aruba
    part numbers:
    --DC: AP-AC-48V36 (48V/36 watts)
    --PoE: PD-9001GR-AC (802.3at)
    • When both power sources are connected and active, DC
    power takes priority
    • Power modes:
    --DC: unrestricted mode (USB: 5 watts max, PoE-PSE:
    15.4 watts max)
    --802.3at PoE: reduced mode (USB disabled when
    PoE-PSE enabled, PoE-PSE reduced power budget:
    10 watts max)
    --802.3af PoE: restricted (USB and PoE-PSE disabled)
    • Maximum (worst-case) power consumption:
    --DC: 12 watts max, plus 16.5 watts max for PoE-PSE and
    5.5 watts max for USB
    --802.3at PoE: 13 watts max, plus 11.5 watts max for
    PoE-PSE or 6 watts max for USB
    --802.3af PoE: 13 watts max
    • Maximum (worst-case) power consumption in idle mode
    (excluding PoE-PSE, USB): 7.5 watts

      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz
    1Mbps 18.0 -97.0
    10Mbps 18.0 -89.0
    6Mbps 18.0 -93.0
    54Mbps 15.5 -75.0
    802.11n HT20
    MCS0/8 18.0 -89.0
    MCS/7/15 14.0 -68.0
    802.11n HT40
    MCS0/8 18.0 -92.0
    MCS7/15 12.5 -68.0
    5 GHz
    6Mbps 16.0 -95.0
    54Mbps 15.0 -77.0
    802.11n HT20
    MCS0/8 16.0 -94.0
    MCS7/15 14.5 -71.0
    802.11n HT40
    MCS0/8 16.0 -94.0
    MCS7/15 14.5 -71.0
    802.11ac VHT20
    MCS0 16.0 -94.0
    MCS8 14.0 -69.0
    802.11ac VHT40
    MCS0 16.0 -89.0
    MCS9 14.0 -63.0
    802.11ac VHT80
    MCS0 16.0 -86.0
    MCS9 14.0 -60.0
