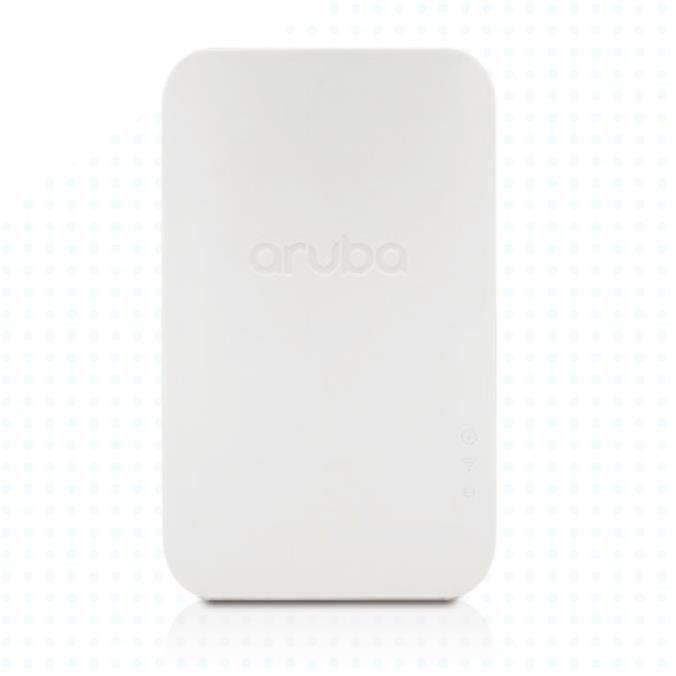

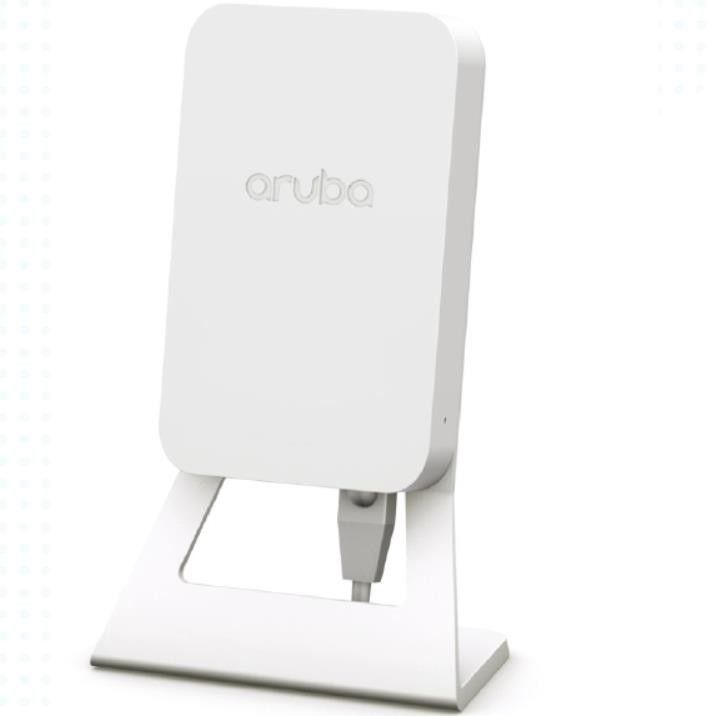

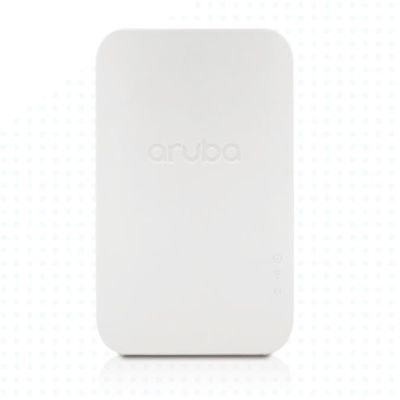

Flex Radio 2x2 Aruba Wireless Access Points AP203H

Flex Radio 2x2 Aruba Wireless Access Points AP203H

Flex Radio Aruba Wireless Access Points

AP203H Aruba Wireless Access Points

2x2 aruba ap203h

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Hospitality Access Points
Supported Frequency:
5GHz And 2.4GHz
Dual Radio
Transmission Standard:
802.11 Ac
115mm (W) X 47mm (D) X 165mm (H)
Product Description
  • AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ac 2x2 MIMO
    • AP type: Indoor, flexible radio:
    --5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n
    2x2 MIMO1, or
    --5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x11
    • Software-configurable radio supports 5GHz (Radio 0)
    and/or 2.4GHz (Radio 1)
    • 5GHz: Two spatial stream Single User (SU) MIMO for up
    to 867Mbps wireless data rate to individual 2x2 VHT80
    client devices
    • 2.4GHz: Two spatial stream Single User (SU) MIMO for up
    to 400Mbps wireless data rate to individual 2x2 VHT40
    client devices (300Mbps for HT40 802.11n client devices)
    • Support for up to 256 associated client devices per radio,
    and up to 16 BSSIDs per AP
    • Supported frequency bands (country-specific
    restrictions apply):
    --2.400 to 2.4835GHz
    --5.150 to 5.250GHz
    --5.250 to 5.350GHz
    --5.470 to 5.725GHz
    --5.725 to 5.850GHz
    • Available channels: Dependent on configured
    regulatory domain
    • Dynamic frequency selection (DFS) optimizes the use of
    available RF spectrum
    • Supported radio technologies:
    --802.11b: Direct-sequence spread-spectrum (DSSS)
    --802.11a/g/n/ac: Orthogonal frequency-division
    multiplexing (OFDM)
    • Supported modulation types:
    --802.11b: BPSK, QPSK, CCK
    --802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM,
    • Transmit power: Configurable in increments of 0.5 dBm
    • Maximum (conducted) transmit power (limited by local
    regulatory requirements):
    --2.4GHz band: +18 dBm per chain, +21 dBm aggregate
    (2x2 mode)
    --5GHz band: +16 dBm per chain, +19 dBm aggregate
    (2x2 mode)
    --Note: conducted transmit power levels exclude antenna
    gain. For total (EIRP) transmit power, add antenna gain
    • Maximum ratio combining (MRC) for improved
    receiver performance
    • Cyclic delay/shift diversity (CDD/CSD) for improved
    downlink RF performance
    • Short guard interval for 20MHz, 40MHz and
    80MHz channels
    • Space-time block coding (STBC) for increased range and
    improved reception
    • Low-density parity check (LDPC) for high-efficiency error
    correction and increased throughput
    • Transmit beam-forming (TxBF) for increased signal
    reliability and range (2x2 mode)
    • Supported data rates (Mbps):
    --802.11b: 1, 2, 5.5, 11
    --802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    --802.11n: 6.5 to 300 (MCS0 to MCS15)
    --802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2
    for VHT20/40/80)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support:
    VHT 20/40/80
    • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
    • Two integrated dual-band moderately directional
    antennas for 2x2 MIMO with maximum individual antenna
    gain of 4.9dBi in 2.4GHz and 6.0dBi in 5GHz. Built-in
    antennas are optimized for vertical orientation of the AP.
    The horizontal beamwidth is roughly 120 degrees.
    --Combining the patterns of each of the antennas of
    the MIMO radios (in 2x2 mode), the peak gain of the
    effective per-antenna pattern is 2.3dBi in 2.4GHz and
    3.4dBi in 5GHz.
      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz
    1Mbps 18.0 -92.0
    10Mbps 18.0 -88.0
    6Mbps 18.0 -88.0
    54Mbps 18.0 -73.0
    802.11n HT20
    MCS0/8 17.0 -88.0
    MCS/7/15 17.0 -71.0
    802.11n HT40
    MCS0/8 17.0 -85.0
    MCS7/15 17.0 -68.0
    5 GHz
    6Mbps 16.0 -88.0
    54Mbps 16.0 -72.0
    802.11n HT20
    MCS0/8 16.0 -88.0
    MCS7/15 15.0 -70.0
    802.11n HT40
    MCS0/8 16.0 -85.0
    MCS7/15 16.0 -67.0
    802.11ac VHT20
    MCS0 16.0 -88.0
    MCS8 15.0 -65.0
    802.11ac VHT40
    MCS0 16.0 -85.0
    MCS9 13.0 -62.0
    802.11ac VHT80
    MCS0 16.0 -82.0
    MCS9 13.0 -59.0
