16530 Extreme Switch X440 G2 Extreme Networks AVB 12T 10GE4

16530 Extreme Switch X440 G2 Extreme Networks AVB 12T 10GE4

extreme switch x440 16530

10GE4 extreme switch x440

10GE4 extreme networks avb

Brand Name:

Extreme

Model Number:

16530 X440-G2-12t-10GE4 AVB

CONTACT US

Request A Quote
Product Details
Condition:
New And Original
Availability:
Stock
Warranty Time:
1 Year
Lead Time:
According To Stock
Maximum 10/100/1000 Base-T Ports:
12
Maximum Active 1Gb SFP Ports:
4
Maximum 10Gb SFP+ Ports:
4 Via License
Aggregated Switch Bandwidth:
104 GBPS
Product Description

Scalable Cost-Effective Edge Switch with ExtremeXOS Operating System

Product Overview

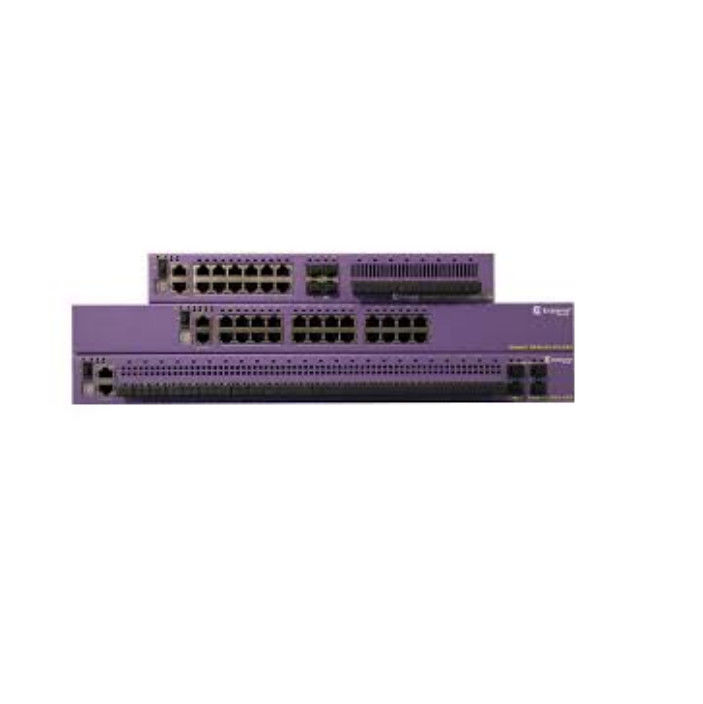

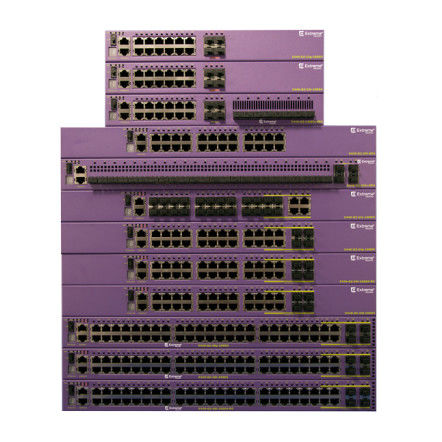

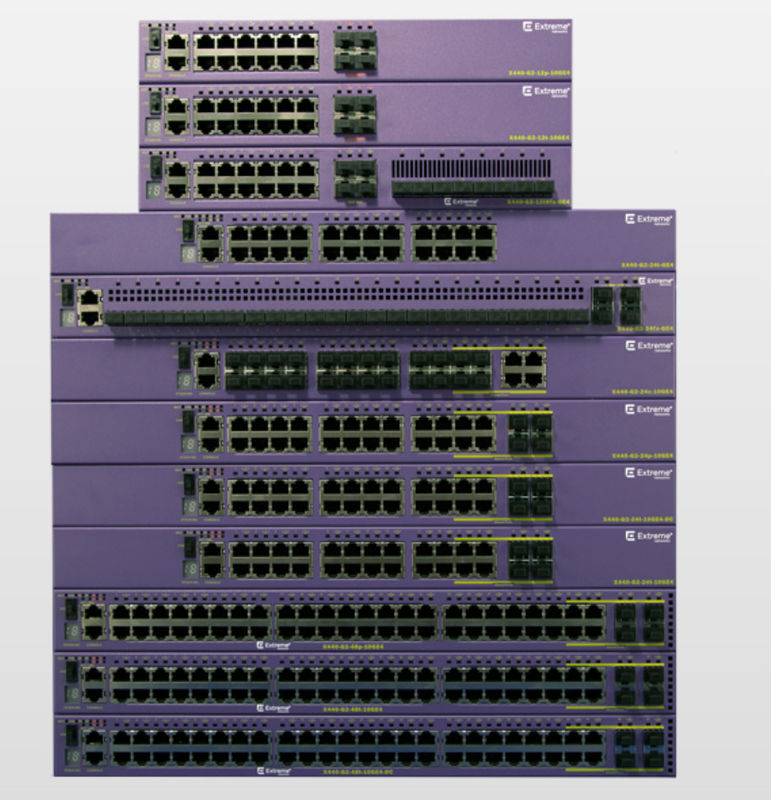

The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+ support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge. The X440-G2 Series easy-to-use, yet powerful, management options include ExtremeCloud™ IQ, Extreme Management Center and Extreme Cloud Appliance for either cloud-based or on-premise oversight and configuration. The X440-G2 also supports role-based policies and Fabric Attach for secure, automated access to specific network resources and applications.



Intelligent Switching

The X440-G2 Series supports sophisticated and intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing. They also provide rolebased policy capabilities, bidirectional Access Control Lists, along with granular ingress/egress bandwidth control. Altogether, these enable finegrained control over traffic flows, as well as controlled access to specific network services and applications.



All X440-G2 base models come equipped with 4 upgradeable 1Gb ports, resident on either the faceplate or rear panel of each model. These 1Gb ports can be upgraded to 10Gb Ethernet via a simple software license. This gives administrators the option to increase switch uplink speeds without replacing the entire switch.



Highlights

• Scalable cost-effective edge switches

• 12, 24, and 48-port Gigabit Ethernet connectivity

• 4 x 1Gb uplinks upgradeable to 10Gb via software license

• PoE/PoE+ models for powered connection of edge devices

• SFP and 100Base-FX fiber model options

• AC and DC Power options • Non-blocking, wire-speed design

• Up to 8-unit 40Gb stacking via SummitStack-V

• Role-based policy and Fabric Attach for secure, automated access to network applications or services





X440-G2-12p-10GE4

• 12 x 10/100/1000BASE-T PoE-Plus

• 4 x 1GBASE-X SFP (unpopulated front-panel ports) upgradeable to 10Gb Ethernet via licensing

• 1 x Serial (console port RJ-45) with RTS/CTS modem control

• 1 x 10/100/1000BASE-T out-of-band management port

• 2x7 RPS port

X440-G2-12t-10GE4

• 12 x 10/100/1000BASE-T (RJ-45)

• 4 x 1GBASE-X SFP (unpopulated front-panel ports) upgradeable to 10Gb Ethernet via licensing

• 1 x Serial (console port RJ-45) with RTS/CTS modem control

• 1 x 10/100/1000BASE-T out-of-band management port • Coaxial Barrel Connector RPS port
