Name: 10km Single Mode Fiber 10G SFP Transceiver Module for Data Center Communication Network Hot Pluggable Compliance SFF-8431
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-PII221L-xD
Availability: InStock

Home > products > Starsurge >

10km Single Mode Fiber 10G SFP Transceiver Module for Data Center Communication Network Hot Pluggable Compliance SFF-8431

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-PII221L-xD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Network

Warranty Time:

1 Year

Network:

10G Ethernet

Port:

SFP+

Power Source:

Low Power Consumption

Connector Type:

LC Duplex

Fiber Type:

Single Mode Fiber

Encryption:

Firmware Encryption

Compliance:

SFF-8431

Application:

Data Center Communication Network Industrial Automation

EMI Performance:

All-metal Housing For Superior EMI Performance

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

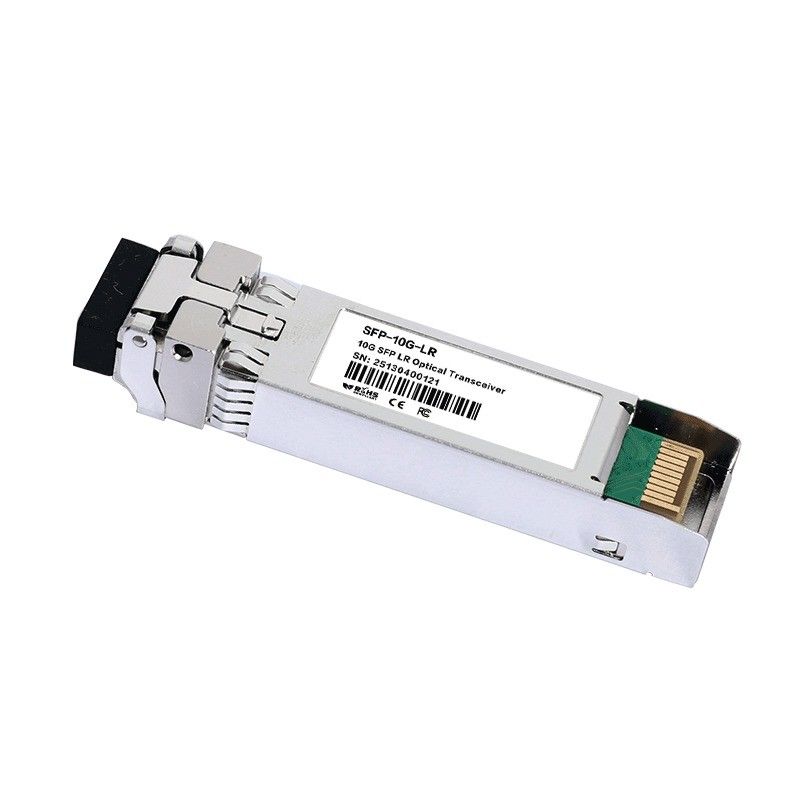

10Gb/s 10km SFP+ Optical Transceiver Module CC-PII221L-xD

This 1310nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for linklength 10km.

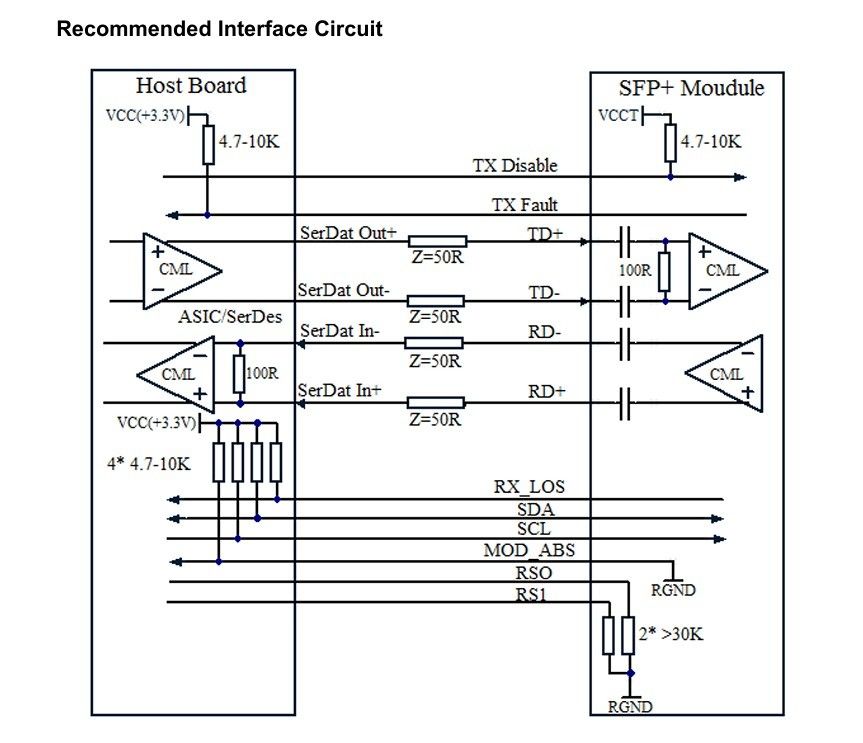

The SFP+ 10km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

Standards

 IEEE 802.3ae 10GBASE-LR/LW

 SFF-8431

 SFF-8472

Applications

 10GBASE-LR/LW

 Other optical links

Features

 Hot Pluggable

 LC Duplex optical interface

 1310nm DFB transmitter, PIN receiver

 Operating case temperature: Commercial:0 to 70 °C Industrial:-40 to 85 °C

 Low power consumption

 Applicable for 10km SMF connection

 All-metal housing for superior EMI performance

 Advanced firmware allow customer system encryption

 Information to be stored in transceiver

 Cost effective SFP+ solution, enables higher port densities and greater bandwidth

 RoHS compliant (lead free)

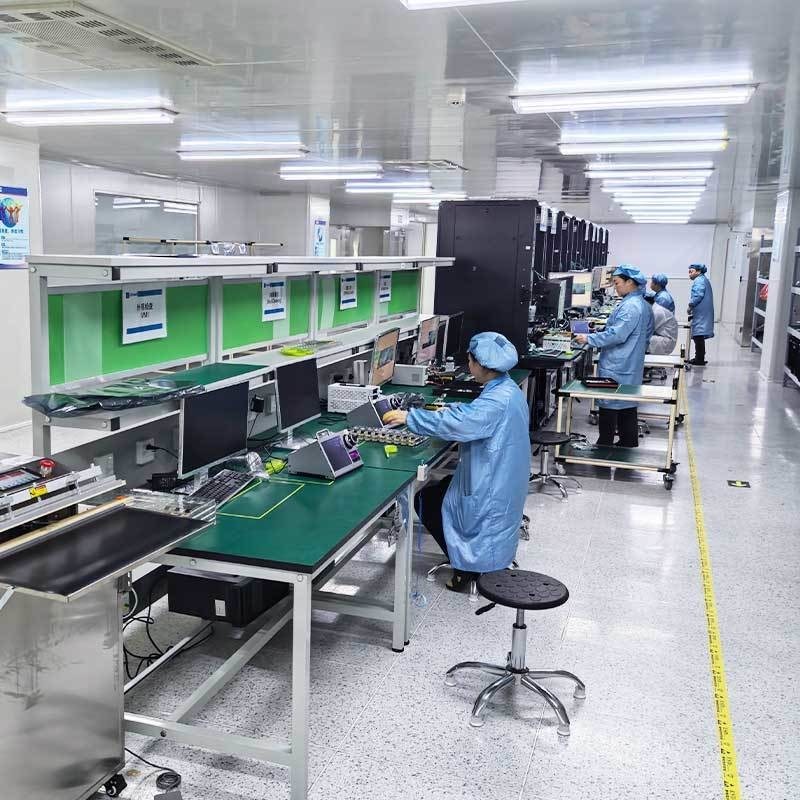

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!
