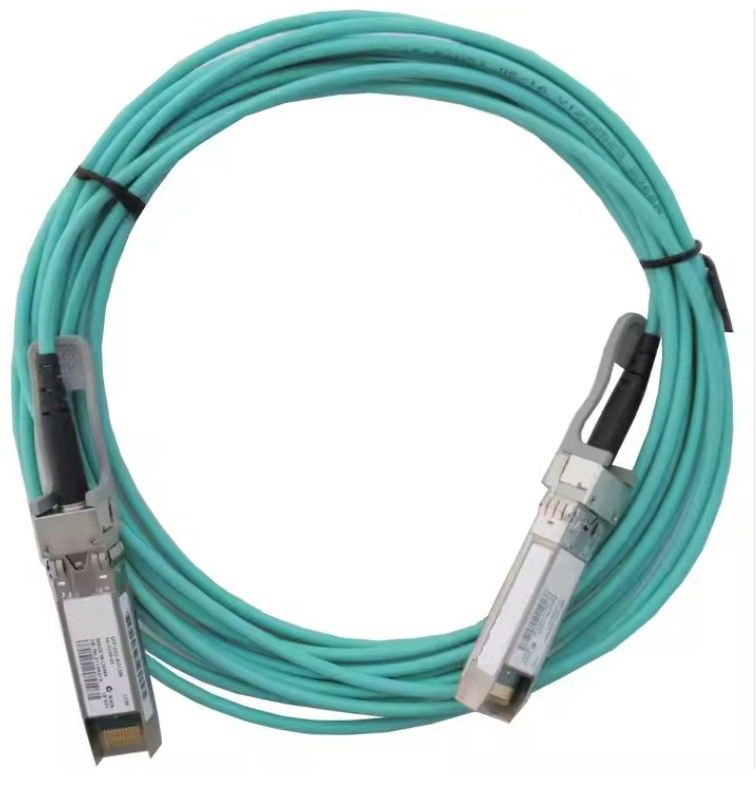

Name: OM3/OM4 Multimode Fiber 25G SFP28 AOC Active Optical Cable with 850nm Frequency Range and Easy Plug-and-play Installation
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-PMMAOCX-SD
Availability: InStock

Home > products > Starsurge >

OM3/OM4 Multimode Fiber 25G SFP28 AOC Active Optical Cable with 850nm Frequency Range and Easy Plug-and-play Installation

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS Compliant

Model Number:

CC-PMMAOCX-SD

Request A Quote

Product Details

Features:

Hot-pluggable, Internal CDR

Type:

Active Optical Cable

Use:

Network

Warranty Time:

1 Year

Network:

Ethernet, Fiber Channel Network, Infiniband Network

Port:

SFP28 Port

Power Source:

DC 3.3V

Connector Type:

SFP28

Power - Minimum Receivable:

<1.0W

Frequency Range:

850nm

Transmission Rate:

25.78125Gb/s

Fiber Type:

OM3, OM4

Operating Temperature:

0 ~ +70℃

Applications:

Data Center, 25GBASE-SR, Infiniband EDR, 32G Fiber Channel

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

Features

Hot-pluggable SFP28 form factor

Supports 25.78125Gb/s bit rate

Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF 850nm VCSEL laser and PIN photo detector

Internal CDR on both Transmitter and Receiver channel

Operating environment temperature range: 0 ~ +70℃

Single 3.3V power supply

Low power dissipation: ＜1.0W

Applications

Data Center 25GBASE-SR Ethernet Infiniband EDR Applications 32G Fiber Channel Applications

Standards

Compliant with SFF-8024,SFF-8431

Compliant with IEEE802.3by

Compliant with SFF-8472

RoHS complaint
