Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate

Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-OSFP08DR8-12D

CONTACT US

Request A Quote
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate
Product Details
Features:
Hotpluggable Dual MTP8APC Optical Receptacle Connector
Type:
Optical Transceiver
Use:
Data Center High-Performance Computing (HPC)
Warranty Time:
1 Year
Network:
Data Center Ethernet Network, High - Performance I
Port:
2x30 OSFP Electrical Interfaces
Power Source:
3.3V Power Supply
Connector Type:
Dual MTP8APC Optical Receptacle Connectors
Frequency Range:
1304.5 - 1317.5nm
Data Rate:
53GBaud
Case Operating Temperature:
Commercial: 0 To 70°C
Fiber Type:
SMF Fiber
Custom Attribute:
OSFP Octal Small Form Factor Pluggable Module R5.05
RELATED PRODUCTS
Good price 200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector online video

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price
Good price Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link online video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price
Good price Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC online video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price
Good price 400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects online video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price
CONTACT US
86-186-1839-4729
Elva@cnstarsurge.com
Contact Now
Product Description
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 0
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 1

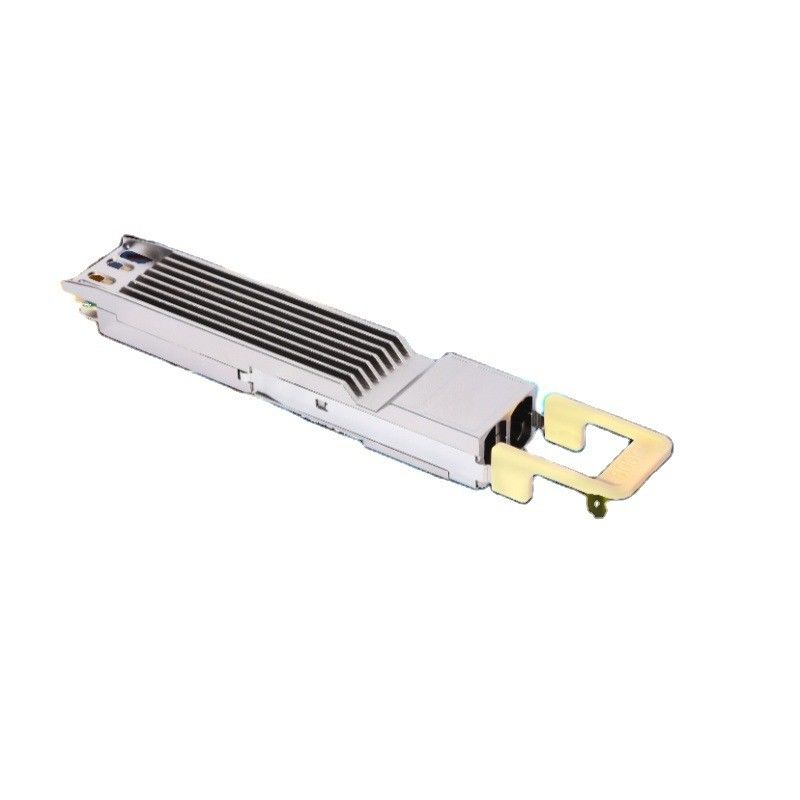

800G OSFP DR8 Transceiver CC-OSFP08DR8-12D
TheCC-OSFP08DR8-12 Disan 8 x100Gbps optical transceivers in an OSFP housing.It is designed to support the next generation 800Gbps applica- tion used inside the Datacenter. The module is configured with 8 lanes optics which is using the 53GBaud 1310nm EML transmitters the 53GBaud high sensitivity PIN PD receivers. It is compliant with the of OSFP MSAspecifications. It operates at 53.125GBaudupto500moversingle-modefiber.
The modulecomplywith Common Management Interface Specification for8/16xPluggable Transceivers,R5.2.
Applications

 Highperformancecomputing interconnect
 DataCenters
 800GDR8, 2x400G DR4, 8x100G DR1

Features

 OSFPPackage
 3.3Vpowersupply
 Dual MTP8APCoptical receptacle connector
 Hotpluggable
 2x30OSFPElectrical Interface
 Referto OSFP Octal SmallFrom Factor Pluggable Module R5.05
 Complywith Common ManagementInterface Specification for 8-16x Plug- gable Transceivers,R5.2
 SMFFiber

Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 2
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 3
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 4
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 5
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 6
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 7
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 8
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 9
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 10
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 11
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 12
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 13
Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 14
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 15
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 16
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 17
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 18
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 19
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 20
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 21
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 22
Computing Interconnect 800Gbps OSFP Optical Transceiver with Hotpluggable Dual MTP8APC Connector and High Data Rate 23
Q1.What can you buy from us?
Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
We supply 12 months warranty time.
Q4.How about the Shipping Method?
We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7.Price questions
The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
