Ruckus Network Switch Icx 8200-24p Withoriginal Genuine Product
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 3849 |
|
Detail Information |
|||
| Model NO.: | ICX 8200-24P | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Condition: | Nib Original |
| Part Number: | 24p Ports Support Poe | Transport Package: | Primary Packaging |
| Specification: | 44X44X28 Cm | Trademark: | Ruckus |
| Origin: | China | Production Capacity: | 50 |
Product Description
RUCKUS ICX 8200
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless frst and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an afordable price without compromising performance and reliability. The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the fexibility, cost- efectiveness, and "pay as you grow" scalability of stackable solution.

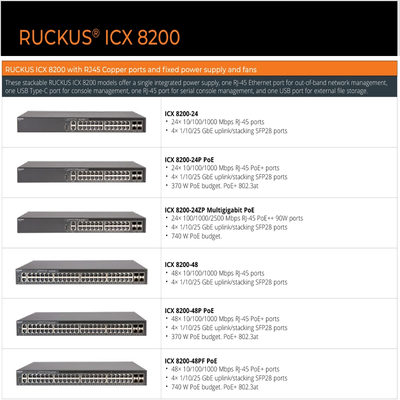

RUCKUS ICX 8200 with RJ45 Copper ports and fxed power supply and fans | |
These stackable RUCKUS ICX 8200 models offer a single integrated power supply, one RJ-45 Ethernet port for out-of-band network management, one USB Type-C port for console management, one RJ-45 port for serial console management, and one USB port for external file storage. | |
ICX 8200-24 | ·24× 10/100/1000 Mbps RJ-45 ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports |
ICX 8200-24P PoE | ·24× 10/100/1000 Mbps RJ-45 PoE+ ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports ·370 W PoE budget. PoE+ 802.3at |
ICX 8200-24ZP Multigigabit PoE | ·24× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports ·740 W PoE budget. |
ICX 8200-48 | ·48× 10/100/1000 Mbps RJ-45 ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports |
ICX 8200-48P PoE | ·48× 10/100/1000 Mbps RJ-45 PoE+ ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports ·370 W PoE budget. PoE+ 802.3at |
ICX 8200-48PF PoE | ·48× 10/100/1000 Mbps RJ-45 PoE+ ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports ·740 W PoE budget. PoE+ 802.3at |
RUCKUS ICX 8200 with hot-swap power supplies and fans | |
These stackable RUCKUS ICX 8200 models offers 2 slots for redundant hot swappable load sharing power supplies, 2 slots for hot swappable fans, one RJ-45 Ethernet port for out-of-band network management, one USB Type-C port for console management, one RJ-45 port for serial console
management, and one USB port for external file storage. | |
ICX 8200-48PF2 PoE | ·48× 10/100/1000 Mbps RJ-45 PoE+ ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports ·1440 W PoE budget with two PSUs (740W with one PSU) ·Dual hot swappable power supplies and fans |
ICX 8200-48ZP2 Multigigabit PoE | ·32× 10/100/1000 Mbps RJ-45 PoE+ ports ·16× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports ·4× 1/10/25 GbE uplink/stacking SFP28 ports ·1480 W PoE budget with two PSUs (740W with one PSU) ·Dual hot swappable power supplies and fans |
Gigabit
Compact | Gigabit
Non-PoE | Gigabit
PoE | |||||
RUCKUS ICX 8200-C08PF | RUCKUS ICX
8200-24 | RUCKUS ICX
8200-48 | RUCKUS ICX
8200-24P | RUCKUS ICX
8200-48P | RUCKUS ICX
8200-48PF | RUCKUS ICX
8200-48PF2 | |
Feature | |||||||
Switching capacity
(data rate, full duplex) | 56 Gbps | 248 Gbps | 296 Gbps | 248 Gbps | 296 Gbps | 296 Gbps | 296 Gbps |
Forwarding capacity (data rate, full duplex) | 42 Mpps | 184 Mpps | 220 Mpps | 184 Mpps | 220 Mpps | 220 Mpps | 220 Mpps |
10/100/1000 Mbps RJ45 | 8 | 24 | 48 | 24 | 48 | 48 | 48 |
100/1000 Mbps SFP uplinks | |||||||
1/10 Gbps SFP/SFP+ uplinks | 2 | ||||||
1/10/25 Gbps SFP/SFP+/SFP28 uplinks | 4 | 4 | 4 | 4 | 4 | 4 | |
PoE/PoE+ 802.3at ports | 8 | 24 | 48 | 48 | 48 | ||
Dual hot-swap power supplies and fan modules | Yes | ||||||
Max PoE Class 3 ports(15.4 W per port) | 8 | 24 | 48 | 48 | 48 | ||
Max PoE+ Class 4 ports (30 W per port) | 4 | 12 | 12 | 24 | 48 (2 PSU) | ||
Energy Efficient Ethernet (802.3az) | Yes | ||||||
Base IPv4/v6 Layer 3 routing (static routing, RIP) | Yes | ||||||
Advanced IPv4/v6 Layer 3
(OSPF, VRRP, VRF, GRE, PIM, PBR) | With License | ||||||
Aggregated stacking bandwidth (data rate, full duplex) | 240 Gbps | 1.2 Tbps | |||||
Stacking density
(maximum switches in a stack) | 12 | ||||||
Stacking ports
(maximum ports usable for stacking) | Up to
2×10 GbE SFP+ | Up to
4×25 GbE SFP28 | |||||
Maximum stacking distance (distance between stacked switches) | 10 km | ||||||
Multigigabit Ethernet
PoE++ | Fiber Ethernet | |||||
RUCKUS ICX 8200-C08ZP | RUCKUS ICX
8200-24ZP | RUCKUS ICX
8200-48ZP2 | RUCKUS ICX
8200-24F | RUCKUS ICX
8200-24FX | RUCKUS ICX
8200-48F | |
Features | ||||||
Switching capacity (data rate, full duplex) | 200 Gbps | 320 Gbps | 344 Gbps | 248 Gbps | 720 Gbps | 296 Gbps |
Forwarding capacity (data rate, full duplex) | 148 Mpps | 237 Mpps | 254 Mpps | 184 Mpps | 533 Mpps | 219 Mpps |
10/100/1000 Mbps RJ45 | 32 | |||||
100/1000 Mbps/2.5 Gbps RJ45 downlinks (full duplex only) | 4 | 24 | 16 | |||
100Mbps/1/2.5/5/10 Gbps RJ45 downlinks | 4 | |||||
100/1000 Mbps SFP | 24 | 48 | ||||
1/10 Gbps SFP+ | 16 | |||||
1/10/25 Gbps SFP/SFP+/SFP28 uplinks | 2 | 4 | 4 | 4 | 8 | 4 |
PoE/PoE+ 802.3at ports | 32 | |||||
PoH / PoE / PoE+ / PoE++ 802.3bt ports | 8 | 24 | 16 | |||
Dual hot-swap power supplies and fan modules | Yes | |||||
Maximum PoE Class 3 ports (15.4 W per port) | 8 | 24 | 48 | |||
Maximum PoE+ Class 4 ports (30 W per port) | 8 | 24 | 24 (1 PSU)
48 (2 PSU) | |||
Maximum PoE++ Class 6 ports (60 W per port) | 4 | 12 | 12 (1PSU)
16 (2 PSU) | |||
Maximum PoE++ Class 8 Ports (90 W per port) | 2 | 8 | 8(1PSU)
16 (2PSU | |||
Energy Efficient Ethernet (802.3az) | Yes | |||||
Base IPv4/v6 Layer 3 routing (static routing, RIP) | Yes | |||||
