Mellanox AOC high-speed low-latency MFS1S00-H020E AOC Splitter Cable Ethernet 200GbE to 2x100GbE 5m
MFS1S00-H020E mellanox AOC cable Product Description

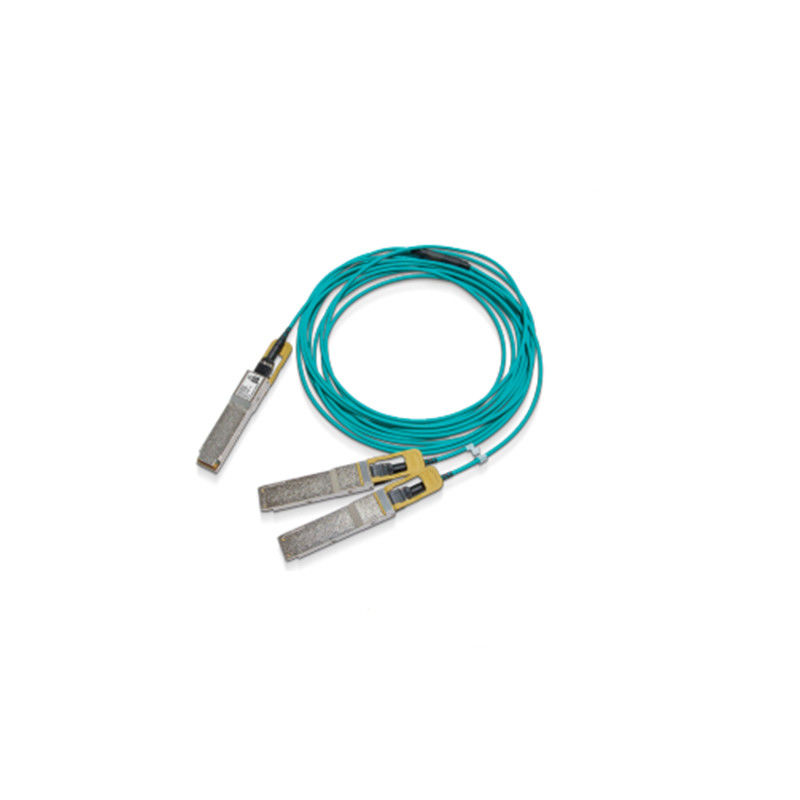

MFS1S00-H020E mellanox AOC cable is compliant with SFF-8665 for the QSFP56 pluggable solution. MFS1S00-H020E mellanox AOC cable provides connectivity between system units with a 200GbE connector on one side and two separate 100GbE connectors on the other side, such as a switch and two servers. MFS1S00-H020E mellanox AOC cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends. Each QSFP56 end of the cable contains an EEPROM providing product and status monitoring information, which can be read by the host system.
MFS1S00-H020Eis a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems.
The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers.
Since the AOC is hot pluggable, it is easy to install and replace.
MFS1S00-H020Ehas a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.
MFS1S00-H020Effers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates.
's unique quality cable solutions provide power-efficient connectivity for data center interconnects.
It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
MFS1S00-H020EIs a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) and 200GbE systems.
The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
The MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.
The MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates.
MFS1S00-H020E mellanox AOC cable parameter form
| MFS1S00-H020E Item |
MFS1S00-H020E features |
| Name |

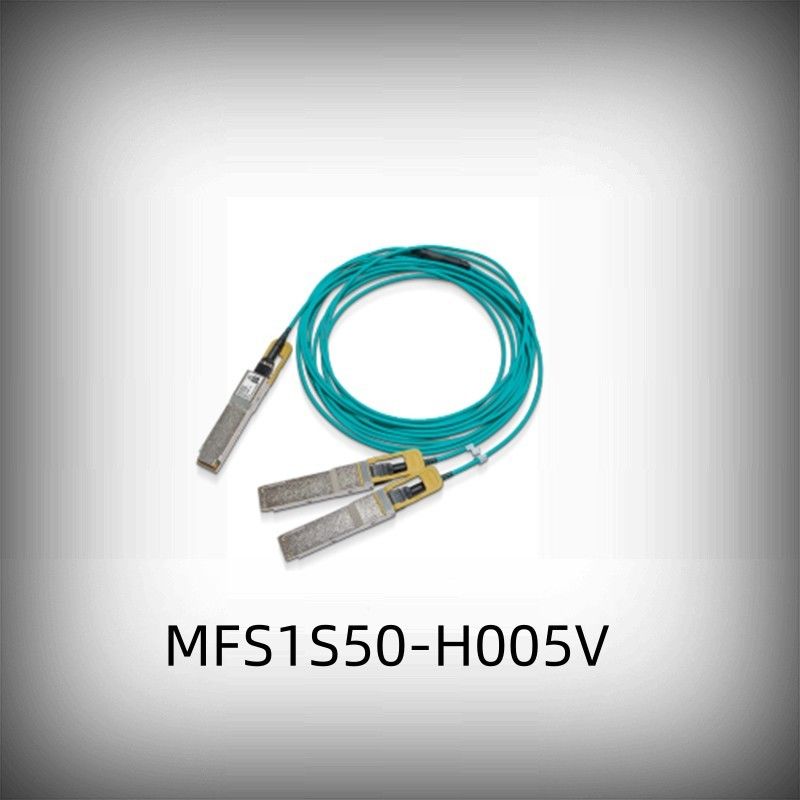

MFS1S50-H005V mellanox AOC cable |
| Cable Type |
Active Optical Cable |
| Cable Length |
5 meters |
| Data Rate |
Up to 200Gbps |
| Connector Type |
QSFP56 |
| Supported Protocols |
InfiniBand EDR, HDR, and NDR; Ethernet 100GbE and 25GbE |
| Power Consumption |
< 1.5W per cable |
| Operating Temperature |
0°C to 70°C |
| model |
description |
| MFS1S00-H020E |
Mellanox AOC DAC cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020E |
mellanox breakout cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020E |
mellanox passive copper cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020E |
mellanox infiniband cables 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020E |
console cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
